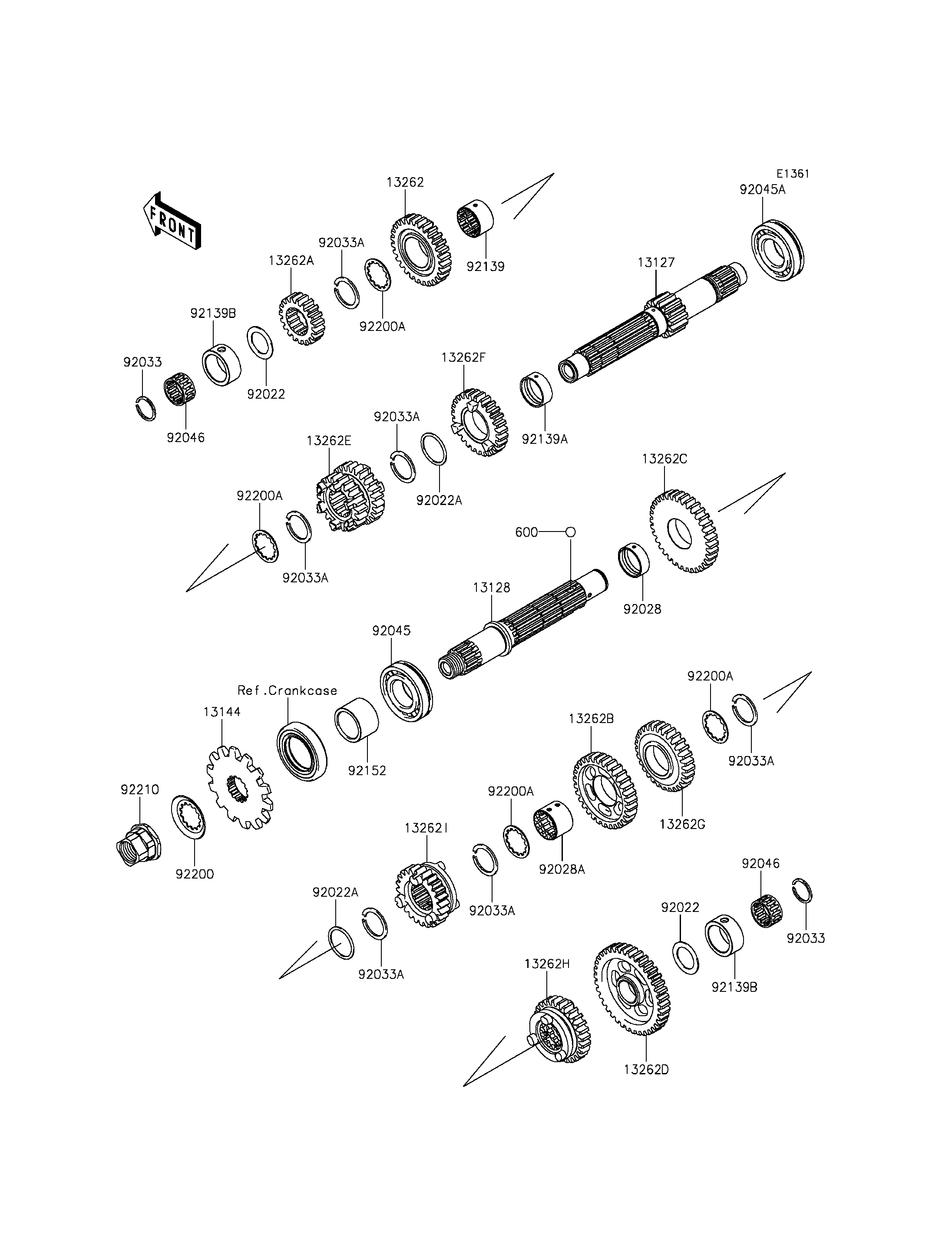

2015 NINJA® 300 ABS - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
13262I
92022
92022
92022A
92022A
92028
92028A
92033
92033
92033A
92033A
92033A
92033A
92033A
92033A
92045
92045A
92046
92046
92139
92139A
92139B
92139B
92152
92200
92200A
92200A
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32 600 600A0500 3
SHAFT-TRANSMISSION INPUT 13127 13127-0656 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0685 1
SPROCKET-OUTPUT,14T 13144 13144-0566 1
GEAR,INPUT TOP,28T 13262 13262-0920 1
GEAR,INPUT 2ND,19T 13262A 13262-1091 1
GEAR,OUTPUT 3RD,31T 13262B 13262-1092 1
GEAR,OUTPUT 2ND,34T 13262C 13262-1093 1
GEAR,OUTPUT LOW,38T 13262D 13262-1094 1
GEAR,INPUT 3RD&4TH,22T&25T 13262E 13262-1098 1
GEAR,INPUT 5TH,27T 13262F 13262-1099 1
GEAR,OUTPUT 4TH,29T 13262G 13262-1100 1
GEAR,OUTPUT 5TH,27T 13262H 13262-1101 1
GEAR,OUTPUT TOP,24T 13262I 13262-1102 1
WASHER,20.5X30X1,STEEL 92022 92022-112 2
WASHER,25.3X30X1 92022A 92022-161 2
BUSHING,9.4X25X28 92028 92028-1564 1
BUSHING,OUTPUT 3RD&4TH GEAR 92028A 92028-1858 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 6
BEARING-BALL,6TM-6205NX3 92045 92045-0735 1
BEARING-BALL,#6205NX3 92045A 92045-1013 1
BEARING-NEEDLE,20X25X12.8 92046 92046-0607 2
BUSHING,26X28X16.6 92139 92139-0781 1
BUSHING,25X28X10.4 92139A 92139-0793 1
BUSHING,25X33X14 92139B 92139-0810 2
COLLAR,25X32X21.6 92152 92152-1860 1
WASHER 92200 92200-0851 1
WASHER 92200A 92200-1389 4
NUT,M20 92210 92210-0605 1
