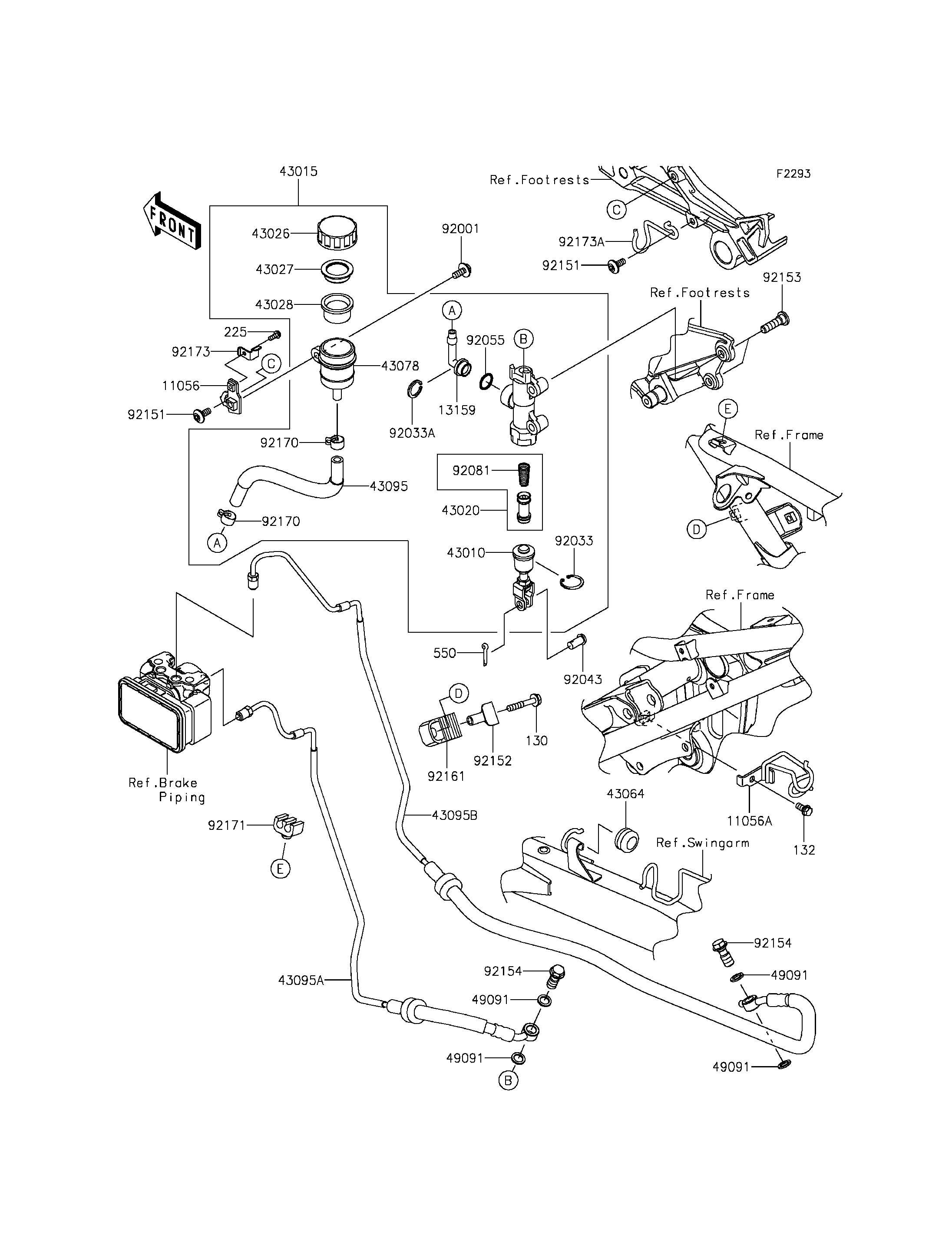

2015 NINJA® 300 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
132
225
550
11056
11056A
13159
43010
43015
43020
43026
43027
43028
43064
43078
43095
43095A
43095B
49091
49091
49091
49091
92001
92033
92033A
92043
92055
92081
92151
92151
92152
92153
92154
92154
92161
92170
92170
92171
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X35 130 130BB0635 1
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET 11056 11056-2306 1
BRACKET,BRAKE HOSE 11056A 11056-2311 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0010 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0612 1
PISTON-COMP-BRAKE 43020 43020-0023 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
GROMMET,HOSE CLAMP 43064 43064-006 1
RESERVOIR 43078 43078-0040 1
HOSE-BRAKE 43095 43095-0765 1
HOSE-BRAKE,RR M/CYLINDER 43095A 43095-0847 1
HOSE-BRAKE,RR CALIPER 43095B 43095-0848 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,W/P,6X16 92001 92001-1860 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR 92152 92152-0409 1
BOLT,SOCKET,8X30 92153 92153-1624 2
BOLT,OIL,L=23 92154 92154-0226 2
DAMPER,BRAKE PIPE 92161 92161-0347 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92171 92171-0818 1
CLAMP,RESERVOIR TANK CAP 92173 92173-0028 1
CLAMP 92173A 92173-0936 1
