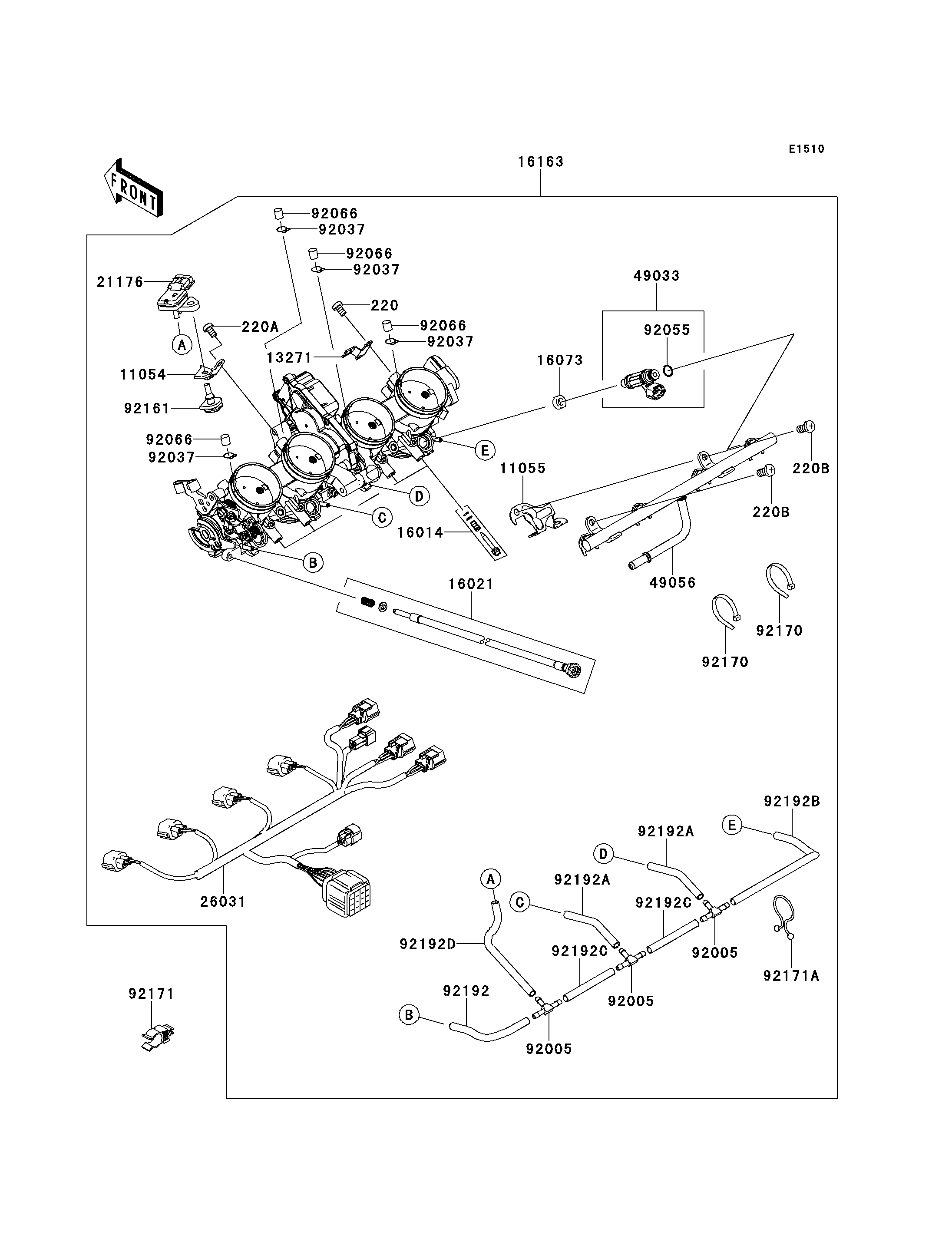

Parts Diagrams |
220
220A
220B
220B
11054
11055
13271
16014
16021
16073
16163
21176
26031
49033
49056
92005
92005
92005
92037
92037
92037
92037
92055
92066
92066
92066
92066
92161
92170
92170
92171
92171A
92192
92192A
92192A
92192B
92192C
92192C
92192D
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS,5X6 | 220 | 220AA0506 | 2 | ||
SCREW-PAN-CROS,5X8 | 220A | 220AA0508 | 2 | ||
SCREW-PAN-CROS,6X12 | 220B | 220AA0612 | 2 | ||
BRACKET | 11054 | 11054-0556 | 1 | ||
BRACKET | 11055 | 11055-0395 | 1 | ||
PLATE | 13271 | 13271-0792 | 1 | ||
SCREW-PILOT AIR | 16014 | 16014-0005 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-0007 | 1 | ||
INSULATOR,INJECTER | 16073 | 16073-1123 | 4 | ||
THROTTLE-ASSY,40EIDW | 16163 | 16163-0093 | 1 | ||
SENSOR,PRESSURE | 21176 | 21176-0058 | 1 | ||
HARNESS | 26031 | 26031-0547 | 1 | ||
NOZZLE-INJECTION | 49033 | 49033-0011 | 4 | ||
PIPE-INJECTION | 49056 | 49056-0017 | 1 | ||
FITTING | 92005 | 92005-1380 | 3 | ||
CLAMP,BREATHER TUBE | 92037 | 92037-174 | 4 | ||
RING-O,INJECTION NOZZLE | 92055 | 92055-1622 | 4 | ||
PLUG,FITTING | 92066 | 92066-1549 | 4 | ||
DAMPER | 92161 | 92161-0041 | 1 | ||
CLAMP | 92170 | 92170-2044 | 2 | ||
CLAMP | 92171 | 92171-0687 | 1 | ||
CLAMP | 92171A | 92171-1680 | 1 | ||
TUBE | 92192 | 92192-0131 | 1 | ||
TUBE,3.2X7.4X60 | 92192A | 92192-0576 | 2 | ||
TUBE,3.2X7.4X175 | 92192B | 92192-0577 | 1 | ||
TUBE,3.2X7.4X50 | 92192C | 92192-0578 | 2 | ||
TUBE,3.2X7.4X160 | 92192D | 92192-0579 | 1 |
SCREW-PAN-CROS,5X6 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X8 | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,6X12 | |
REF # | 220B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PILOT AIR | |
REF # | 16014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-THROTTLE STOP | |
REF # | 16021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
INSULATOR,INJECTER | |
REF # | 16073 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
THROTTLE-ASSY,40EIDW | |
REF # | 16163 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SENSOR,PRESSURE | |
REF # | 21176 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HARNESS | |
REF # | 26031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE-INJECTION | |
REF # | 49033 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIPE-INJECTION | |
REF # | 49056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP,BREATHER TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,INJECTION NOZZLE | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG,FITTING | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,3.2X7.4X60 | |
REF # | 92192A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,3.2X7.4X175 | |
REF # | 92192B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,3.2X7.4X50 | |
REF # | 92192C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,3.2X7.4X160 | |
REF # | 92192D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
