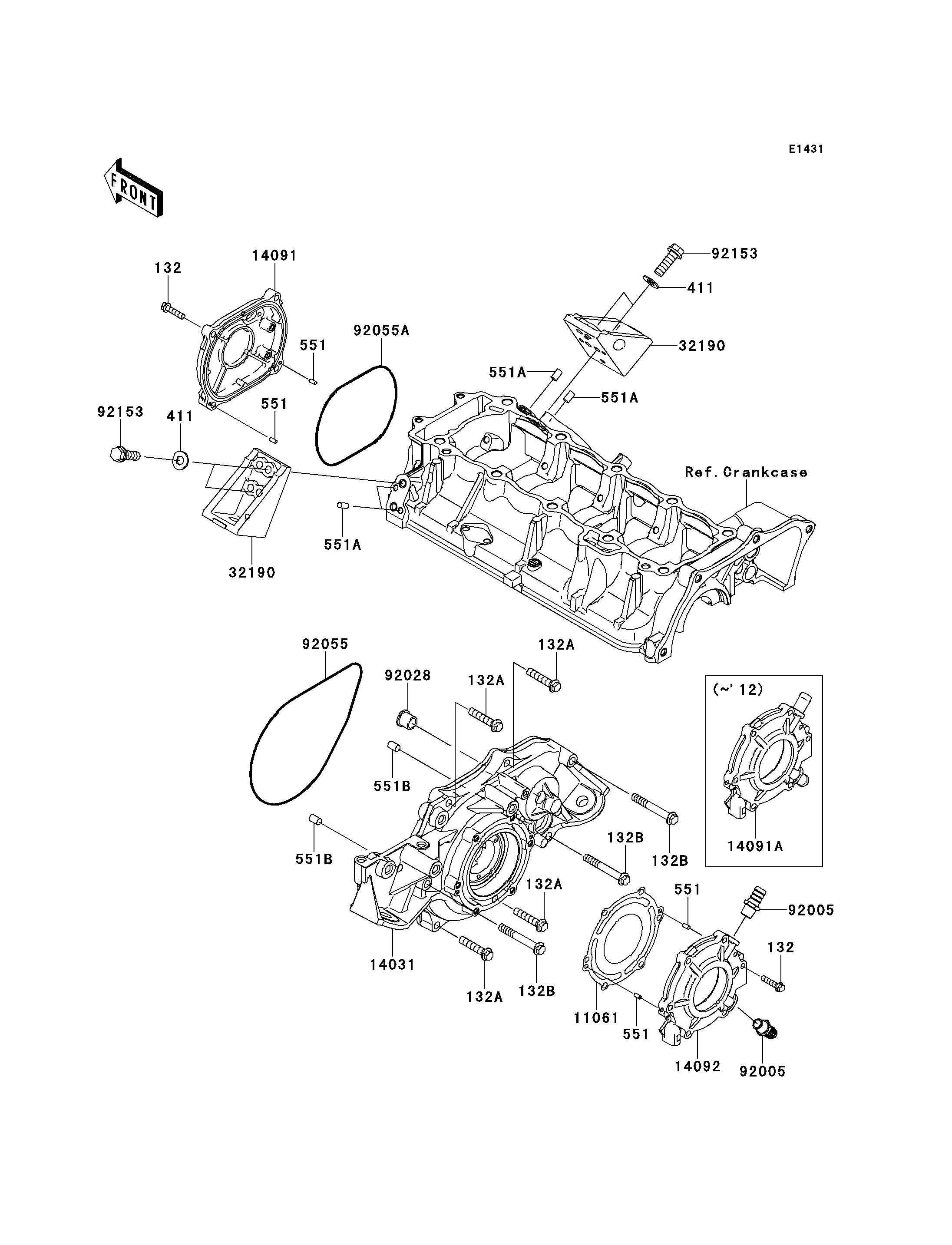

2012 JET SKI® ULTRA® 300LX - Engine Cover(s)
132
132
132A
132A
132A
132A
132B
132B
132B
411
411
551
551
551
551
551A
551A
551A
551B
551B
11061
14031
14091
14091A
32190
32190
92028
92055
92055A
92153
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X25 | 132 | 132BD0625 | 10 | ||
| BOLT-FLANGED-SMALL,8X40 | 132A | 132BD0840 | 4 | ||
| BOLT-FLANGED-SMALL,8X60 | 132B | 132BD0860 | 3 | ||
| WASHER-PLAIN,8MM | 411 | 411S0800 | 4 | ||
| PIN-DOWEL | 551 | 551R0408 | 4 | ||
| PIN-DOWEL | 551A | 551R0612 | 4 | ||
| PIN-DOWEL | 551B | 551R0812 | 2 | ||
| GASKET,OUTPUT COVER | 11061 | 11061-0812 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-3738 | 1 | ||
| COVER,PULS | 14091 | 14091-3763 | 1 | ||
| COVER,OUTPUT | 14091A | 14091-3793 | 1 | ||
| BRACKET-ENGINE | 32190 | 32190-3703 | 2 | ||
| BUSHING | 92028 | 92028-3718 | 1 | ||
| RING-O,196X3 | 92055 | 92055-3761 | 1 | ||
| RING-O,120X3 | 92055A | 92055-3762 | 1 | ||
| BOLT,FLANGED,8X30 | 92153 | 92153-3722 | 4 |
