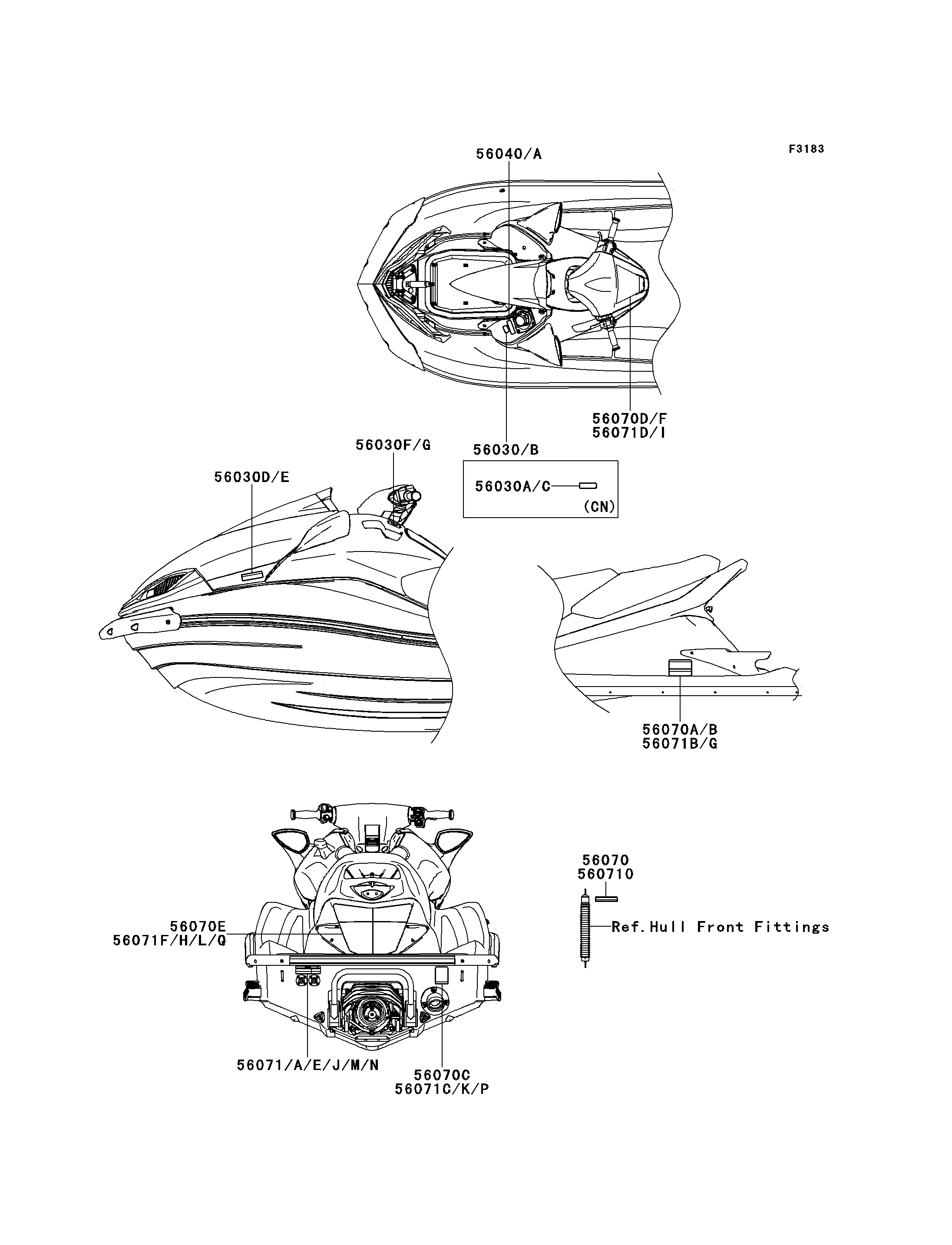

2012 JET SKI® ULTRA® 300LX - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030D
56030D
56030F
56030F
56040
56040
56070
56070
56071B
56071B
56071C
56071C
56071D
56071D
56071E
56071E
56071F
56071F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FIRE EXTINGUISHER 56030D 56030-3755 1
LABEL,REVERSE 56030F 56030-3815 1
LABEL-WARNING,GASOLINE 56040 56040-3972 1
LABEL-WARNING,DAMPER 56070 56070-3876 1
LABEL-WARNING,GRAB HANDLE&STEP 56071B 56071-0224 1
LABEL-WARNING,RIGHTING 56071C 56071-0225 1
LABEL-WARNING,TETHER SWITCH 56071D 56071-0226 1
LABEL-WARNING,FLUSHING 56071E 56071-0227 1
LABEL-WARNING,IMPORTANT SAFETY 56071F 56071-0228 1
LABEL,GASOLINE 56030 56030-0357 1 US
LABEL,GASOLINE,FRN 56030A 56030-0358 1 CN
LABEL,FIRE EXTINGUISHER,FRN 56030E 56030-3757 1 CN
LABEL,REVERSE,FRN 56030G 56030-3816 1 CN
LABEL,GASOLINE,FRN 56040A 56040-3978 1 CN
LABEL-WARNING,GRAB HANDLE&STEP 56071G 56071-0229 1 CN
LABEL-WARNING,IMPORTANT SAFETY 56071H 56071-0230 1 CN
LABEL-WARNING,TETHER SWITCH 56071I 56071-0231 1 CN
LABEL-WARNING,FLUSHING,FRN 56071J 56071-0232 1 CN
LABEL-WARNING,RIGHTING,FRN 56071K 56071-0233 1 CN
LABEL-WARNING,DAMPER,FRN 56071O 56071-3737 1 CN
