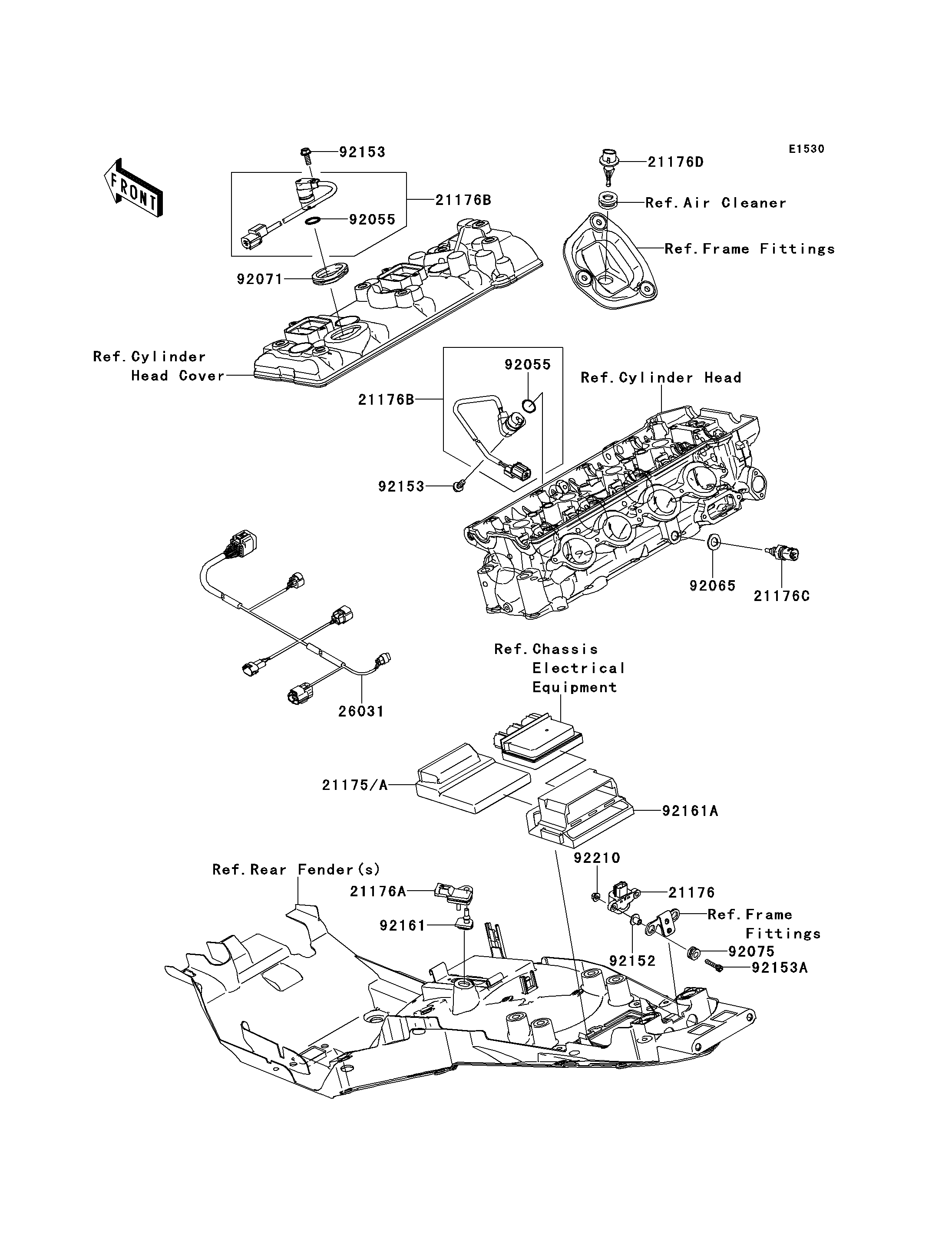

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
21176
21176A
21176B
21176B
21176C
21176D
26031
92055
92055
92065
92071
92075
92152
92153
92153
92153A
92161
92161A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SENSOR,VEHICLE-DOWN | 21176 | 21176-0026 | 1 | ||
| SENSOR,PRESSURE | 21176A | 21176-0058 | 1 | ||
| SENSOR,CAM | 21176B | 21176-0064 | 2 | ||
| SENSOR,WATER TEMP | 21176C | 21176-1120 | 1 | ||
| SENSOR,AIR TEMP | 21176D | 21176-2106 | 1 | ||
| HARNESS | 26031 | 26031-0557 | 1 | ||
| RING-O | 92055 | 92055-1639 | 2 | ||
| GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
| GROMMET | 92071 | 92071-0028 | 1 | ||
| DAMPER | 92075 | 92075-1912 | 2 | ||
| COLLAR | 92152 | 92152-0329 | 2 | ||
| BOLT-FLANGED,6X16 | 92153 | 92153-1584 | 2 | ||
| BOLT,SOCKET,5X22 | 92153A | 92153-1597 | 2 | ||
| DAMPER | 92161 | 92161-0041 | 1 | ||
| DAMPER | 92161A | 92161-0092 | 1 | ||
| NUT,FLANGED,5MM | 92210 | 92210-0007 | 2 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-0131 | 1 | CNUS | |
| CONTROL UNIT-ELECTRONIC | 21175A | 21175-0132 | 1 | CA |
