Parts Diagrams |

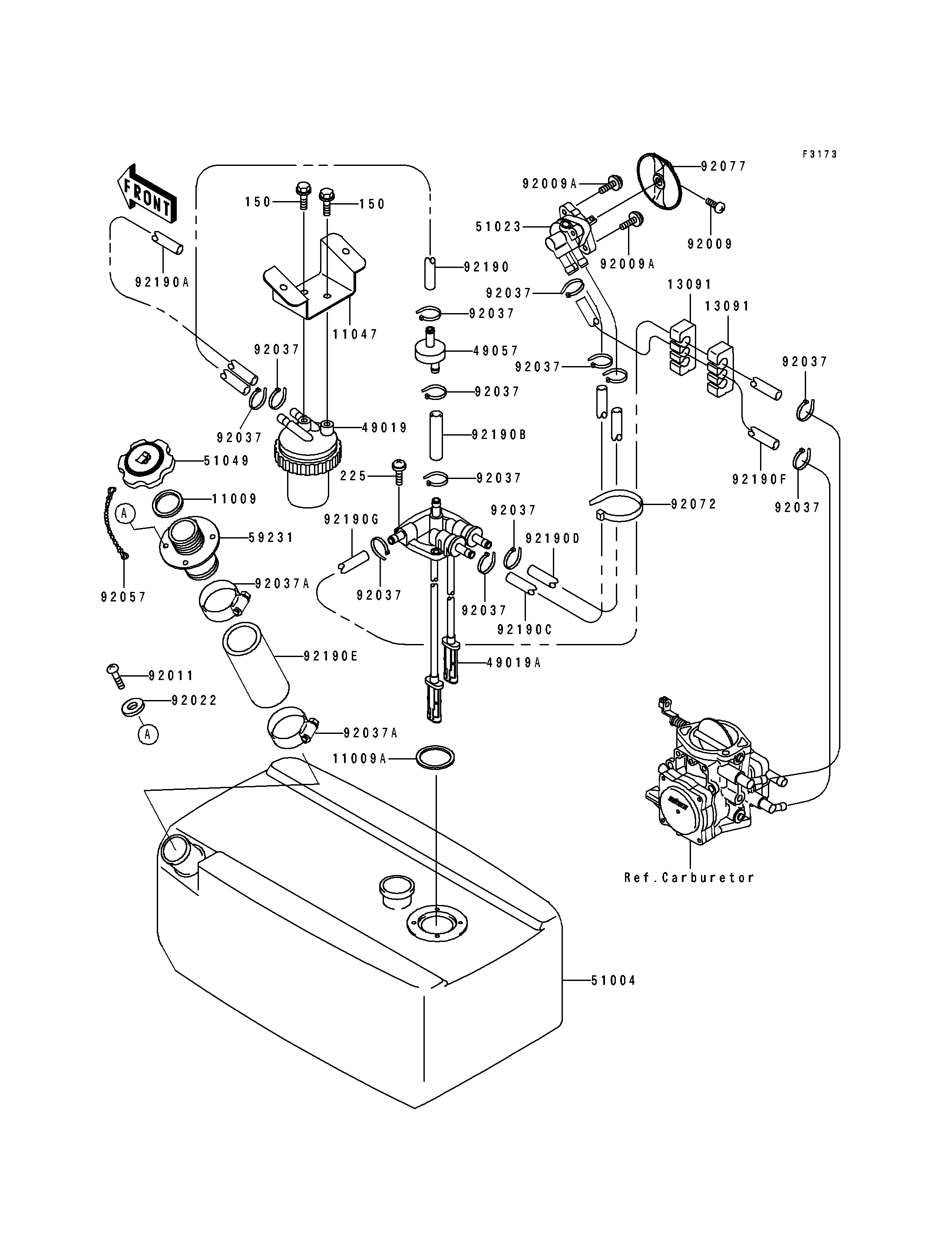

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TANK CAP | 11009 | 11009-3020 | 1 | ||
GASKET | 11009A | 11009-3790 | 1 | ||
BRACKET,FUEL FILTER | 11047 | 11047-3761 | 1 | ||
HOLDER,TUBE | 13091 | 13091-3758 | 2 | ||
FILTER-FUEL | 49019 | 49019-3708 | 1 | ||
FILTER-FUEL | 49019A | 49019-3710 | 1 | ||
VALVE-RELIEF | 49057 | 49057-3001 | 1 | ||
TANK-FUEL | 51004 | 51004-3718 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-3718 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-3719 | 1 | ||
FILLER,FUEL TANK | 59231 | 59231-3001 | 1 | ||
SCREW,4X8 | 92009 | 92009-3729 | 1 | ||
SCREW,5X16 | 92009A | 92009-3789 | 2 | ||
SCREW | 92011 | 92011-562 | 4 | ||
WASHER | 92022 | 92022-563 | 4 | ||
CLAMP | 92037 | 92037-1173 | 13 | ||
CLAMP | 92037A | 92037-3009 | 2 | ||
CHAIN,COVER,L=100 | 92057 | 92057-3704 | 1 | ||
BAND,L=149 | 92072 | 92072-031 | 1 | ||
KNOB | 92077 | 92077-3717 | 1 | ||
TUBE,5.8X10.8X250 | 92190 | 92190-3761 | 1 | ||
TUBE,5.8X10.8X800 | 92190A | 92190-3763 | 1 | ||
TUBE,TANK-BREATHER | 92190B | 92190-3799 | 1 | ||
TUBE,"RES",5.8X10.8X420 | 92190C | 92190-3889 | 1 | ||
TUBE,"ON",5.8X10.8X420 | 92190D | 92190-3890 | 1 | ||
TUBE,FUEL FILLER | 92190E | 92190-3898 | 1 | ||
TUBE,5.8X10.8X590 | 92190F | 92190-3902 | 1 | ||
TUBE,"RETURN",CARB-TANK | 92190G | 92190-3903 | 1 | ||
BOLT-WS,6X14 | 150 | 150R0614 | 2 | ||
SCREW-PAN-WSP-CROS,5X16 | 225 | 225R0516 | 4 |
GASKET,TANK CAP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,FUEL FILTER | |
REF # | 11047 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,TUBE | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FILTER-FUEL | |
REF # | 49019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-FUEL | |
REF # | 49019A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-RELIEF | |
REF # | 49057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TANK-FUEL | |
REF # | 51004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILLER,FUEL TANK | |
REF # | 59231 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,4X8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,5X16 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92011 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 13 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,COVER,L=100 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=149 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNOB | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.8X10.8X250 | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.8X10.8X800 | |
REF # | 92190A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,TANK-BREATHER | |
REF # | 92190B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"RES",5.8X10.8X420 | |
REF # | 92190C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"ON",5.8X10.8X420 | |
REF # | 92190D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,FUEL FILLER | |
REF # | 92190E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.8X10.8X590 | |
REF # | 92190F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,"RETURN",CARB-TANK | |
REF # | 92190G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-WS,6X14 | |
REF # | 150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WSP-CROS,5X16 | |
REF # | 225 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
