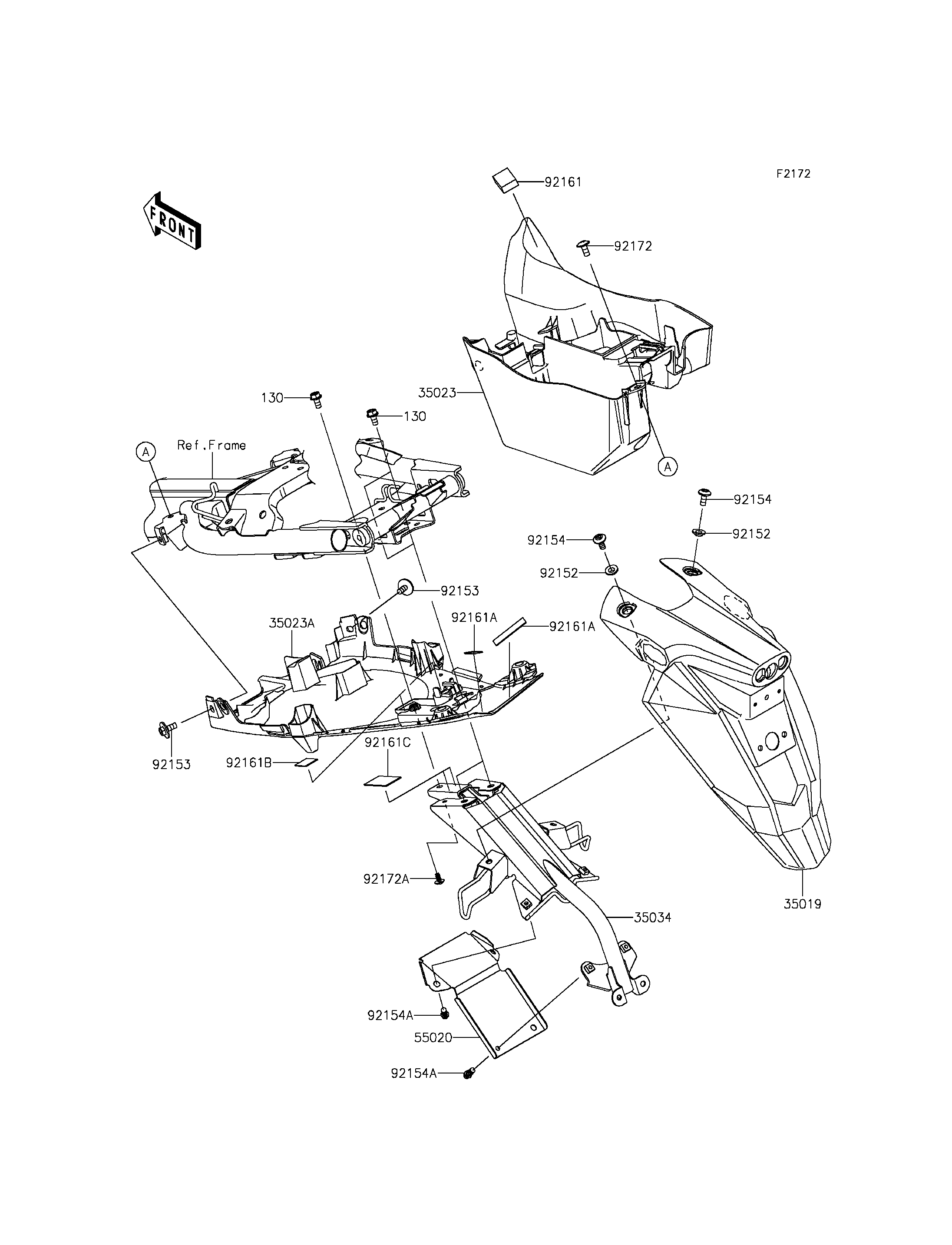

2012 ER-6n (European) - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
35019
35023
35023A
35034
55020
92152
92152
92153
92153
92154
92154
92154A
92154A
92161
92161A
92161A
92161B
92161C
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 3
FLAP,RR 35019 35019-0556 1
FENDER-REAR,FR 35023 35023-0309 1
FENDER-REAR,RR 35023A 35023-0354 1
REINFORCE 35034 35034-0568 1
GUARD 55020 55020-0846 1
COLLAR,6.3X9.5X4.1 92152 92152-1571 2
BOLT,6X16 92153 92153-0684 2
BOLT,SOCKET,6X14 92154 92154-0907 2
BOLT,FLANGED,6X12 92154A 92154-0979 4
DAMPER 92161 92161-0718 1
DAMPER,10X45,T1.0 92161A 92161-1408 2
DAMPER,20X20,T1.0 92161B 92161-1431 2
DAMPER,25X40,T1.0 92161C 92161-1432 2
SCREW,6X14 92172 92172-0004 1
SCREW,TAPPING,5X10 92172A 92172-0262 1
