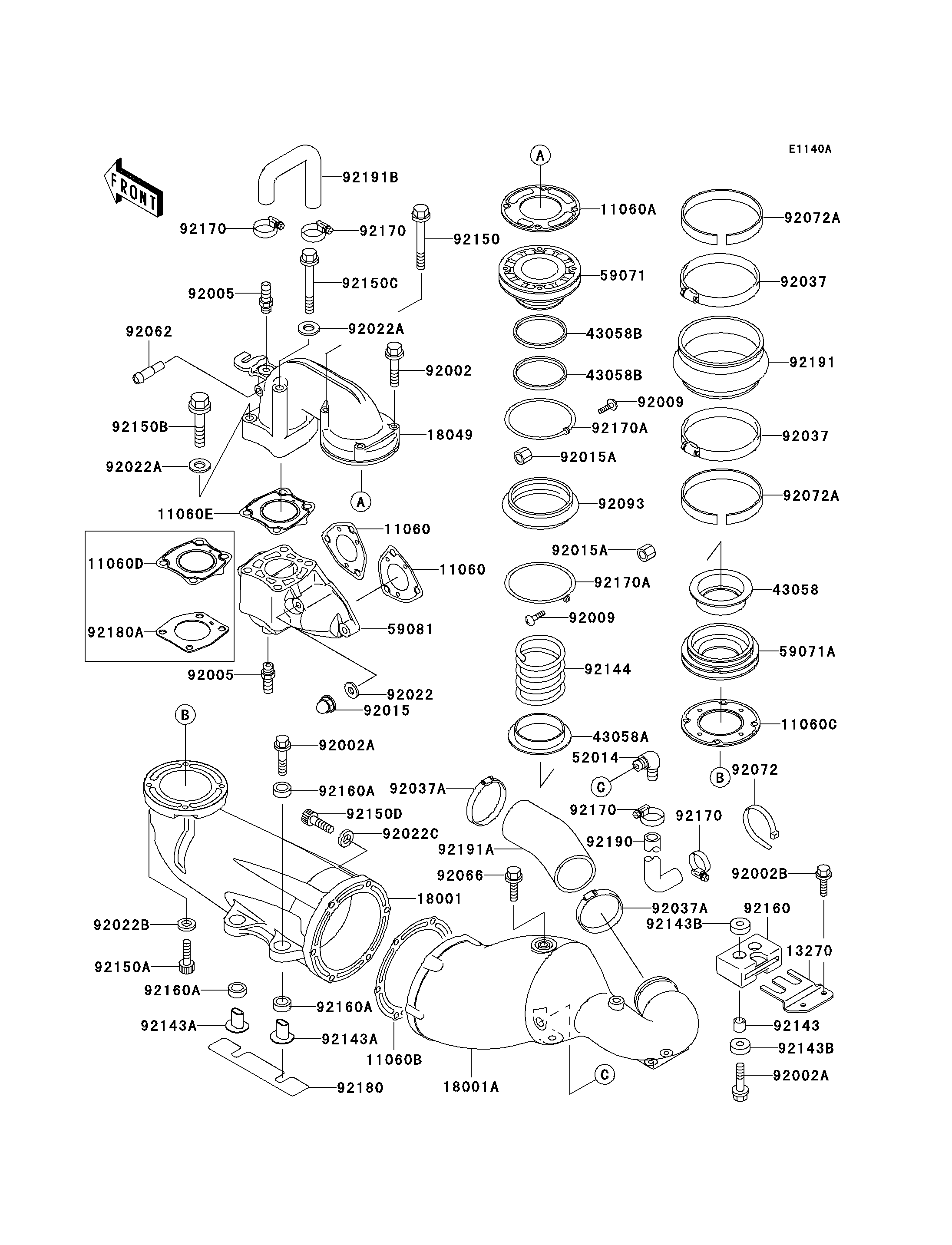

1997 STS - Muffler(s)(JT750-B2/B3)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11060D
11060D
11060E
11060E
13270
13270
18001
18001
18001A
18001A
18049
18049
43058
43058
43058A
43058A
43058B
43058B
43058B
43058B
52014
52014
59071
59071
59071A
59071A
59081
59081
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92005
92005
92005
92005
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92062
92062
92066
92066
92072
92072
92072A
92072A
92072A
92072A
92093
92093
92143
92143
92143A
92143A
92143A
92143A
92143B
92143B
92143B
92143B
92144
92144
92150
92150
92150A
92150A
92150B
92150B
92150C
92150C
92150D
92150D
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92180
92180
92180A
92180A
92190
92190
92191
92191
92191A
92191A
92191B
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST MANIFOLD 11060 11060-3759 2
GASKET,EXHAUST-JOINT 11060A 11060-3763 1
GASKET,MUFFLER 11060B 11060-3766 1
GASKET,JOINT-MUFFLER 11060C 11060-3770 1
GASKET,EXHAUST-MANIFOLD 11060D 11060-3771 AR
GASKET,EXHAUST-MANIFOLD 11060E 11060-3771 1
PLATE 13270 13270-3816 1
MUFFLER,FR 18001 18001-3760 1
MUFFLER,RR 18001A 18001-3770 1
PIPE-EXHAUST 18049 18049-3756 1
RING 43058 43058-3710 1
RING 43058A 43058-3711 1
RING 43058B 43058-3712 2
ELBOW 52014 52014-3711 1
JOINT 59071 59071-3745 1
JOINT 59071A 59071-3746 1
MANIFOLD-EXHAUST 59081 59081-3718 1
BOLT,6X35 92002 92002-3715 2
BOLT,6X40 92002A 92002-3716 6
BOLT,6X16 92002B 92002-3728 2
FITTING,HOSE 92005 92005-3712 2
SCREW,3X14 92009 92009-3796 2
NUT,CAP,8MM 92015 92015-1371 6
NUT,3MM 92015A 92015-3825 2
WASHER,8.2X18X1.5 92022 92022-1964 6
WASHER,10.2X20X1.5 92022A 92022-3742 4
WASHER,6MM 92022B 92022-3747 4
WASHER 92022C 92022-562 6
CLAMP 92037 92037-3706 2
CLAMP 92037A 92037-3738 2
NOZZLE 92062 92062-3705 1
PLUG,CYLINDER HEAD 92066 92066-3001 1
BAND,L=292.1 92072 92072-3509 1
BAND 92072A 92072-3793 2
SEAL 92093 92093-3744 1
COLLAR,7.5X10.5X9 92143 92143-3714 2
COLLAR 92143A 92143-3759 4
COLLAR 92143B 92143-3760 4
SPRING 92144 92144-3751 1
BOLT,6X80 92150 92150-3761 2
BOLT,SOCKET,6X18 92150A 92150-3775 4
BOLT,10X50 92150B 92150-3819 2
BOLT,10X145 92150C 92150-3820 2
BOLT,SOCKET,8X30 92150D 92150-3851 6
DAMPER,RR 92160 92160-3774 1
DAMPER 92160A 92160-3879 8
CLAMP 92170 92170-3718 4
CLAMP 92170A 92170-3748 2
SHIM 92180 92180-3703 AR
SHIM 92180A 92180-3704 AR
TUBE,MANIFOLD-HULL 92190 92190-3953 1
TUBE 92191 92191-3733 1
TUBE,CHAMBER-MUFFLER 92191A 92191-3756 1
TUBE,HEAD-EXHAUST 92191B 92191-3766 1
