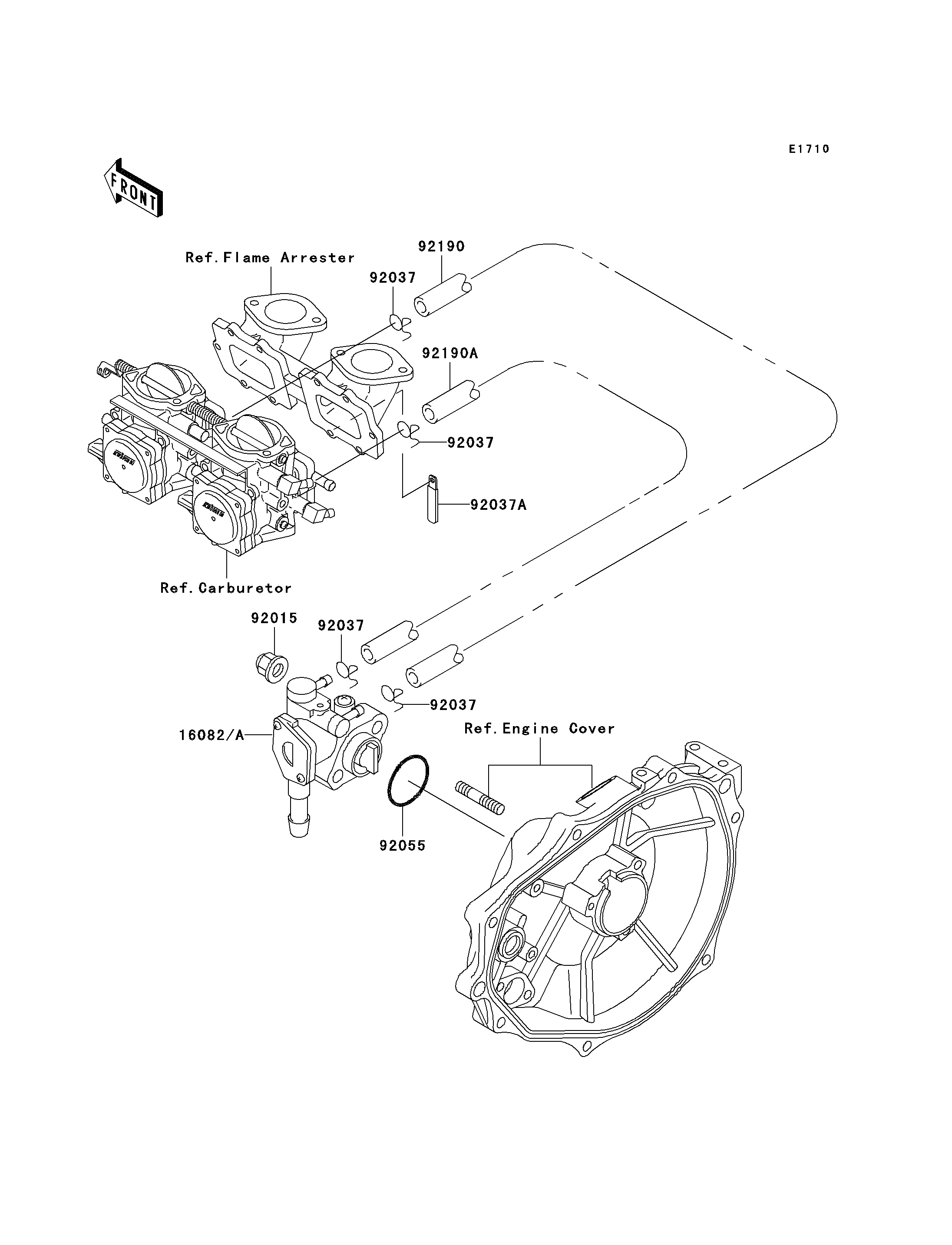

16082A
92015
92037
92037
92037
92037
92037A
92055
92190
92190A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-ASSY-OIL 16082A 16082-3718 1
NUT,CAP,6MM 92015 92015-1385 2
CLAMP 92037 92037-3722 4
CLAMP,L=100 92037A 92037-3736 2
RING-O,19.5X1.5 92055 92055-055 1
TUBE,3X6X420 92190 92190-3945 1
TUBE,RR,CARBURETOR 92190A 92190-3967 1
