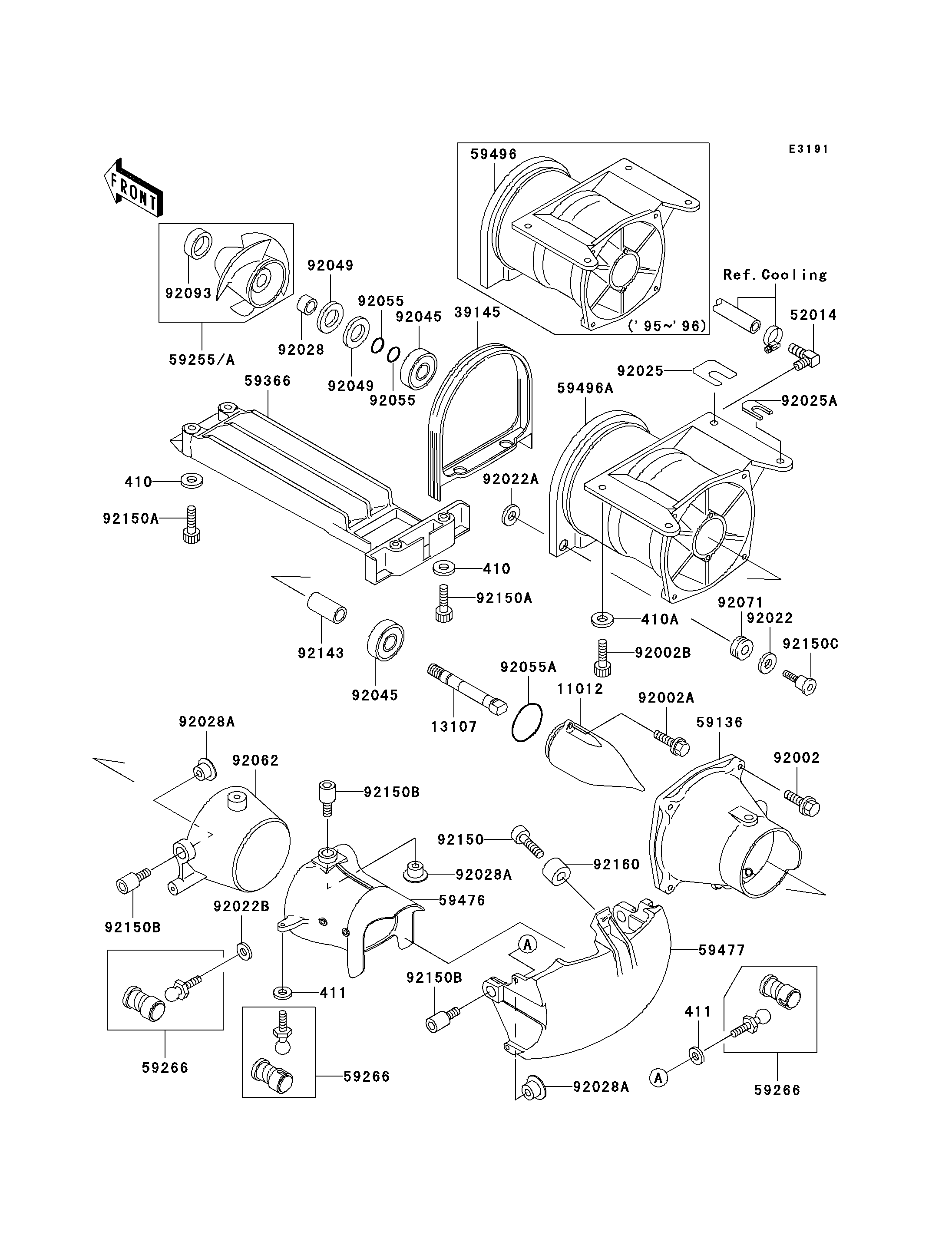

1997 STS - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
410
410
410A
411
411
11012
13107
39145
52014
59136
59255A
59266
59266
59266
59366
59476
59477
59496A
92002
92002A
92002B
92022
92022A
92022B
92025
92025A
92028
92028A
92028A
92028A
92045
92045
92049
92049
92055
92055
92055A
92062
92071
92093
92143
92150
92150A
92150A
92150B
92150B
92150B
92150C
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
WASHER-PLAIN-SMALL,8MM 410A 410S0800 4
WASHER-PLAIN,6MM 411 411S0600 2
CAP,JET PUMP 11012 11012-3712 1
SHAFT,JET PUMP 13107 13107-3721 1
TRIM-SEAL 39145 39145-3732 1
ELBOW 52014 52014-3708 1
NOZZLE-PUMP 59136 59136-3722 1
IMPELLER-COMP 59255A 59255-3710 1
JOINT-BALL 59266 59266-3707 3
GRATE 59366 59366-3710 1
NOZZLE-STRG 59476 59476-3727 1
BUCKET-REVERSE 59477 59477-3704 1
VANE-GUIDE 59496A 59496-3714 1
BOLT,6X30 92002 92002-3726 4
BOLT,6X16 92002A 92002-3728 2
BOLT,SOCKET,8X20 92002B 92002-3771 4
WASHER,6.2X20X2 92022 92022-3714 2
WASHER,10.2X20X1.5 92022A 92022-3742 2
WASHER 92022B 92022-567 1
SHIM,T=0.5MM 92025 92025-3702 2
SHIM,T=1.5MM 92025A 92025-3708 2
BUSHING,17X25X15 92028 92028-3717 1
BUSHING 92028A 92028-3740 6
BEARING-BALL,#63032RD 92045 92045-3706 2
SEAL-OIL,TBY25X47X6 92049 92049-3714 2
RING-O,13X1.9 92055 92055-1021 2
RING-O 92055A 92055-3706 1
NOZZLE 92062 92062-3717 1
GROMMET 92071 92071-3716 2
SEAL,JET PUMP 92093 92093-3739 1
COLLAR,17.4X25.4X53 92143 92143-3708 1
BOLT,SOCKET,6X10 92150 92150-3759 1
BOLT,SOCKET,6X18 92150A 92150-3795 4
BOLT 92150B 92150-3808 6
BOLT 92150C 92150-3850 2
DAMPER 92160 92160-3738 1
