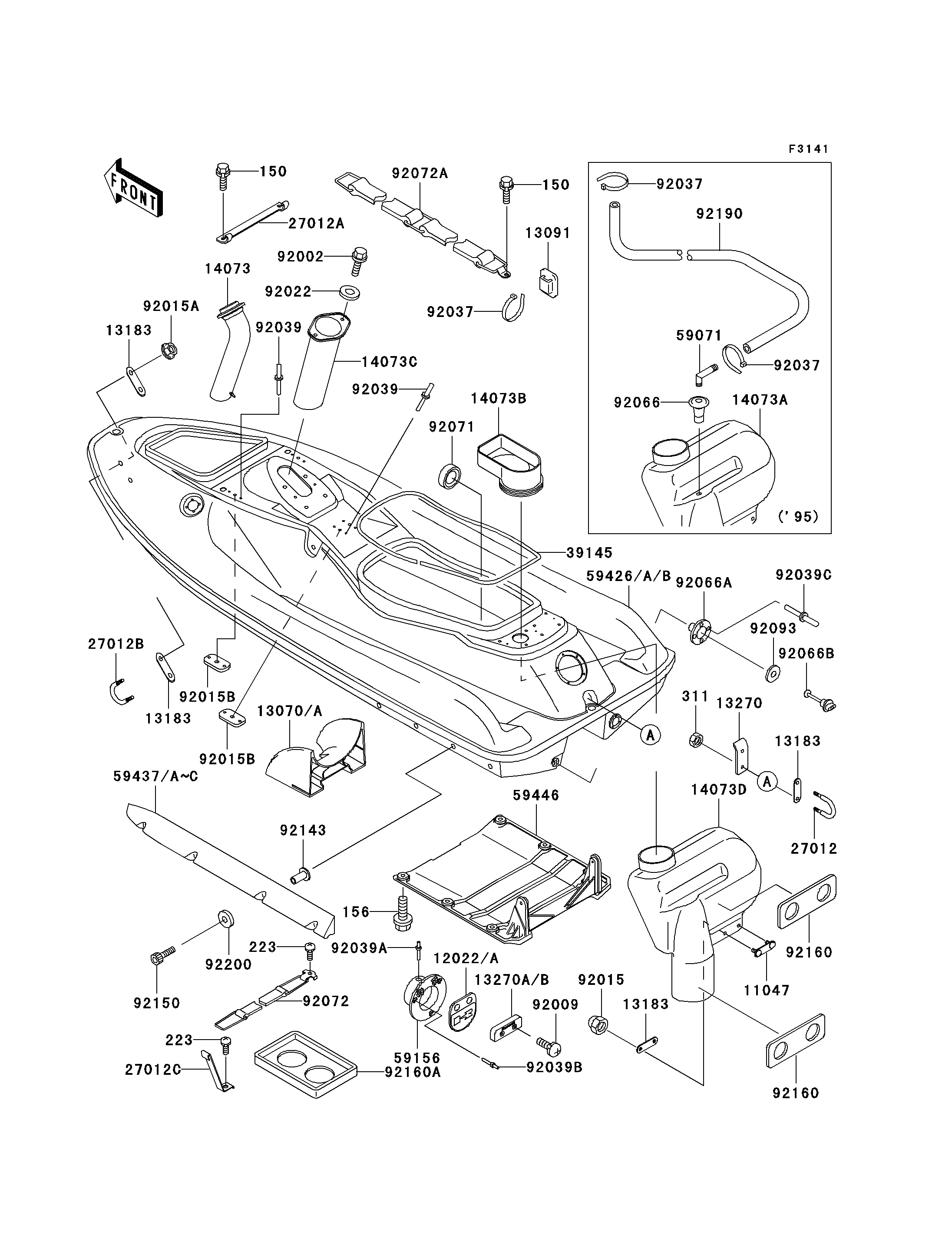

1997 STS - Hull

DOWNLOAD PDF
SELECT A NEW PART
11047
11047
12022A
12022A
13070A
13070A
13091
13091
13183
13183
13183
13183
13183
13183
13183
13183
13270
13270
13270B
13270B
14073
14073
14073B
14073B
14073C
14073C
14073D
14073D
27012
27012
27012A
27012A
27012B
27012B
27012C
27012C
39145
39145
59156
59156
59437
59437
59437B
59437B
59446
59446
92002
92002
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
150
150
150
150
156
156
223
223
223
223
311
311
92022
92022
92037
92037
92037
92037
92037
92037
92039
92039
92039
92039
92039A
92039A
92039B
92039B
92039C
92039C
92066A
92066A
92066B
92066B
92071
92071
92072
92072
92072A
92072A
92093
92093
92143
92143
92150
92150
92160
92160
92160
92160
92160A
92160A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR DUCT 11047 11047-3774 1
VALVE-REED 12022A 12022-3706 1
GUIDE,INTAKE 13070A 13070-3721 1
HOLDER,BAND 13091 13091-3764 1
PLATE 13183 13183-3809 4
PLATE 13270 13270-3731 1
PLATE 13270B 13270-3867 1
DUCT,FR 14073 14073-3741 1
DUCT,RR,INNER 14073B 14073-3743 1
DUCT,FR 14073C 14073-3746 1
DUCT,RR,UPPER 14073D 14073-3756 1
HOOK 27012 27012-3761 1
HOOK,BOW EYE 27012A 27012-3766 1
HOOK 27012B 27012-3776 1
HOOK 27012C 27012-3789 2
TRIM-SEAL,L=2170 39145 39145-3741 1
PIPE-TAIL 59156 59156-3711 1
STABILIZER,LH,J.S.VIOLET 59437 59437-3706-RE 1
STABILIZER,RH,J.S.VIOLET 59437B 59437-3707-RE 1
COVER-JET PUMP 59446 59446-3729 1
BOLT,6X16 92002 92002-3728 2
SCREW,6X15 92009 92009-3830 2
NUT,CAP,6MM 92015 92015-3755 2
NUT,6MM 92015A 92015-3767 2
NUT 92015B 92015-3815 4
BOLT-WS,6X16 150 150R0616 4
BOLT-WP,6X20 156 156R0620 6
SCREW-PAN-WS-CROS,6X14 223 223R0614 4
NUT-HEX,6MM 311 311R0600 2
WASHER,6.5X20X1.5 92022 92022-3710 2
CLAMP 92037 92037-1173 1
RIVET 92039 92039-3712 8
RIVET,4.8MM 92039A 92039-3719 1
RIVET 92039B 92039-3721 3
RIVET 92039C 92039-3757 4
PLUG,RR,DRAIN 92066A 92066-3724 1
PLUG,RR,DRAIN 92066B 92066-3744 1
GROMMET 92071 92071-3783 3
BAND,BATTERY 92072 92072-3766 2
BAND,FUEL TANK 92072A 92072-3772 2
SEAL 92093 92093-3720 1
COLLAR 92143 92143-3739 8
BOLT,SOCKET,6X40 92150 92150-3847 8
DAMPER 92160 92160-3722 2
DAMPER 92160A 92160-3872 1
WASHER,6.5X16X1.0 92200 92200-3712 8
HULL-COMP,J.WHITE 59426B 59426-3863-8C 1 US
