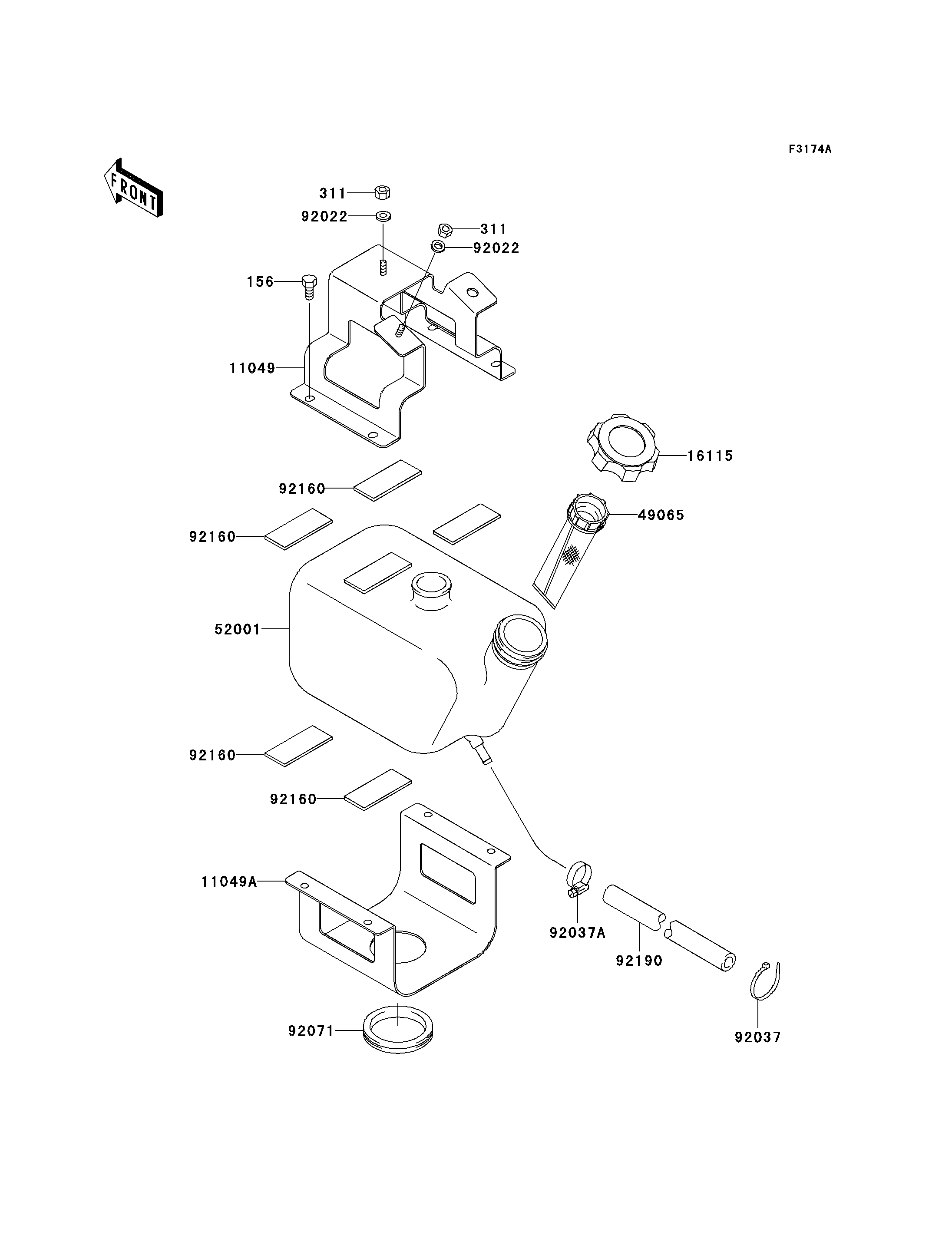

Parts Diagrams |
156
311
311
11049
11049A
16115
49065
52001
92022
92022
92037
92037A
92071
92160
92160
92160
92160
92190
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WP,6X14 | 156 | 156R0614 | 4 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 2 | ||
| BRACKET | 11049 | 11049-3726 | 1 | ||
| BRACKET | 11049A | 11049-3728 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-3714 | 1 | ||
| FILTER-OIL | 49065 | 49065-3702 | 1 | ||
| TANK-OIL | 52001 | 52001-3721 | 1 | ||
| WASHER,6.2X20X2 | 92022 | 92022-3714 | 2 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| CLAMP | 92037A | 92037-3726 | 1 | ||
| GROMMET | 92071 | 92071-3709 | 1 | ||
| DAMPER,WATER MUFFER | 92160 | 92160-3880 | 8 | ||
| TUBE,5.8X10.8X370 | 92190 | 92190-3864 | 1 |
| BOLT-WP,6X14 | |
| REF # | 156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-OIL | |
| REF # | 49065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-OIL | |
| REF # | 52001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X20X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,WATER MUFFER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.8X10.8X370 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
