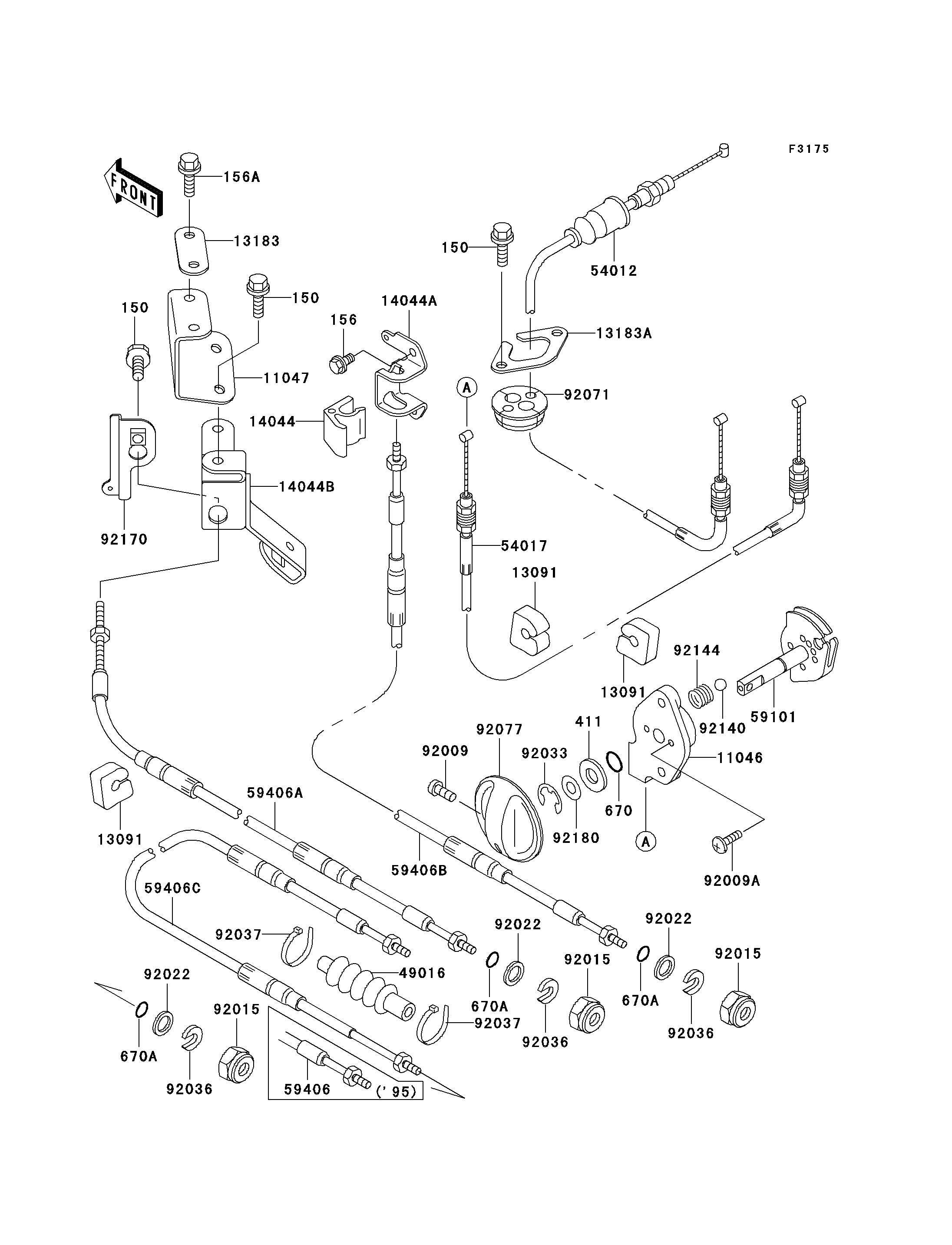

1997 STS - Cables

DOWNLOAD PDF
SELECT A NEW PART
150
150
150
156
156A
411
670
670A
670A
670A
11046
11047
13091
13091
13091
13183
13183A
14044
14044A
14044B
49016
54012
54017
59101
59406A
59406B
59406C
92009
92009A
92015
92015
92015
92022
92022
92022
92033
92036
92036
92036
92037
92037
92071
92077
92140
92144
92170
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X14 150 150R0614 5
BOLT-WP,6X12 156 156R0612 2
BOLT-WP,6X20 156A 156R0620 2
WASHER-PLAIN,8MM 411 411S0800 1
O RING,8MM 670 670B1508 1
O RING,11MM 670A 670B2011 3
BRACKET,STARTER CABLE 11046 11046-3712 1
BRACKET,CABLE HOLDER 11047 11047-3795 1
HOLDER 13091 13091-3712 4
PLATE 13183 13183-3754 1
PLATE 13183A 13183-3810 1
HOLDER-CABLE,STEERING 14044 14044-3714 1
HOLDER-CABLE,STEERING 14044A 14044-3717 1
HOLDER-CABLE 14044B 14044-3718 1
COVER-SEAL,TILT CABLE 49016 49016-3702 1
CABLE-THROTTLE 54012 54012-3744 1
CABLE-STARTER 54017 54017-3729 1
REEL,STARTER CABLE 59101 59101-3704 1
CABLE-STRG 59406A 59406-3736 1
CABLE-STRG,REVERSE 59406B 59406-3745 1
CABLE-STRG,TILT 59406C 59406-3750 1
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
NUT,20MM 92015 92015-526 3
WASHER 92022 92022-535 3
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92036 92036-501 3
CLAMP 92037 92037-1173 2
GROMMET,HARNESS 92071 92071-3790 1
KNOB 92077 92077-3717 1
BALL,3MM 92140 92140-3702 2
SPRING 92144 92144-3712 2
CLAMP,CABLE 92170 92170-3733 1
SHIM,8.5X18X0.15 92180 92180-3702 1
