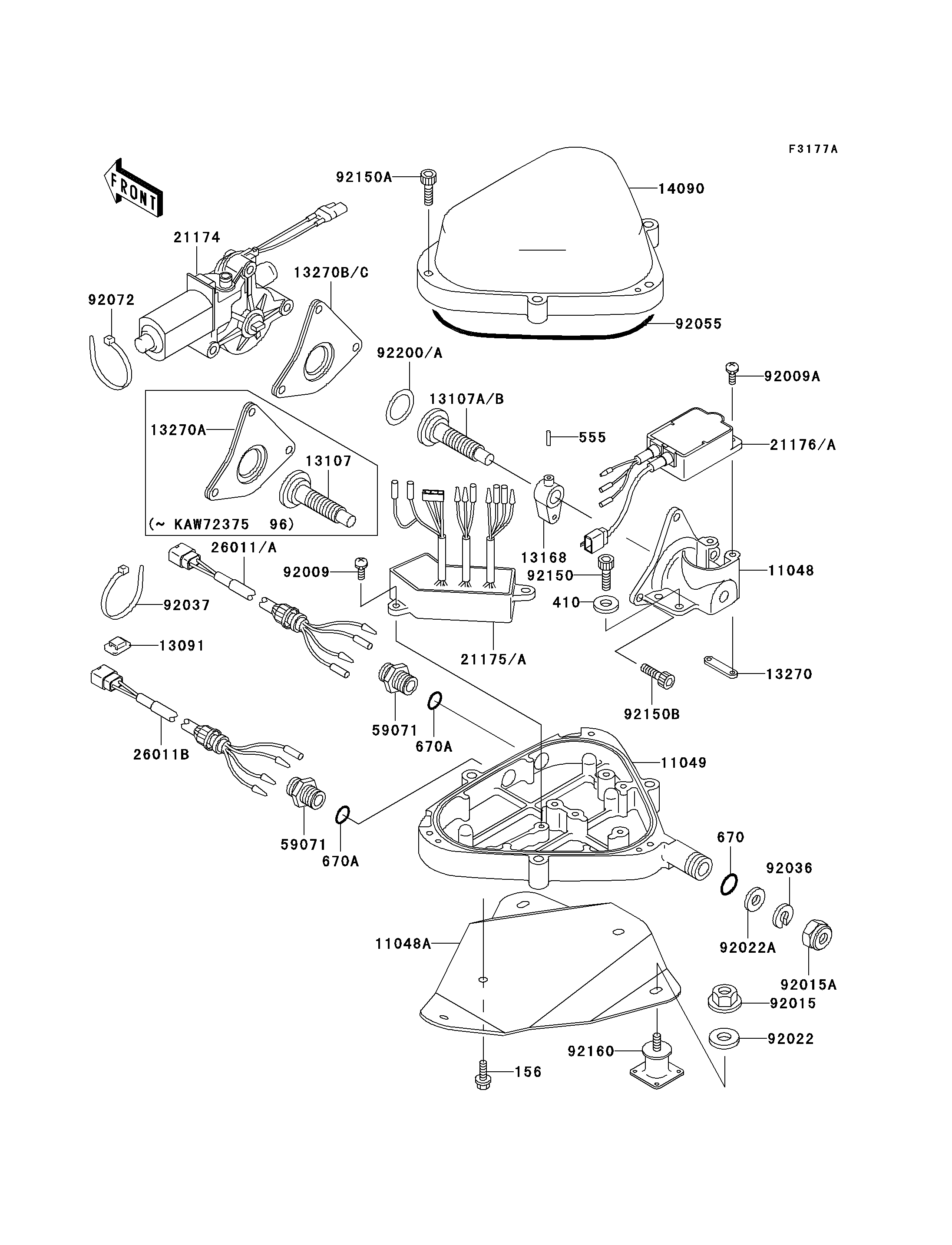

1997 STS - Control(JT750-B2/B3)

DOWNLOAD PDF
SELECT A NEW PART
11048
11048
11048A
11048A
11049
11049
13091
13091
13107A
13107A
13168
13168
13270
13270
13270B
13270B
14090
14090
21174
21174
21175A
21175A
21176A
21176A
26011
26011
26011B
26011B
59071
59071
59071
59071
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92036
92036
92037
92037
92055
92055
92072
92072
92150
92150
92150A
92150A
92150B
92150B
92160
92160
156
156
410
410
555
555
670
670
670A
670A
670A
670A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MOTOR MOUNT 11048 11048-3738 1
BRACKET 11048A 11048-3742 1
BRACKET,MOTOR BOX,LWR 11049 11049-3715 1
HOLDER,BAND 13091 13091-3764 2
SHAFT 13107A 13107-3749 1
LEVER,SLIDE 13168 13168-3724 1
PLATE,TRIM SENSOR 13270 13270-3744 1
PLATE,MOTOR MOUNT 13270B 13270-3822 1
COVER,MOTOR BOX,UPP 14090 14090-3768 1
MOTOR-ELECTRIC 21174 21174-3703 1
CONTROL UNIT-ELECTRONIC 21175A 21175-3707 1
SENSOR,TRIM METER 21176A 21176-3723 1
WIRE-LEAD,TRIM SWITCH 26011 26011-3823 1
WIRE-LEAD,TRIM METER 26011B 26011-3831 1
JOINT 59071 59071-3001 2
SCREW,5X12 92009 92009-3740 3
SCREW,4X12 92009A 92009-3807 2
NUT,6MM 92015 92015-3767 3
NUT,20MM 92015A 92015-526 1
WASHER,6.5X20X1.5 92022 92022-3710 3
WASHER 92022A 92022-535 1
RING-SNAP 92036 92036-501 1
CLAMP 92037 92037-1173 5
RING-O,ID=171 92055 92055-3737 1
BAND 92072 92072-3778 1
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,SOCKET,6X30 92150A 92150-3822 6
BOLT,SOCKET,6X25 92150B 92150-3823 3
DAMPER 92160 92160-3823 3
BOLT-WP,6X14 156 156R0614 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
PIN-SPRING,3X14 555 555B0314 1
O RING,11MM 670 670B2011 1
O RING,16MM 670A 670B2016 2
WASHER,22.5X32X1 92200 92200-3742 1
