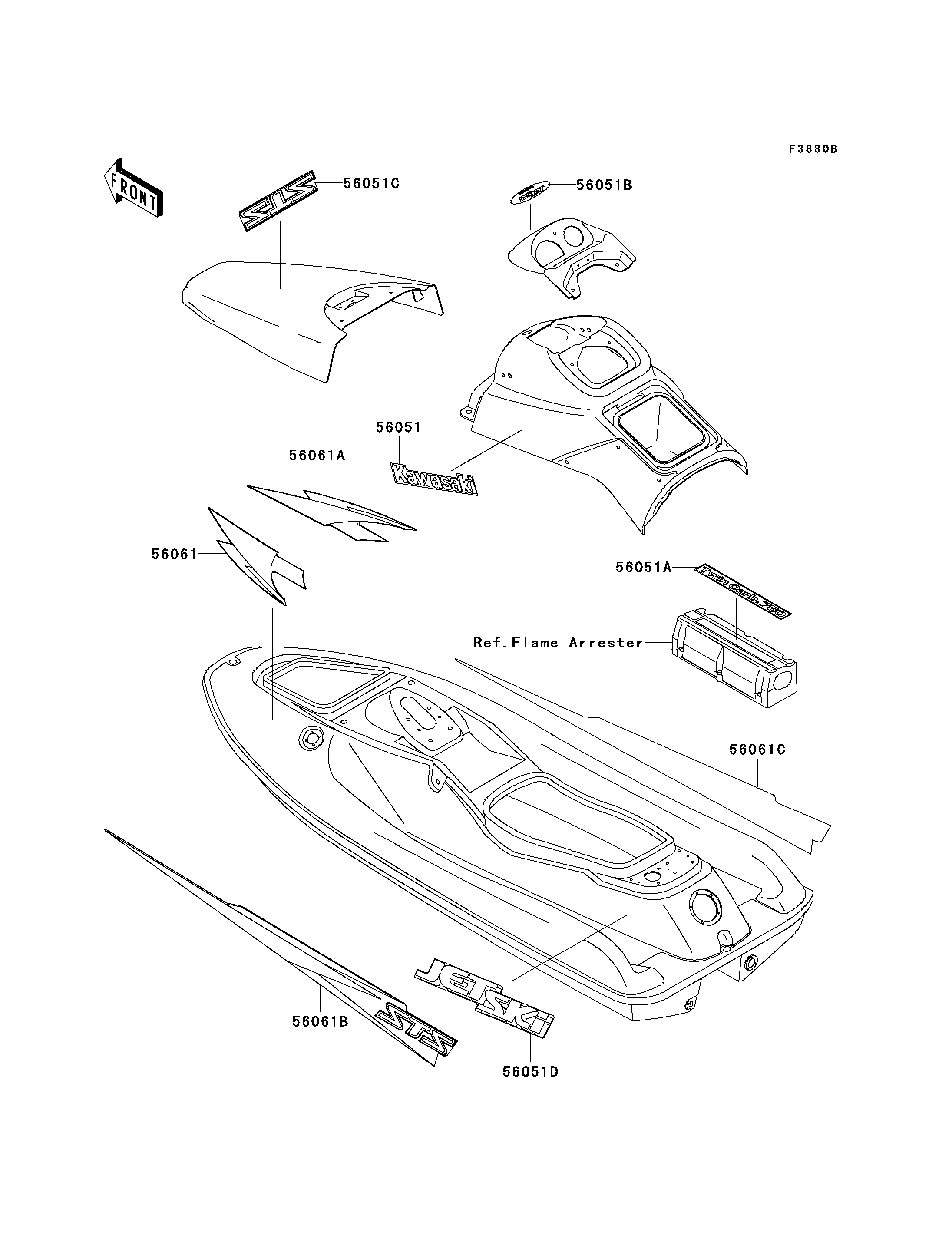

56051
56051A
56051B
56051C
56051D
56061
56061A
56061B
56061C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,DECK,KAWASAKI 56051 56051-3728 2
MARK,TWIN CARB.750 56051A 56051-3742 1
MARK,HANDLE COVER,JET SKI 56051B 56051-3751 1
MARK,HATCH COVER,STS 56051C 56051-3757 1
MARK,DECK,JET SKI 56051D 56051-3758 2
PATTERN,DECK,FR,LH 56061 56061-3786 1
PATTERN,DECK,FR,RH 56061A 56061-3787 1
PATTERN,DECK,RR,LH 56061B 56061-3788 1
PATTERN,DECK,RR,RH 56061C 56061-3789 1
