Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11060
11060
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11060D
11060D
11060E
11060E
13270
13270
18001
18001
18001A
18001A
18049
18049
43058
43058
43058A
43058A
43058B
43058B
43058B
43058B
52014
52014
59071
59071
59071A
59071A
59081
59081
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92005
92005
92005
92005
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92022C
92022C
92037
92037
92037
92037
92062
92062
92066
92066
92072
92072
92072
92072
92072A
92072A
92093
92093
92143
92143
92143A
92143A
92143A
92143A
92143B
92143B
92143B
92143B
92144
92144
92150
92150
92150A
92150A
92150B
92150B
92150C
92150C
92150D
92150D
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170B
92170B
92170B
92170B
92180
92180
92180A
92180A
92190
92190
92191
92191
92191A
92191A
92191B
92191B

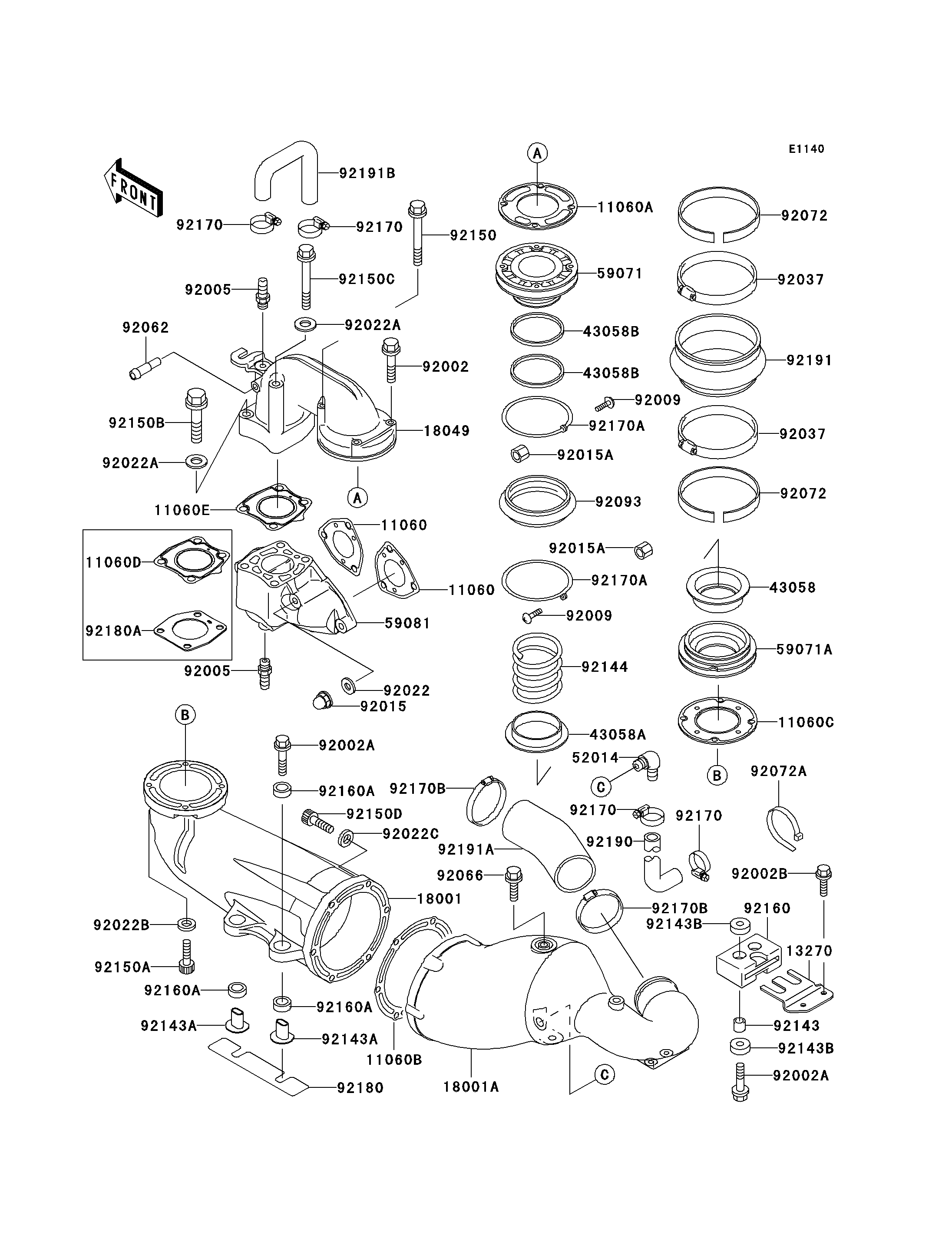

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST MANIFOLD | 11060 | 11060-3759 | 2 | ||
GASKET,EXHAUST-JOINT | 11060A | 11060-3763 | 1 | ||
GASKET,MUFFLER | 11060B | 11060-3766 | 1 | ||
GASKET,JOINT-MUFFLER | 11060C | 11060-3770 | 1 | ||
GASKET,EXHAUST-MANIFOLD | 11060D | 11060-3771 | AR | ||
GASKET,EXHAUST-MANIFOLD | 11060E | 11060-3771 | 1 | ||
PLATE | 13270 | 13270-3816 | 1 | ||
MUFFLER,FR | 18001 | 18001-3760 | 1 | ||
MUFFLER,RR | 18001A | 18001-3770 | 1 | ||
PIPE-EXHAUST | 18049 | 18049-3756 | 1 | ||
RING | 43058 | 43058-3710 | 1 | ||
RING | 43058A | 43058-3711 | 1 | ||
RING | 43058B | 43058-3712 | 2 | ||
ELBOW | 52014 | 52014-3711 | 1 | ||
JOINT | 59071 | 59071-3745 | 1 | ||
JOINT | 59071A | 59071-3746 | 1 | ||
MANIFOLD-EXHAUST | 59081 | 59081-3718 | 1 | ||
BOLT,6X35 | 92002 | 92002-3715 | 2 | ||
BOLT,6X40 | 92002A | 92002-3716 | 6 | ||
BOLT,6X16 | 92002B | 92002-3728 | 2 | ||
FITTING,HOSE | 92005 | 92005-3712 | 2 | ||
SCREW,3X14 | 92009 | 92009-3796 | 2 | ||
NUT,CAP,8MM | 92015 | 92015-1371 | 6 | ||
NUT,3MM | 92015A | 92015-3825 | 2 | ||
WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 6 | ||
WASHER,10.2X20X1.5 | 92022A | 92022-3742 | 4 | ||
WASHER,6MM | 92022B | 92022-3747 | 4 | ||
WASHER | 92022C | 92022-562 | 6 | ||
CLAMP | 92037 | 92037-3706 | 2 | ||
NOZZLE | 92062 | 92062-3705 | 1 | ||
PLUG,CYLINDER HEAD | 92066 | 92066-3001 | 1 | ||
BAND | 92072 | 92072-3793 | 2 | ||
BAND,L=368.3 | 92072A | 92072-3808 | 1 | ||
SEAL | 92093 | 92093-3744 | 1 | ||
COLLAR,7.5X10.5X9 | 92143 | 92143-3714 | 2 | ||
COLLAR | 92143A | 92143-3759 | 4 | ||
COLLAR | 92143B | 92143-3760 | 4 | ||
SPRING | 92144 | 92144-3751 | 1 | ||
BOLT,6X80 | 92150 | 92150-3761 | 2 | ||
BOLT,SOCKET,6X18 | 92150A | 92150-3775 | 4 | ||
BOLT,10X50 | 92150B | 92150-3819 | 2 | ||
BOLT,10X145 | 92150C | 92150-3820 | 2 | ||
BOLT,SOCKET,8X30 | 92150D | 92150-3851 | 6 | ||
DAMPER,RR | 92160 | 92160-3774 | 1 | ||
DAMPER | 92160A | 92160-3879 | 8 | ||
CLAMP | 92170 | 92170-3718 | 4 | ||
CLAMP | 92170A | 92170-3748 | 2 | ||
CLAMP | 92170B | 92170-3754 | 2 | ||
SHIM | 92180 | 92180-3703 | AR | ||
SHIM | 92180A | 92180-3704 | AR | ||
TUBE,MANIFOLD-HULL | 92190 | 92190-3953 | 1 | ||
TUBE | 92191 | 92191-3733 | 1 | ||
TUBE,CHAMBER-MUFFLER | 92191A | 92191-3756 | 1 | ||
TUBE,HEAD-EXHAUST | 92191B | 92191-3766 | 1 |
GASKET,EXHAUST MANIFOLD | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST-JOINT | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,MUFFLER | |
REF # | 11060B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,JOINT-MUFFLER | |
REF # | 11060C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST-MANIFOLD | |
REF # | 11060D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,EXHAUST-MANIFOLD | |
REF # | 11060E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,FR | |
REF # | 18001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,RR | |
REF # | 18001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST | |
REF # | 18049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING | |
REF # | 43058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING | |
REF # | 43058A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING | |
REF # | 43058B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ELBOW | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MANIFOLD-EXHAUST | |
REF # | 59081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X35 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X40 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FITTING,HOSE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,3X14 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,CAP,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,3MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,8.2X18X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,10.2X20X1.5 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,6MM | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022C |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,CYLINDER HEAD | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=368.3 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,7.5X10.5X9 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X80 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X18 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,10X50 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,10X145 | |
REF # | 92150C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X30 | |
REF # | 92150D |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
DAMPER,RR | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHIM | |
REF # | 92180 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SHIM | |
REF # | 92180A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
TUBE,MANIFOLD-HULL | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,CHAMBER-MUFFLER | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,HEAD-EXHAUST | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
