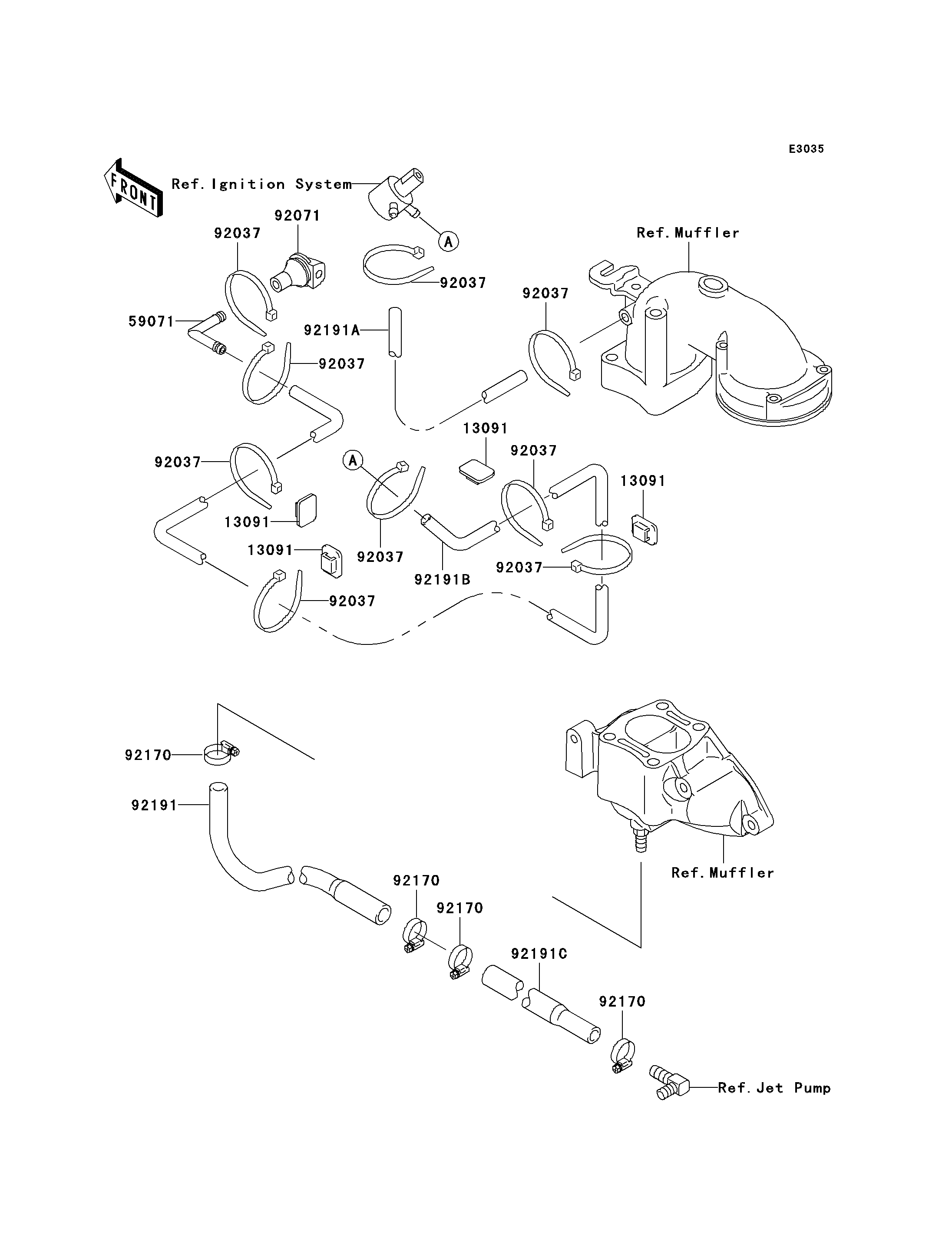

Parts Diagrams |
13091
13091
13091
13091
59071
92037
92037
92037
92037
92037
92037
92037
92037
92037
92071
92170
92170
92170
92170
92191
92191A
92191B
92191C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,BAND | 13091 | 13091-3764 | 4 | ||
| JOINT | 59071 | 59071-3736 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 9 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| CLAMP | 92170 | 92170-3718 | 4 | ||
| TUBE,HULL-ENGINE | 92191 | 92191-3716 | 1 | ||
| TUBE | 92191A | 92191-3760 | 1 | ||
| TUBE | 92191B | 92191-3761 | 1 | ||
| TUBE,JET PUMP-HULL | 92191C | 92191-3765 | 1 |
| HOLDER,BAND | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| TUBE,HULL-ENGINE | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,JET PUMP-HULL | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
