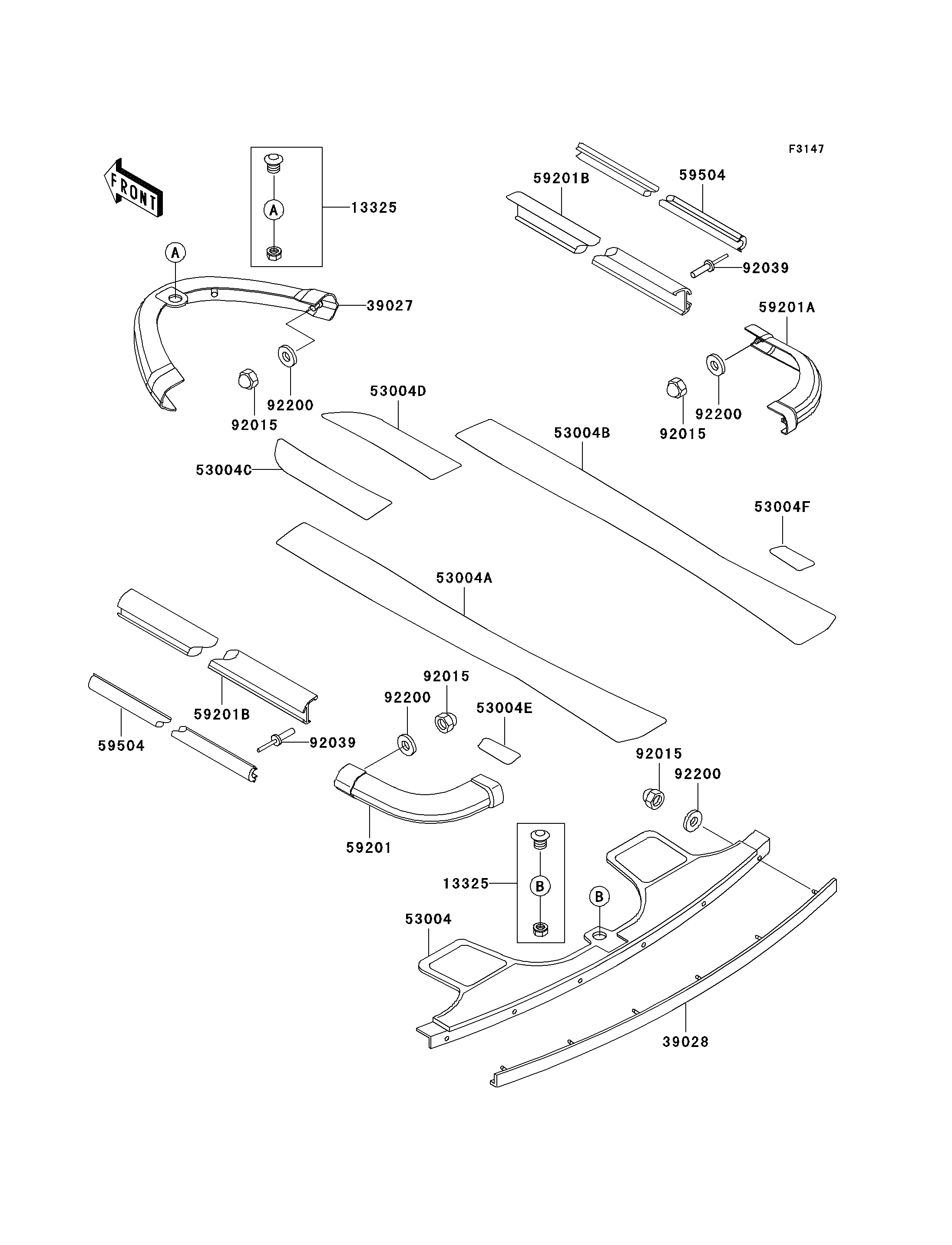

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BUSHING-ASSY,WHITE | 13325 | 13325-3704 | 2 | ||
| BUMPER-FRONT,F.RED | 39027 | 39027-3725-6L | 1 | ||
| BUMPER-REAR,F.RED | 39028 | 39028-3728-6L | 1 | ||
| MAT,REAR BUMPER,F.RED | 53004 | 53004-3745-6L | 1 | ||
| MAT,DECK,CNT,LH,F.RED | 53004A | 53004-3759-6L | 1 | ||
| MAT,DECK,CNT,RH,F.RED | 53004B | 53004-3760-6L | 1 | ||
| MAT,DECK,FR,LH,F.RED | 53004C | 53004-3761-6L | 1 | ||
| MAT,DECK,FR,RH,F.RED | 53004D | 53004-3762-6L | 1 | ||
| MAT,DECK,RR,LH,F.RED | 53004E | 53004-3763-6L | 1 | ||
| MAT,DECK,RR,RH,F.RED | 53004F | 53004-3764-6L | 1 | ||
| BUMPER,CORNER,LH,F.RED | 59201 | 59201-3751-6L | 1 | ||
| BUMPER,CORNER,RH,F.RED | 59201A | 59201-3752-6L | 1 | ||
| BUMPER,SIDE,F.RED | 59201B | 59201-3760-6L | 2 | ||
| INSERT-BOAT FENDER,F.RED | 59504 | 59504-3714-6L | 2 | ||
| NUT,CAP,5MM | 92015 | 92015-3802 | 16 | ||
| RIVET | 92039 | 92039-3747 | 26 | ||
| WASHER,5.9X16X1.5 | 92200 | 92200-3714 | 16 |
