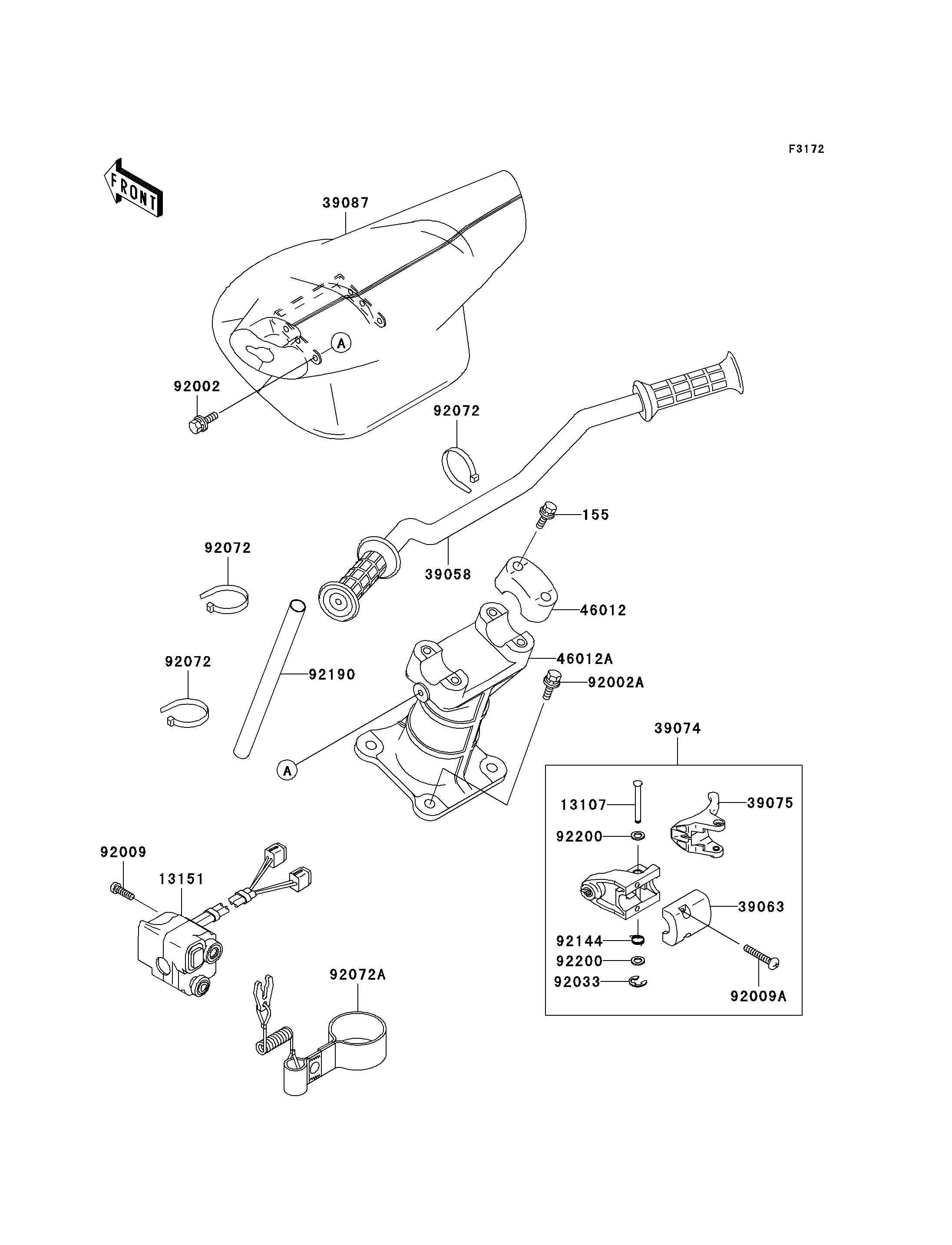

1998 750 STX - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
155
13107
13151
39058
39063
39074
39075
39087
46012
46012A
92002
92002A
92009
92009A
92033
92072
92072
92072
92072A
92144
92190
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X35 155 155R0835 4
SHAFT 13107 13107-3740 1
SWITCH-COMP,STOP&START&TRIM 13151 13151-3733 1
HANDLE-COMP,F.RED 39058 39058-3712-6L 1
HOUSING-CONTROL 39063 39063-3722 1
LEVER-ASSY-THROTTLE 39074 39074-3719 1
LEVER-THROTTLE 39075 39075-3714 1
PAD-HANDLE,GRAY 39087 39087-3720-LG 1
HOLDER-HANDLE,UPP 46012 46012-3720 2
HOLDER-HANDLE,LWR 46012A 46012-3722 1
BOLT,6X12 92002 92002-3763 2
BOLT,8X25 92002A 92002-3774 4
SCREW,5X30 92009 92009-3836 3
SCREW,6X30 92009A 92009-3837 2
RING-SNAP 92033 92033-3723 1
BAND 92072 92072-3778 3
BAND,TETHER SWITCH 92072A 92072-3816 1
SPRING 92144 92144-3749 1
TUBE,22X24X270 92190 92190-3935 1
WASHER 92200 92200-3738 2
