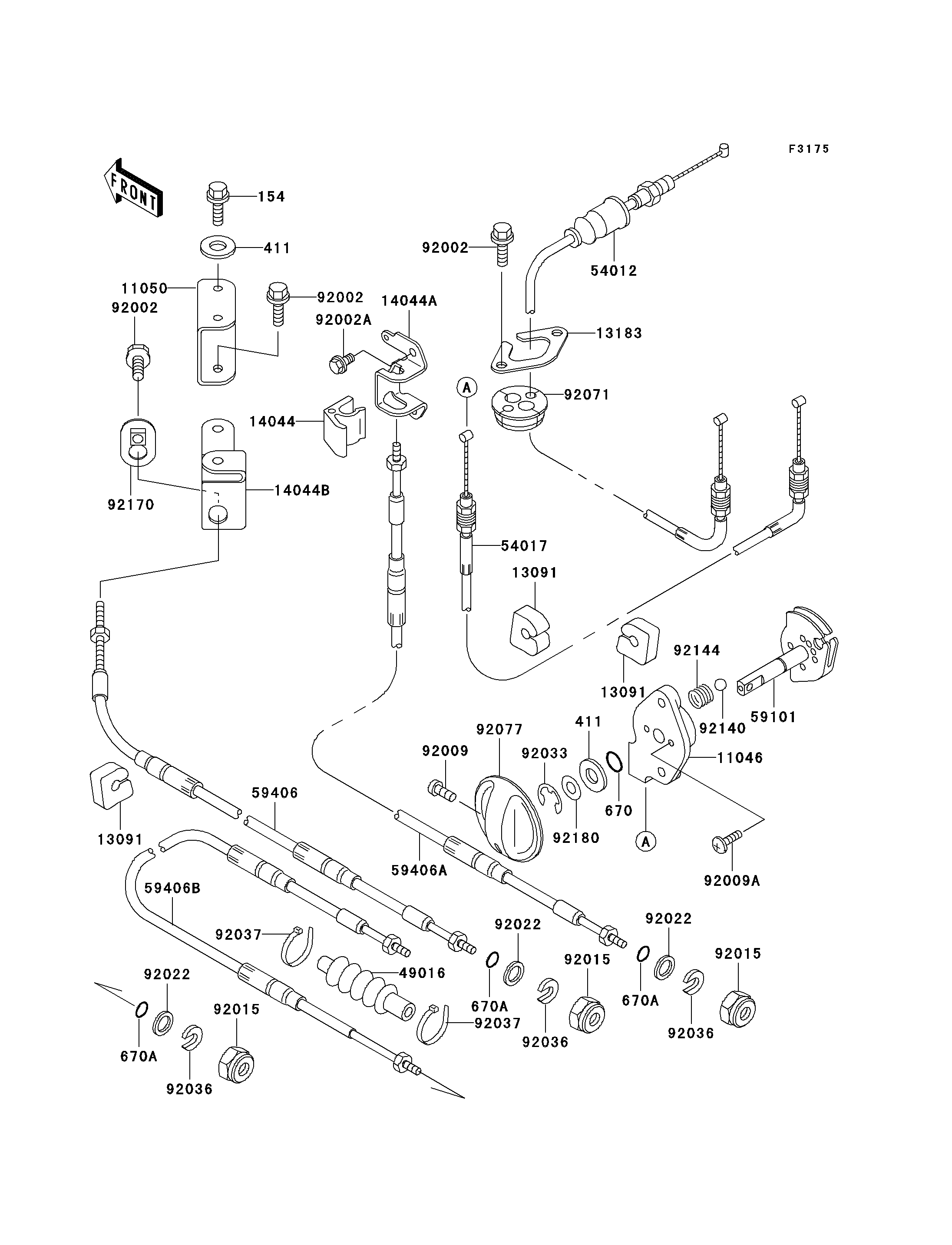

1998 750 STX - Cables

DOWNLOAD PDF
SELECT A NEW PART
154
411
411
670
670A
670A
670A
11046
11050
13091
13091
13091
13183
14044
14044A
14044B
49016
54012
54017
59101
59406
59406A
59406B
92002
92002
92002
92002A
92009
92009A
92015
92015
92015
92022
92022
92022
92033
92036
92036
92036
92037
92037
92071
92077
92140
92144
92170
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WP-SMALL,8X30 154 154R0830 2
WASHER-PLAIN,8MM 411 411S0800 3
O RING,8MM 670 670B1508 1
O RING,11MM 670A 670B2011 3
BRACKET,STARTER CABLE 11046 11046-3712 1
BRACKET,CABLE HOLDER 11050 11050-3728 1
HOLDER 13091 13091-3712 3
PLATE 13183 13183-3810 1
HOLDER-CABLE,STEERING 14044 14044-3714 1
HOLDER-CABLE,STEERING 14044A 14044-3717 1
HOLDER-CABLE 14044B 14044-3732 1
COVER-SEAL,TILT CABLE 49016 49016-3702 1
CABLE-THROTTLE 54012 54012-3744 1
CABLE-STARTER 54017 54017-3729 1
REEL,STARTER CABLE 59101 59101-3704 1
CABLE-STRG 59406 59406-3736 1
CABLE-STRG,REVERSE 59406A 59406-3764 1
CABLE-STRG,TILT 59406B 59406-3765 1
BOLT,6X16 92002 92002-3728 5
BOLT,6X12 92002A 92002-3763 2
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
NUT,20MM 92015 92015-526 3
WASHER 92022 92022-535 3
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92036 92036-501 3
CLAMP 92037 92037-1173 2
GROMMET,HARNESS 92071 92071-3790 1
KNOB 92077 92077-3728 1
BALL,3MM 92140 92140-3702 2
SPRING 92144 92144-3712 2
CLAMP,CABLE 92170 92170-3756 1
SHIM,8.5X18X0.15 92180 92180-3702 1
