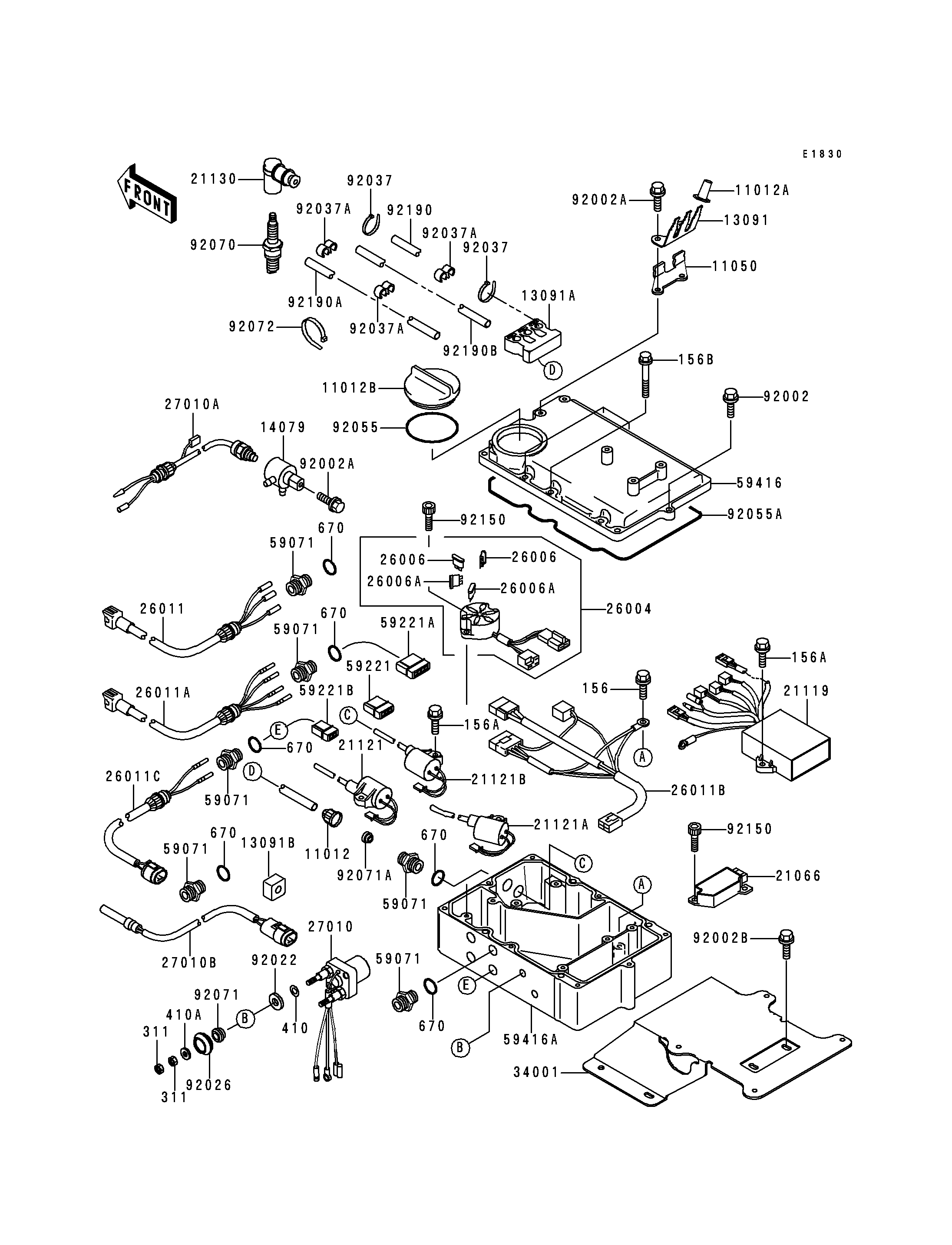

1998 900 STX - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012A
11012A
11012B
11012B
11050
11050
13091
13091
13091A
13091A
13091B
13091B
14079
14079
21066
21066
21119
21119
21121
21121
21121A
21121A
21121B
21121B
21130
21130
26004
26004
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
27010
27010
27010A
27010A
27010B
27010B
34001
34001
59071
59071
59071
59071
59071
59071
59071
59071
59071
59071
59071
59071
59221
59221
59221A
59221A
59221B
59221B
59416
59416
59416A
59416A
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92022
92022
92026
92026
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055A
92055A
156
156
156A
156A
156A
156A
156B
156B
311
311
311
311
410
410
410A
410A
670
670
670
670
670
670
670
670
670
670
670
670
92070
92070
92071
92071
92071A
92071A
92072
92072
92150
92150
92150
92150
92190
92190
92190A
92190A
92190B
92190B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 3
CAP,HOLDER 11012A 11012-3768 3
CAP 11012B 11012-3791 1
BRACKET 11050 11050-3704 1
HOLDER 13091 13091-3784 1
HOLDER 13091A 13091-3785 1
HOLDER 13091B 13091-3804 1
HOLDER-ASSY 14079 14079-3710 1
REGULATOR-VOLTAGE 21066 21066-3712 1
IGNITER 21119 21119-3747 1
COIL-IGNITION,#1 21121 21121-3708 1
COIL-IGNITION,#2 21121A 21121-3709 1
COIL-IGNITION,#3 21121B 21121-3710 1
CAP-SPARK PLUG 21130 21130-3706 3
FUSE-ASSY 26004 26004-3716 1
FUSE,10A-R 26006 26006-1007 2
FUSE,30A-G 26006A 26006-1067 2
WIRE-LEAD,STOP SWITCH 26011 26011-3817 1
WIRE-LEAD,MAIN STARTER SWITCH 26011A 26011-3818 1
WIRE-LEAD,REGULATOR 26011B 26011-3819 1
WIRE-LEAD 26011C 26011-3829 1
SWITCH,STARTER 27010 27010-3737 1
SWITCH 27010A 27010-3749 1
SWITCH 27010B 27010-3752 1
STAND,ELECTRIC CASE 34001 34001-3712 1
JOINT 59071 59071-3001 7
CONNECTOR-CORD 59221 59221-3704 1
CONNECTOR-CORD 59221A 59221-3705 1
CONNECTOR-CORD 59221B 59221-3706 1
CASE-ELECTRIC,UPP 59416 59416-3735 1
CASE-ELECTRIC,LWR 59416A 59416-3741 1
BOLT,6X25 92002 92002-3714 8
BOLT,6X16 92002A 92002-3728 3
BOLT,6X12 92002B 92002-3763 2
WASHER 92022 92022-3035 2
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 6
CLAMP,HOSE 92037A 92037-1603 3
RING-O 92055 92055-1292 1
RING-O,ELECTRIC 92055A 92055-3738 1
BOLT-WP,6X14 156 156R0614 1
BOLT-WP,6X20 156A 156R0620 5
BOLT-WP 156B 156R0690 4
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
O RING,16MM 670 670B2016 7
PLUG-SPARK,BR9ES(NGK),SOLID 92070 92070-1157 3
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-527 3
BAND 92072 92072-3778 2
BOLT,SOCKET,6X18 92150 92150-3775 4
TUBE,HIGH TENSION,L=330 92190 92190-3707 1
TUBE,8X10X565 92190A 92190-3942 1
TUBE,8X10X425 92190B 92190-3943 1
