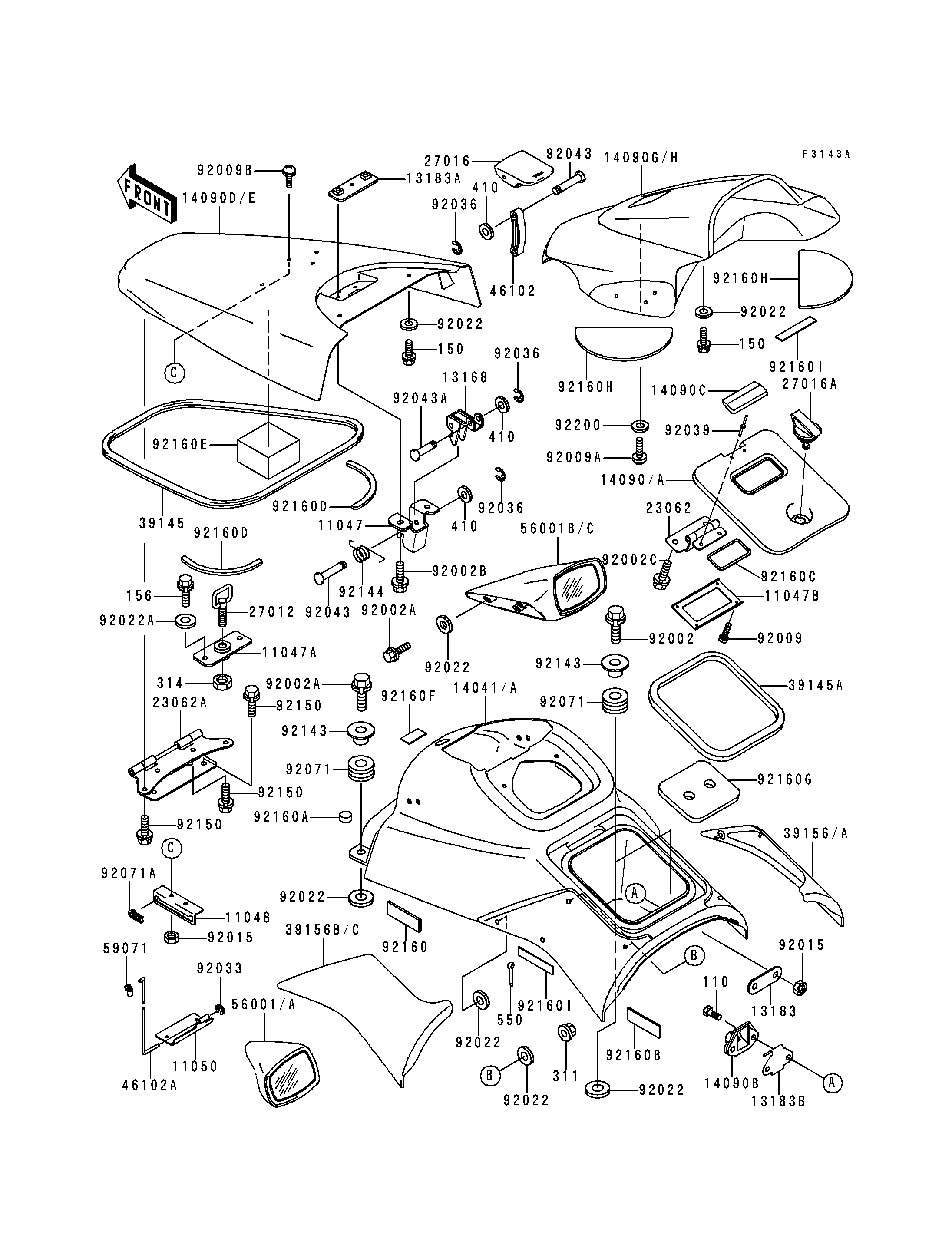

1998 900 STX - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
11047
11047
11047A
11047A
11047B
11047B
11048
11048
11050
11050
13168
13168
13183
13183
13183A
13183A
13183B
13183B
14041A
14041A
14090A
14090A
14090B
14090B
14090C
14090C
14090E
14090E
14090H
14090H
23062
23062
23062A
23062A
27012
27012
27016
27016
27016A
27016A
39145
39145
39145A
39145A
39156A
39156A
39156C
39156C
46102
46102
46102A
46102A
56001A
56001A
56001C
56001C
59071
59071
110
110
150
150
150
150
156
156
311
311
314
314
410
410
410
410
410
410
550
550
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92002C
92002C
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92033
92033
92036
92036
92036
92036
92036
92036
92039
92039
92043
92043
92043
92043
92043A
92043A
92071
92071
92071
92071
92071A
92071A
92143
92143
92143
92143
92144
92144
92150
92150
92150
92150
92150
92150
92160
92160
92160A
92160A
92160B
92160B
92160C
92160C
92160D
92160D
92160D
92160D
92160E
92160E
92160F
92160F
92160G
92160G
92160H
92160H
92160H
92160H
92160I
92160I
92160I
92160I
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT SIDE LOCK 11047 11047-3732 1
BRACKET,HATCH COVER HINGE 11047A 11047-3788 1
BRACKET,METER HOLDER 11047B 11047-3789 1
BRACKET,HATCH COVER 11048 11048-3777 1
BRACKET,HINGE 11050 11050-3723 1
LEVER,HATCH LOCK 13168 13168-3720 1
PLATE 13183 13183-3754 1
PLATE,HATCH LOCK 13183A 13183-3792 1
PLATE,STORAGE LOCK 13183B 13183-3832 1
COVER-COMP,HANDLE,P.BOULOGNE 14041A 14041-3705-7X 1
COVER,STORAGE,P.BOULOGNE 14090A 14090-3723-7X 1
COVER,STORAGE LOCK 14090B 14090-3729 1
COVER,HINGE 14090C 14090-3793 1
COVER,HATCH,P.BOULOGNE 14090E 14090-3803-7X 1
COVER,HATCH COVER,P.BOULOGNE 14090H 14090-3805-VG 1
BRACKET-COMP,HINGE 23062 23062-3706 1
BRACKET-COMP,HATCH COVER HINGE 23062A 23062-3707 1
HOOK,HATCH COVER LOCK 27012 27012-3769 1
LOCK-ASSY,HATCH COVER CAP 27016 27016-3738 1
LOCK-ASSY,STORAGE COVER 27016A 27016-3739 1
TRIM-SEAL,FRONT HATCH 39145 39145-3736 1
TRIM-SEAL,L=784 39145A 39145-3737 1
PAD,HANDLE COVER,RH,BOULOGNE 39156A 39156-3809-ML 1
PAD,HANDLE COVER,LH,BOULOGNE 39156C 39156-3810-ML 1
ROD,CONNECTION 46102 46102-3724 1
ROD,HATCH COVER HINGE 46102A 46102-3726 1
MIRROR-ASSY,LH,BOULOGNE 56001A 56001-3707-6Q 1
MIRROR-ASSY,RH,BOULOGNE 56001C 56001-3708-6Q 1
JOINT 59071 59071-3743 1
BOLT,6X16 110 110R0616 2
BOLT-WS,6X14 150 150R0614 4
BOLT-WP,6X20 156 156R0620 2
NUT-HEX,5MM 311 311R0500 4
NUT-HEX-FINE,10MM 314 314R1000 1
WASHER-PLAIN-SMALL,6MM 410 410S0600 3
PIN-COTTER 550 550S2020 4
BOLT,6X35 92002 92002-3715 2
BOLT,6X30 92002A 92002-3726 8
BOLT,6X20 92002B 92002-3755 2
BOLT,6X12 92002C 92002-3763 2
SCREW,TAPPING,4X14 92009 92009-3762 4
SCREW,5X16 92009A 92009-3789 2
SCREW,6X18 92009B 92009-3805 2
NUT,6MM 92015 92015-3767 4
WASHER,6.5X20X1.5 92022 92022-3710 22
WASHER,6.2X20X2 92022A 92022-3714 2
RING-SNAP,E-TYPE,4MM 92033 92033-3722 1
RING-SNAP 92036 92036-518 3
RIVET,4MM 92039 92039-3703 2
PIN,6X27.5 92043 92043-3732 2
PIN,6X20 92043A 92043-3738 1
GROMMET 92071 92071-3716 4
GROMMET 92071A 92071-3809 1
COLLAR 92143 92143-3750 4
SPRING 92144 92144-3731 1
BOLT,6X18 92150 92150-3729 6
DAMPER 92160 92160-3720 2
DAMPER 92160A 92160-3775 2
DAMPER,HANDLE COVER 92160B 92160-3811 2
DAMPER,METER 92160C 92160-3816 1
DAMPER 92160D 92160-3817 2
DAMPER 92160E 92160-3824 1
DAMPER,HANDLE COVER 92160F 92160-3825 1
DAMPER 92160G 92160-3826 1
DAMPER 92160H 92160-3895 2
DAMPER 92160I 92160-3898 5
WASHER,5.9X16X1.5 92200 92200-3714 2
