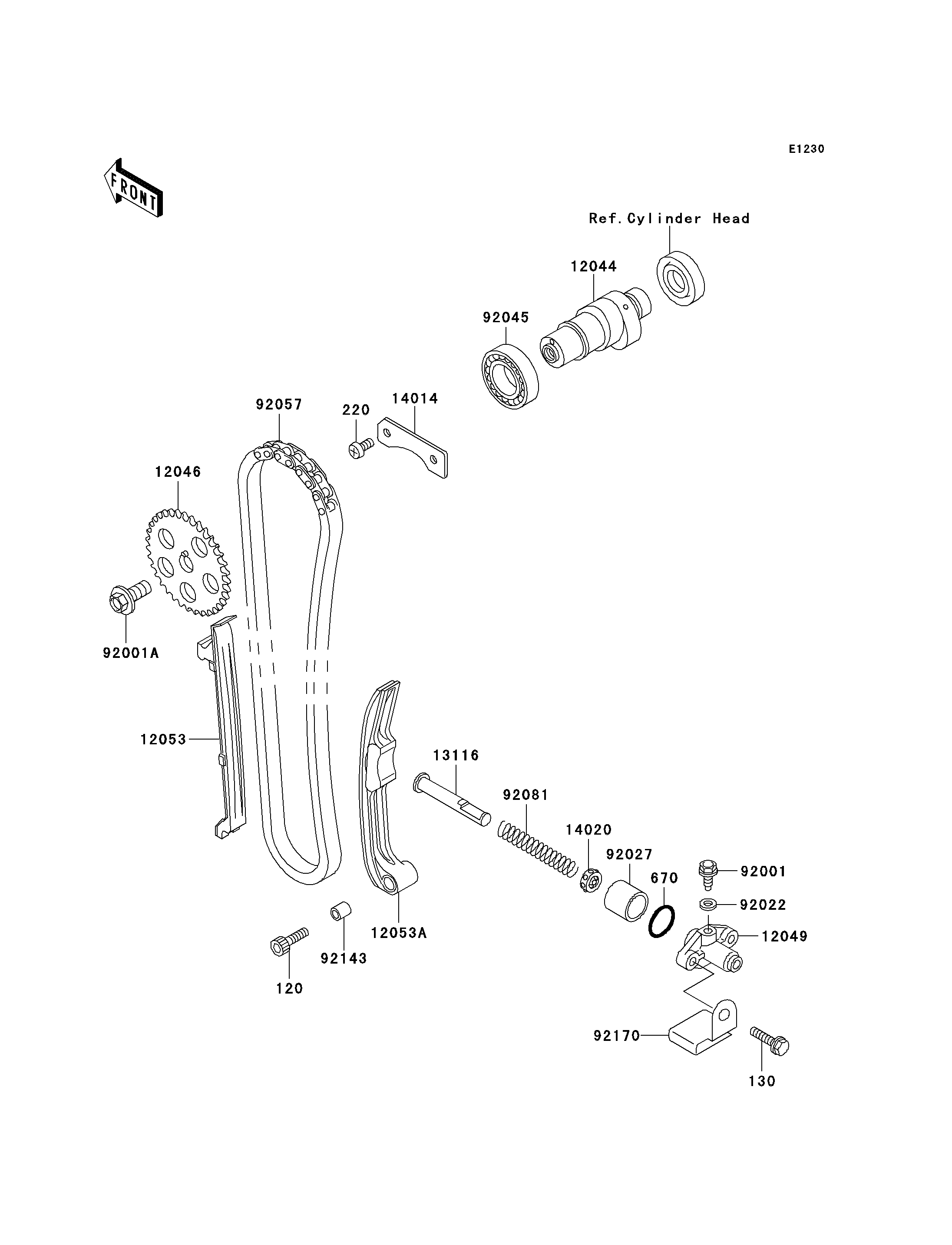

1993 Bayou 220 - Camshaft(s)/Tensioner
120
130
220
670
12044
12046
12049
12053
12053A
13116
14014
14020
92001
92001A
92022
92027
92045
92057
92081
92143
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X22 | 120 | 120P0622 | 1 | ||
BOLT-FLANGED | 130 | 130Y0625 | 2 | ||
SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 2 | ||
O RING,21MM | 670 | 670B2021 | 1 | ||
CAMSHAFT-VALVE | 12044 | 12044-1211 | 1 | ||
SPROCKET,CAM CHAIN | 12046 | 12046-1059 | 1 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1055 | 1 | ||
GUIDE-CHAIN,FR | 12053 | 12053-1224 | 1 | ||
GUIDE-CHAIN,TENSIONER | 12053A | 12053-1225 | 1 | ||
ROD-PUSH | 13116 | 13116-1129 | 1 | ||
PLATE-POSITION | 14014 | 14014-1054 | 1 | ||
RETAINER,TENSIONER | 14020 | 14020-1054 | 1 | ||
BOLT,TENSIONER ADJUST | 92001 | 92001-1155 | 1 | ||
BOLT,10X23 | 92001A | 92001-1859 | 1 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
COLLAR,TENSIONER | 92027 | 92027-1273 | 1 | ||
BEARING-BALL,#6005C4 | 92045 | 92045-1056 | 1 | ||
CHAIN,CAMSHAFT | 92057 | 92057-1380 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1105 | 1 | ||
COLLAR,6X8X10.2 | 92143 | 92143-1253 | 1 | ||
CLAMP | 92170 | 92170-1471 | 1 |
