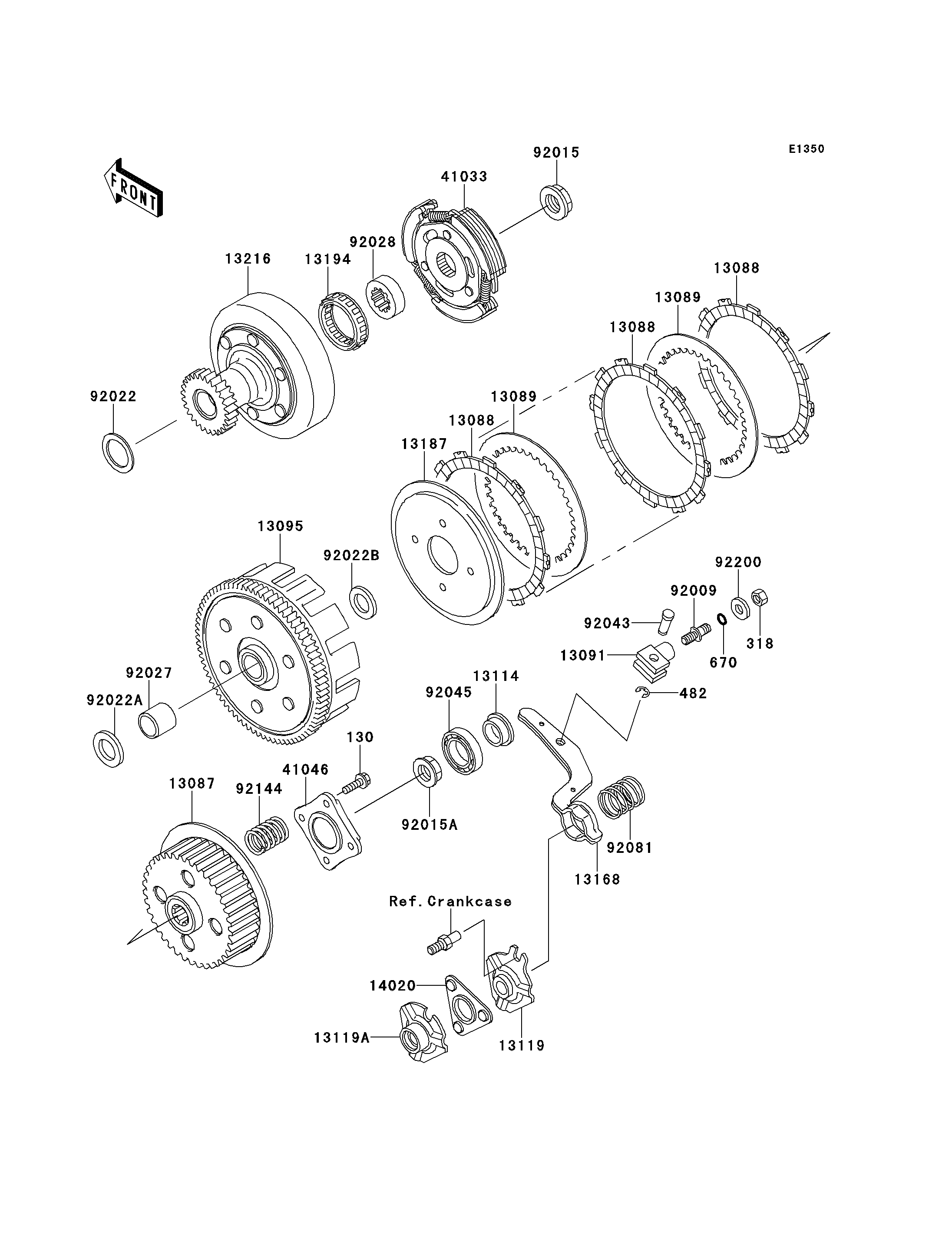

1993 Bayou 220 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
130
318
482
670
13087
13088
13088
13088
13089
13089
13091
13095
13114
13119
13119A
13168
13187
13194
13216
14020
41033
41046
92009
92015
92015A
92022
92022A
92022B
92027
92028
92043
92045
92081
92144
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130P0620 4
NUT-HEX-SMALL,8MM 318 318B0800 1
CIRCLIP-TYPE-E,6MM 482 482J6000 1
O RING,8MM 670 670B1508 1
HUB-CLUTCH 13087 13087-1089 1
PLATE-FRICTION 13088 13088-1068 5
PLATE-CLUTCH 13089 13089-1076 4
HOLDER,CLUTCH RELEASE 13091 13091-1341 1
HOUSING-COMP-CLUTCH 13095 13095-1163 1
PUSHER-CLUTCH 13114 13114-1057 1
CAM-RELEASE 13119 13119-1074 1
CAM-RELEASE 13119A 13119-1077 1
LEVER 13168 13168-1354 1
PLATE-CLUTCH OPERATING 13187 13187-1061 1
CLUTCH-ONEWAY 13194 13194-1055 1
GEAR-COMP,CLUTCH 13216 13216-1120 1
RETAINER,CLUTCH RELEASE 14020 14020-1093 1
HUB-ASSY,CLUTCH 41033 41033-1713 1
HOUSING-BEARING 41046 41046-1082 1
SCREW,CLUTCH RELEASE 92009 92009-1303 1
NUT,18MM 92015 92015-1512 1
NUT 92015A 92015-1581 1
WASHER,28.1X34X1.0 92022 92022-1731 1
WASHER,20.2X36X2 92022A 92022-1880 1
WASHER,20.2X35X4 92022B 92022-1881 1
COLLAR,20X25X21 92027 92027-1798 1
BUSHING,CLUTCH,FR 92028 92028-1370 1
PIN,CLUTCH RELEASE 92043 92043-1230 1
BEARING-BALL 92045 92045-1202 1
SPRING 92081 92081-1681 1
SPRING,CLUTCH 92144 92144-1160 4
WASHER,8.5X18X2.3 92200 92200-1213 1
