Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

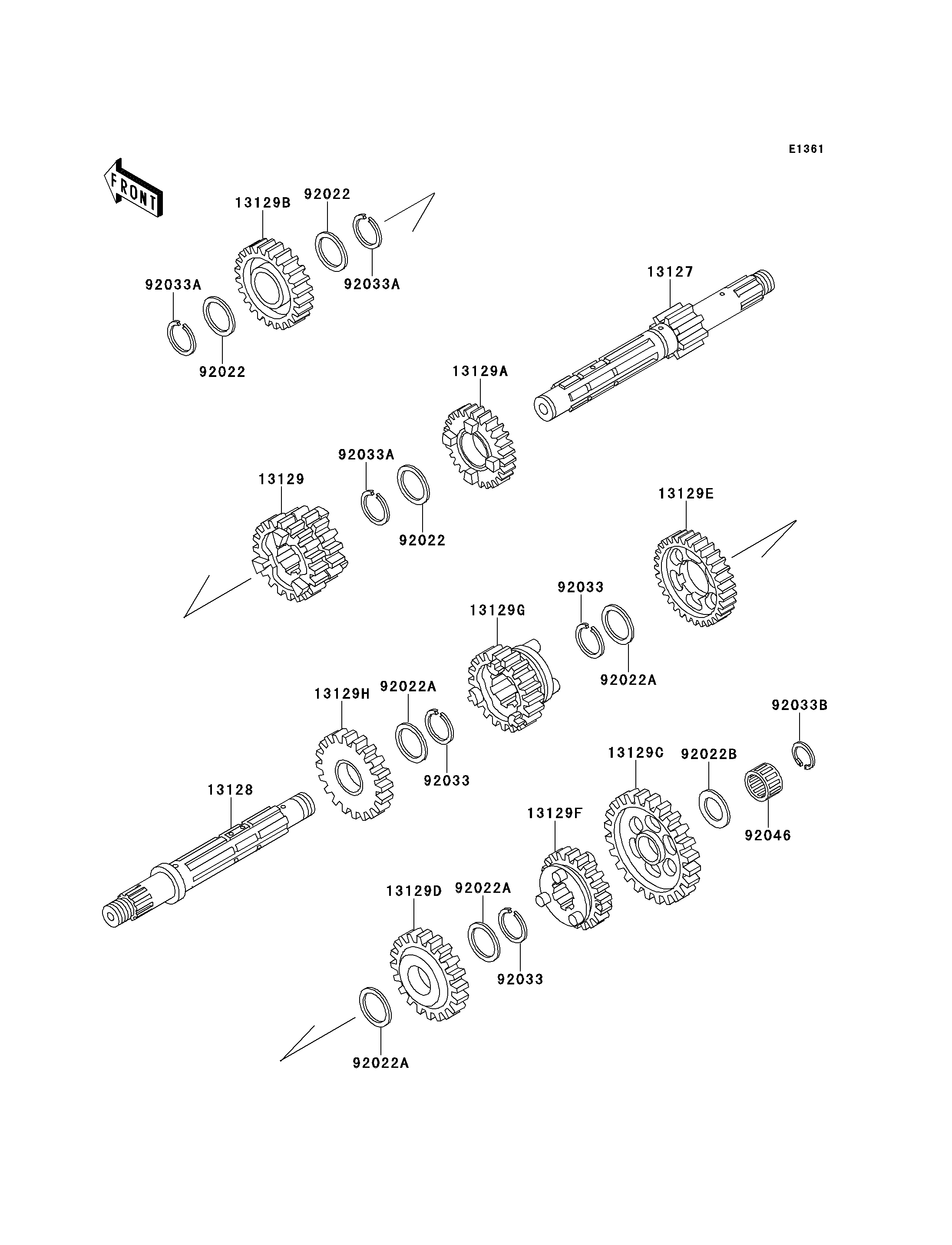

Parts Diagrams |
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
13129H
92022
92022
92022
92022A
92022A
92022A
92022A
92022B
92033
92033
92033
92033A
92033A
92033A
92033B
92046
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1152 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1146 | 1 | ||
| GEAR,INPUT 2ND&3RD,23T&19T | 13129 | 13129-1860 | 1 | ||
| GEAR,INPUT 4TH,26 | 13129A | 13129-1861 | 1 | ||
| GEAR,INPUT TOP,28T | 13129B | 13129-1862 | 1 | ||
| GEAR,OUTPUT LOW,38T | 13129C | 13129-1864 | 1 | ||
| GEAR,OUTPUT 2ND,32T | 13129D | 13129-1865 | 1 | ||
| GEAR,OUTPUT 3RD,27T | 13129E | 13129-1866 | 1 | ||
| GEAR,OUTPUT 4TH,24T | 13129F | 13129-1867 | 1 | ||
| GEAR,OUTPUT TOP,22T | 13129G | 13129-1868 | 1 | ||
| GEAR,REVERSE,33T | 13129H | 13129-1869 | 1 | ||
| WASHER | 92022 | 92022-1885 | 3 | ||
| WASHER,22.3X27X0.5 | 92022A | 92022-198 | 4 | ||
| WASHER,15.3X25X1 | 92022B | 92022-279 | 1 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 3 | ||
| RING-SNAP,18MM | 92033A | 92033-029 | 3 | ||
| RING-SNAP,14X17.5X1.2 | 92033B | 92033-1234 | 1 | ||
| BEARING-NEEDLE,K15X21X15 | 92046 | 92046-1173 | 1 |
