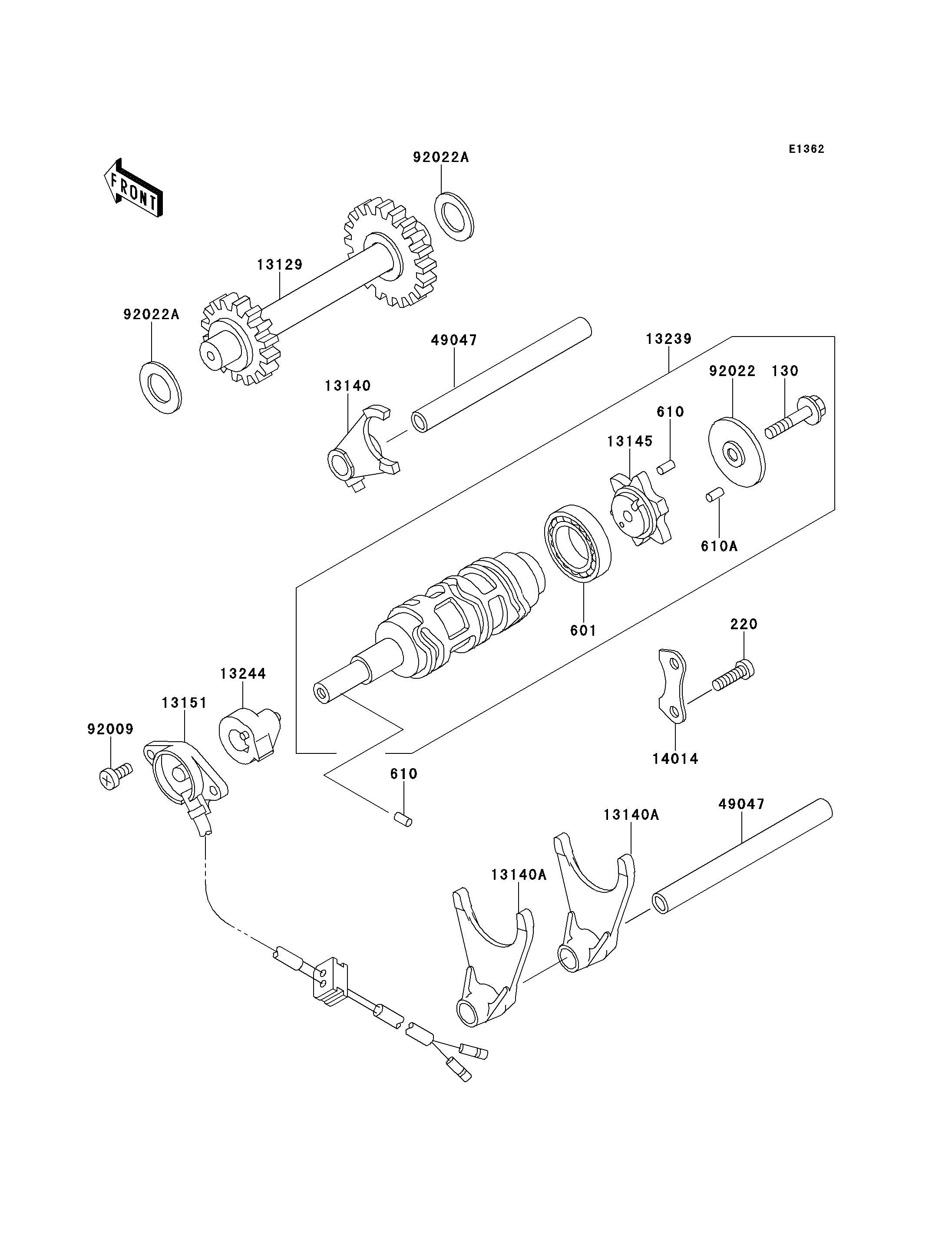

1996 Bayou 220 - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
130
220
601
610
610
610A
13129
13140
13140A
13140A
13145
13151
13239
13244
14014
49047
49047
92009
92022
92022A
92022A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X35 130 130G0635 1
SCREW-PAN-CROS,6X14 220 220B0614 2
BEARING-BALL 601 601A6005 1
ROLLER,4X6 610 610A0406 2
ROLLER,4X12 610A 610A0412 6
GEAR,REVERSE,22T&27T 13129 13129-1870 1
FORK-SHIFT 13140 13140-1161 1
FORK-SHIFT 13140A 13140-1162 2
CAM-CHANGE DRUM 13145 13145-1064 1
SWITCH-COMP,NEUTRAL 13151 13151-1067 1
DRUM-ASSY-CHANGE 13239 13239-1145 1
STOPPER-ASSY,REVERSE 13244 13244-1055 1
PLATE-POSITION 14014 14014-1087 1
ROD-SHIFT 49047 49047-1073 2
SCREW,5X14 92009 92009-1341 2
WASHER,CHANGE DRUM 92022 92022-1886 1
WASHER,15.3X25X1 92022A 92022-279 2
