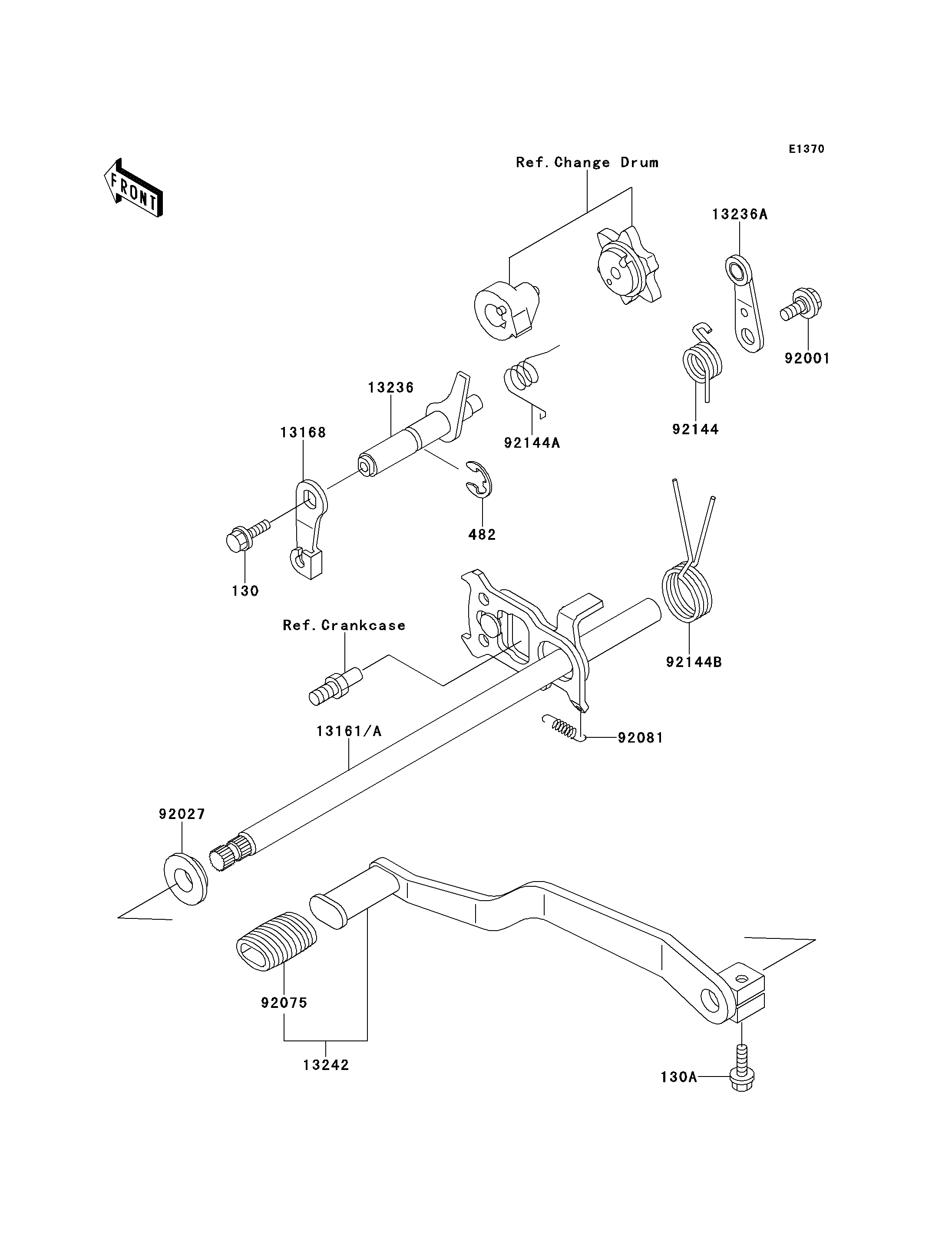

130
130A
482
13161
13168
13236
13236A
13242
92001
92027
92075
92081
92144
92144A
92144B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10,BLACK 130 130C0610 1
BOLT-FLANGED,6X20,BLACK 130A 130S0620 1
CIRCLIP-TYPE-E,10MM 482 482L0100 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1152 1
LEVER,REVERSE CABLE 13168 13168-1357 1
LEVER-COMP,REVERSE 13236 13236-1157 1
LEVER-COMP,CHANGE POSITION 13236A 13236-1164 1
LEVER-ASSY-CHANGE,PEDAL 13242 13242-1234 1
BOLT,GEAR CHANGE LEVER 92001 92001-1715 1
COLLAR,L=5.2 92027 92027-1891 1
DAMPER,CHANGE PEDAL 92075 92075-1585 1
SPRING,CHANGE LEVER 92081 92081-1753 1
SPRING 92144 92144-1162 1
SPRING 92144A 92144-1163 1
SPRING,CHANGE SHAFT RETURN 92144B 92144-1359 1
