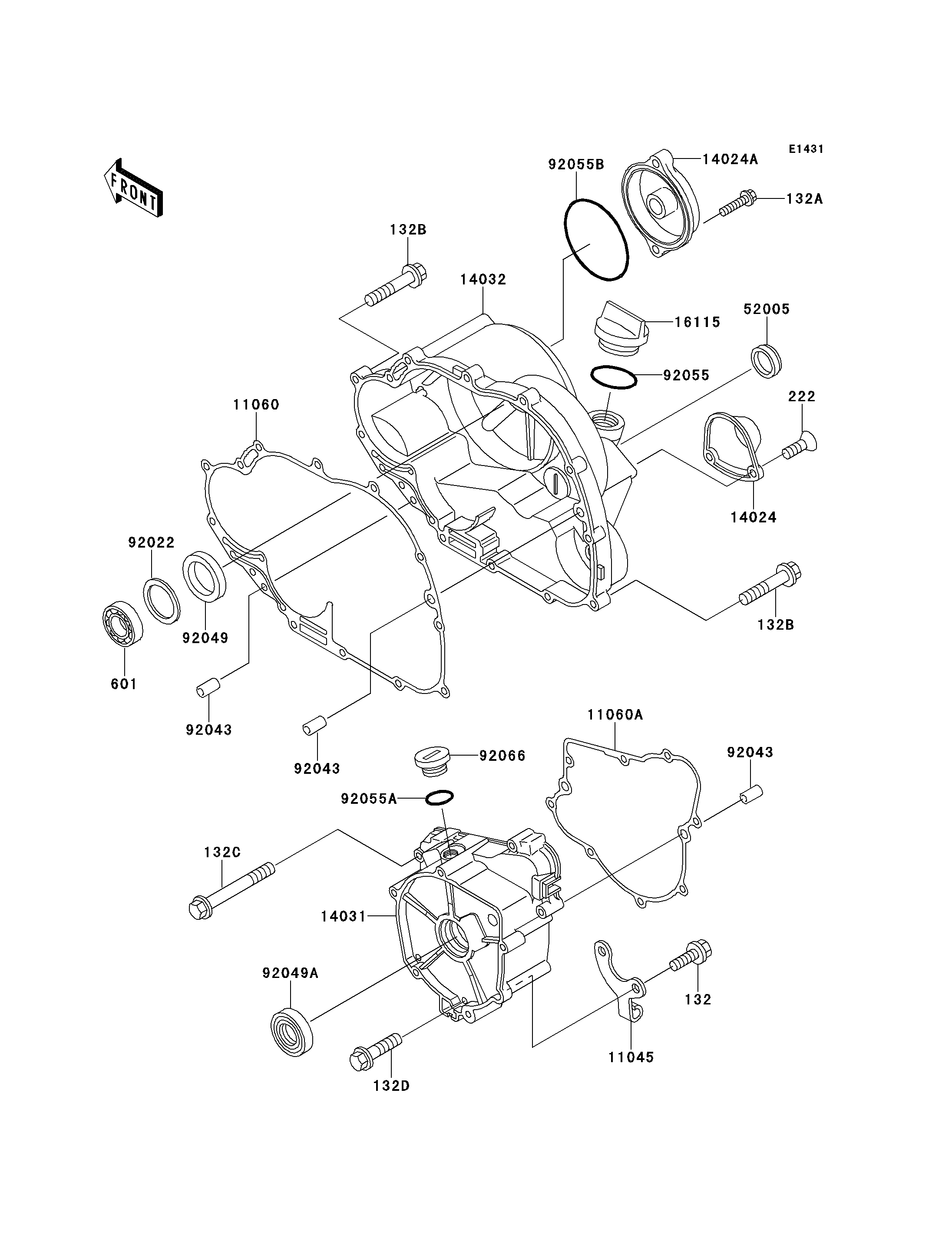

1996 Bayou 220 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
132B
132C
132D
222
601
11045
11060
11060A
14024
14024A
14031
14032
16115
52005
92022
92043
92043
92043
92049
92049A
92055
92055A
92055B
92066
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0614 2
BOLT-FLANGED-SMALL 132A 132J0625 2
BOLT-FLANGED-SMALL 132B 132J0630 13
BOLT-FLANGED-SMALL 132C 132J0635 4
BOLT-FLANGED-SMALL 132D 132J0670 3
SCREW-CSK-RD-CROS 222 222C0512 2
BEARING-BALL 601 601A6002 1
BRACKET 11045 11045-1828 1
GASKET,CLUTCH COVER 11060 11060-1648 1
GASKET,GENERATOR 11060A 11060-1649 1
COVER 14024 14024-1486 1
COVER,OIL FILTER 14024A 14024-1488 1
COVER-GENERATOR 14031 14031-1277 1
COVER-CLUTCH 14032 14032-1428 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1009 1
WASHER,21X31.5X1.0 92022 92022-1624 1
PIN,6.2X8X14 92043 92043-1263 4
SEAL-OIL 92049 92049-1293 1
SEAL-OIL,TC25356 92049A 92049-1317 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O 92055A 92055-1146 1
RING-O,63.6X2.4 92055B 92055-1433 1
PLUG,COVER 92066 92066-1163 1
