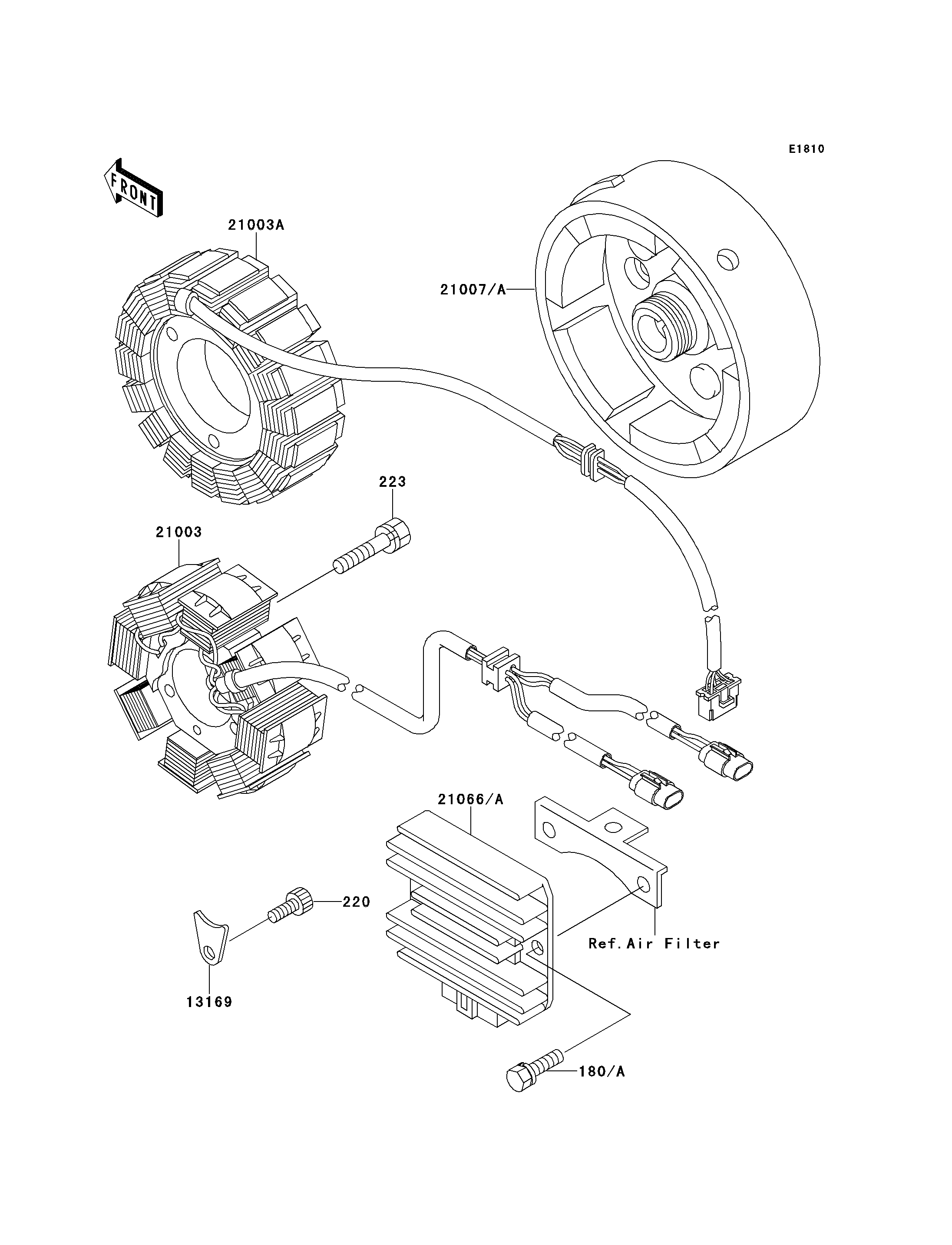

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180A 180D0616 2
SCREW-PAN-CROS,6X12 220 220B0612 1
SCREW-PAN-WS-CROS 223 223B0530 3
PLATE,HARNESS 13169 13169-1788 1
STATOR 21003 21003-1262 1
ROTOR 21007 21007-1161 1
REGULATOR-VOLTAGE 21066A 21066-1052 1
