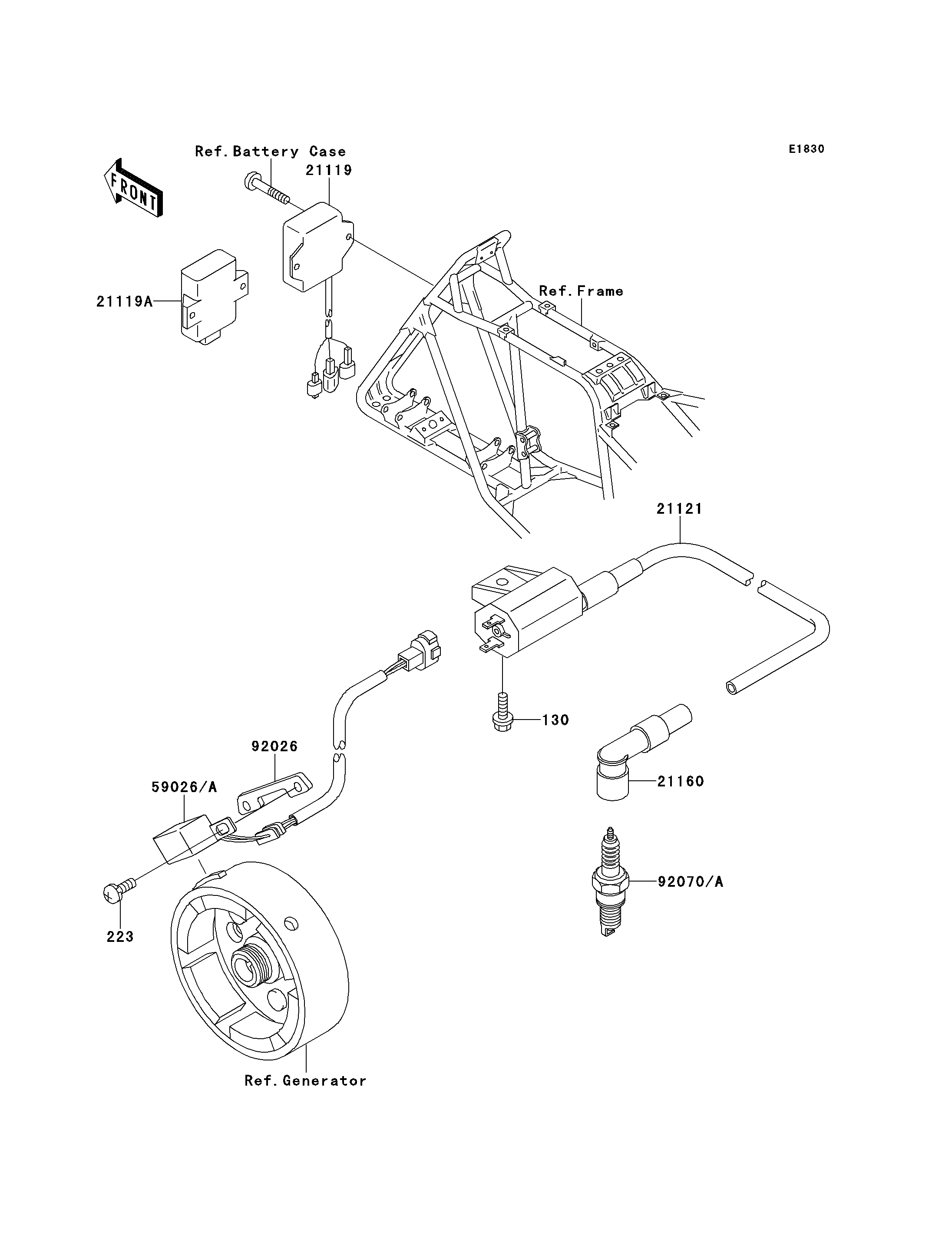

130
223
21119A
21121
21160
59026A
92026
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0616 1
SCREW-PAN-WS-CROS 223 223B0516 2
IGNITER 21119A 21119-1457 1
COIL-IGNITION 21121 21121-1160 1
CAP-ASSY-PLUG 21160 21160-1085 1
COIL-PULSING 59026A 59026-1135 1
SPACER 92026 92026-1292 1
PLUG-SPARK,D8EA(NGK) 92070 92070-1011 1 US
PLUG-SPARK,DR8ES(NGK) 92070A 92070-1019 1 CN
