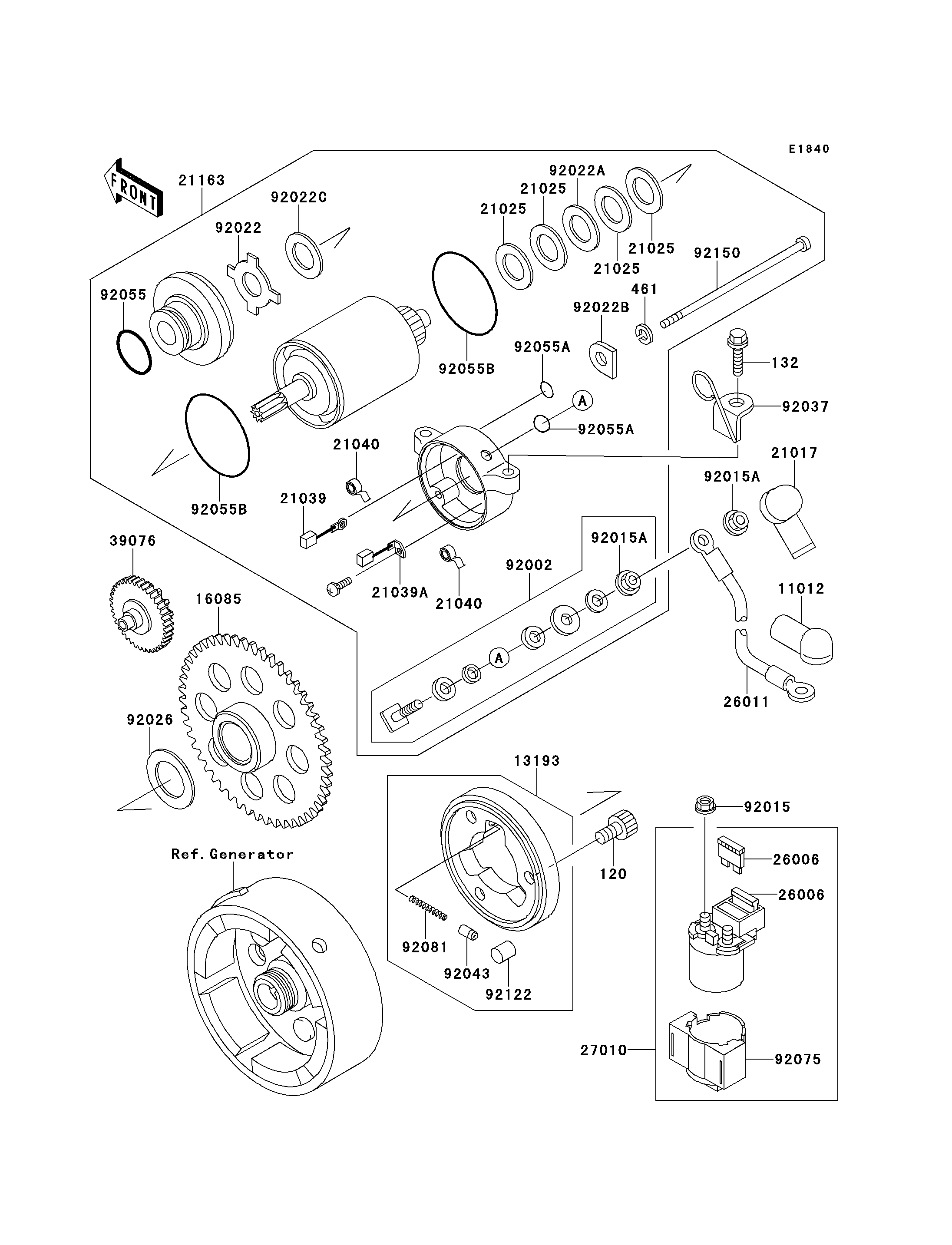

1993 Bayou 220 - Starter Motor(KLF220-A5/A6/A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
120
132
461
11012
13193
16085
21017
21025
21025
21025
21025
21039
21039A
21040
21040
21163
26006
26006
26011
27010
39076
92002
92015
92015A
92015A
92022
92022A
92022B
92022C
92026
92037
92043
92055
92055A
92055A
92055B
92055B
92075
92081
92122
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X14 120 120P0814 3
BOLT-FLANGED-SMALL 132 132Y0625 2
WASHER-SPRING,5MM 461 461F0500 2
CAP,TERMINAL 11012 11012-1354 1
CLUTCH-ASSY-ONEWAY 13193 13193-1002 1
GEAR,ONEWAY CLUTCH 16085 16085-1198 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 4
BRUSH,CARBON(+) 21039 21039-1001 1
BRUSH,CARBON(-) 21039A 21039-1056 1
SPRING-BRUSH 21040 21040-1053 2
STARTER-ELECTRIC 21163 21163-1253 1
FUSE,20A-Y 26006 26006-1051 2
WIRE-LEAD,STARTER 26011 26011-1417 1
SWITCH 27010 27010-1243 1
LIMITER,STARTER IDLE 39076 39076-1060 1
BOLT,TERMINAL 92002 92002-1819 1
NUT,FLANGED,6MM 92015 92015-1193 2
NUT,STARTER MOTOR 92015A 92015-1476 2
WASHER,THRUST SUPPORT 92022 92022-1130 1
WASHER,9.1X18X0.8 92022A 92022-1132 1
WASHER,LOCK,T=2.0 92022B 92022-1458 2
WASHER,22X12.2X0.5 92022C 92022-1714 1
SPACER,22X35.5X1.0 92026 92026-092 1
CLAMP 92037 92037-1962 1
PIN 92043 92043-132 3
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O 92055B 92055-1418 2
DAMPER,MAGNETIC SWITCH 92075 92075-1863 1
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
BOLT,STARTER 92150 92150-1817 2
