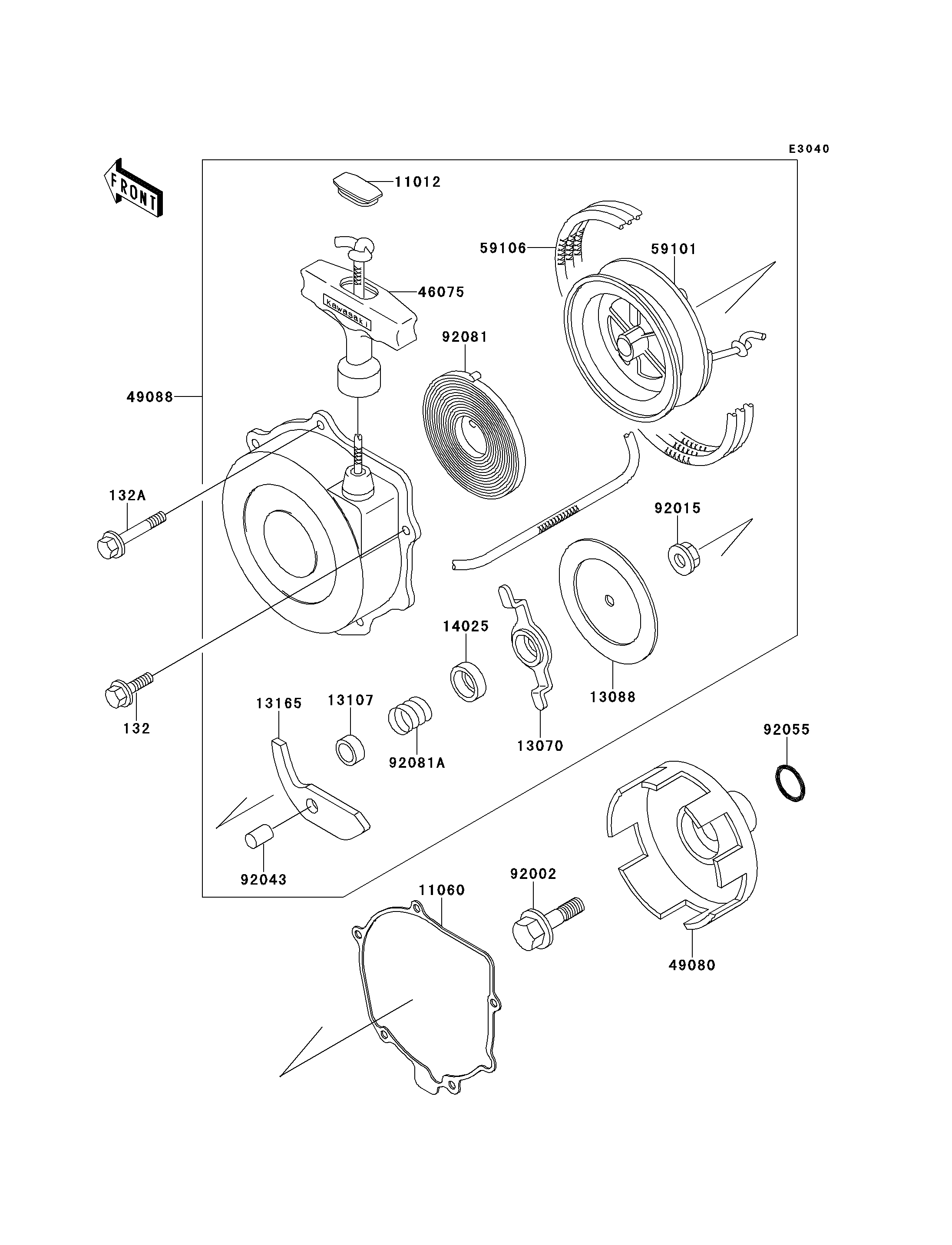

132
132A
11012
11060
13070
13088
13107
13165
14025
46075
49080
49088
59101
59106
92002
92015
92043
92055
92081
92081A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0614 4
BOLT-FLANGED-SMALL 132A 132J0680 1
CAP,RECOIL GRIP 11012 11012-1420 1
GASKET,RECOIL STARTER 11060 11060-1650 1
GUIDE,RECOIL 13070 13070-1123 1
PLATE-FRICTION,RECOIL 13088 13088-1059 1
SHAFT,RECOIL 13107 13107-1129 1
PAWL,RECOIL 13165 13165-1110 1
COVER,RECOIL 14025 14025-1966 1
GRIP,RECOIL 46075 46075-1073 1
PULLEY-STARTING 49080 49080-1051 1
STARTER-RECOIL 49088 49088-1054 1
REEL 59101 59101-1105 1
ROPE,RECOIL 59106 59106-1102 1
BOLT,FLANGED,10X40 92002 92002-1296 1
NUT,6MM 92015 92015-1464 1
PIN,RECOIL 92043 92043-1259 1
RING-O,16.8MM 92055 92055-1235 1
SPRING,RECOIL 92081 92081-1772 1
SPRING 92081A 92081-1773 1
