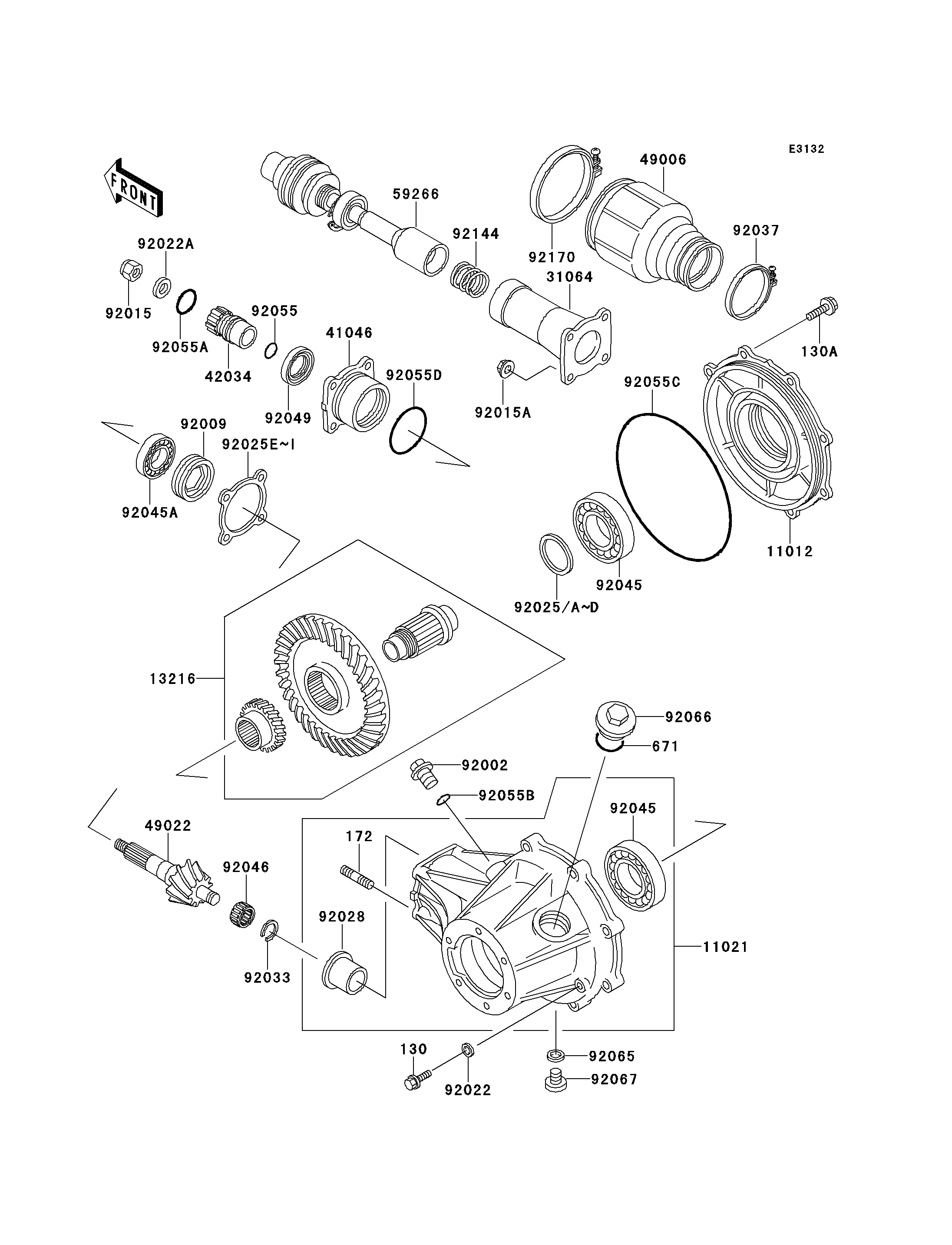

1993 Bayou 220 - Drive Shaft/Final Gear
11012
11012
11021
11021
13216
13216
31064
31064
41046
41046
42034
42034
49006
49006
49022
49022
59266
59266
92002
92002
92009
92009
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92028
92028
92033
92033
92037
92037
92045
92045
92045
92045
92045A
92045A
92046
92046
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92065
92065
92066
92066
92067
92067
130
130
130A
130A
172
172
671
671
92144
92144
92170
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP | 11012 | 11012-1593 | 1 | ||
CASE-ASSY,FRONT BEVEL | 11021 | 11021-1069 | 1 | ||
GEAR-COMP,FINAL | 13216 | 13216-1134 | 1 | ||
PIPE-COMP,FR | 31064 | 31064-1087 | 1 | ||
HOUSING-BEARING | 41046 | 41046-1084 | 1 | ||
COUPLING,DIFFERENTIAL CASE | 42034 | 42034-1078 | 1 | ||
BOOT,DRIVE SHAFT | 49006 | 49006-1240 | 1 | ||
GEAR-BEVEL,10T | 49022 | 49022-1097 | 1 | ||
JOINT-BALL,DRIVE SHAFT | 59266 | 59266-1069 | 1 | ||
BOLT,16X10 | 92002 | 92002-1238 | 1 | ||
SCREW | 92009 | 92009-1475 | 1 | ||
NUT,12MM | 92015 | 92015-1182 | 1 | ||
NUT,8MM | 92015A | 92015-1402 | 4 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
WASHER,12.3X25X3.2 | 92022A | 92022-1293 | 1 | ||
SHIM,35.3X46X1.00 | 92025 | 92025-1849 | AR | ||
SHIM,35.3X46X0.10 | 92025A | 92025-1850 | AR | ||
SHIM,35.3X46X0.15 | 92025B | 92025-1851 | AR | ||
SHIM,35.3X46X0.50 | 92025C | 92025-1856 | AR | ||
SHIM,35.3X46X0.80 | 92025D | 92025-1857 | AR | ||
SHIM,T=1.00 | 92025E | 92025-1864 | AR | ||
SHIM,T=0.10 | 92025F | 92025-1865 | AR | ||
SHIM,T=0.15 | 92025G | 92025-1866 | AR | ||
SHIM,T=0.50 | 92025H | 92025-1867 | AR | ||
SHIM,T=0.80 | 92025I | 92025-1868 | AR | ||
BUSHING | 92028 | 92028-1501 | 1 | ||
RING-SNAP,14X17.5X1.2 | 92033 | 92033-1234 | 1 | ||
CLAMP | 92037 | 92037-1523 | 1 | ||
BEARING-BALL | 92045 | 92045-1110 | 2 | ||
BEARING-BALL | 92045A | 92045-1112 | 1 | ||
BEARING-NEEDLE,K15X21X15 | 92046 | 92046-1173 | 1 | ||
SEAL-OIL | 92049 | 92049-1231 | 1 | ||
RING-O,17.5X1.5 | 92055 | 92055-022 | 1 | ||
RING-O,27MM | 92055A | 92055-1119 | 1 | ||
RING-O,ID=13.8 | 92055B | 92055-1141 | 1 | ||
RING-O,154MM | 92055C | 92055-1165 | 1 | ||
RING-O | 92055D | 92055-3018 | 1 | ||
GASKET,10.5X16X1,DRAIN PLUG | 92065 | 92065-058 | 1 | ||
PLUG | 92066 | 92066-1284 | 1 | ||
PLUG,DRAIN,10X12 | 92067 | 92067-001 | 1 | ||
BOLT-FLANGED,6X8 | 130 | 130B0608 | 1 | ||
BOLT-FLANGED | 130A | 130P0825 | 8 | ||
BOLT-STUD,8X25 | 172 | 172G0825 | 4 | ||
O RING,30MM | 671 | 671B2530 | 1 | ||
SPRING,DRIVE SHAFT | 92144 | 92144-1235 | 1 | ||
CLAMP | 92170 | 92170-1149 | 1 |
