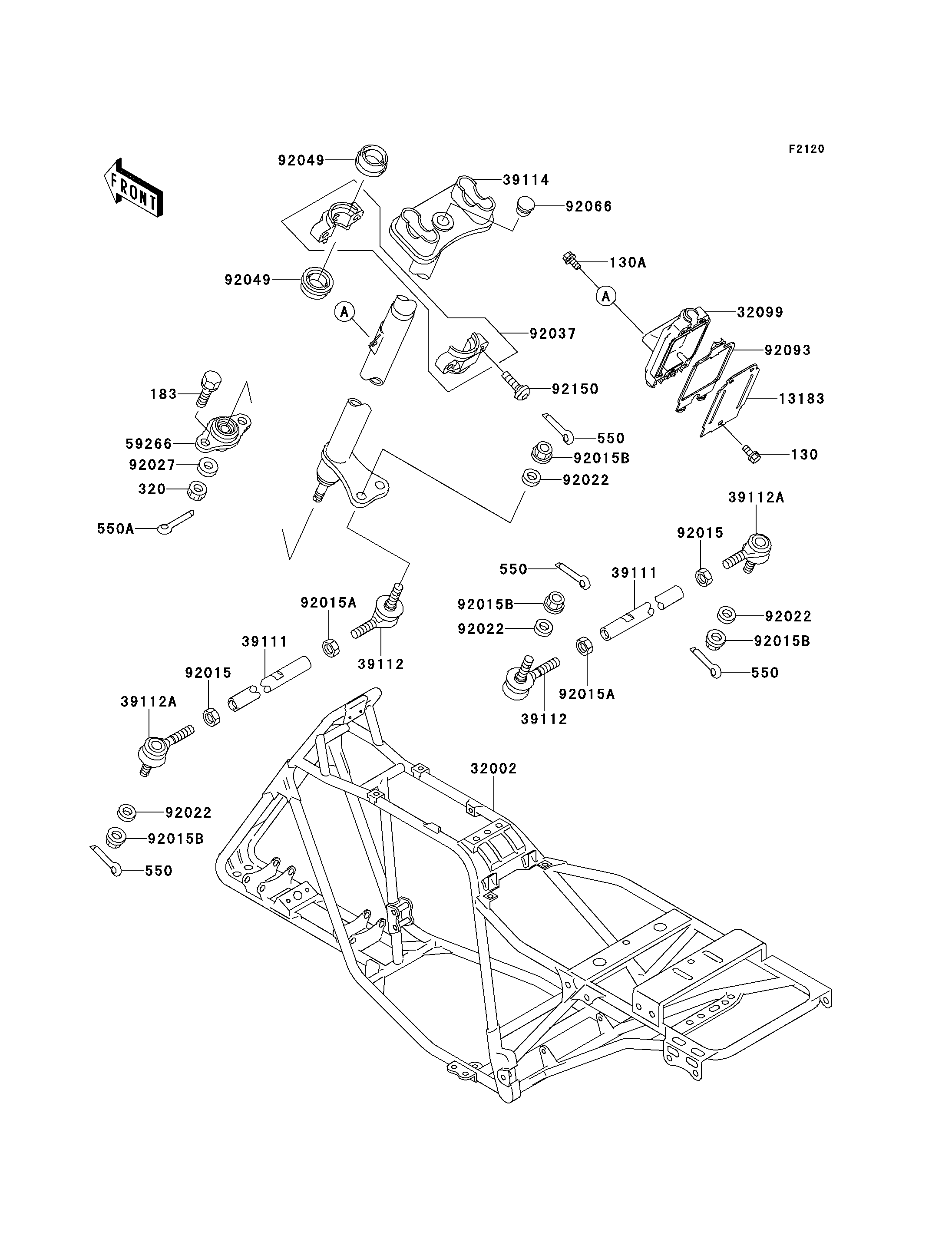

1996 Bayou 220 - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130A
183
320
550
550
550
550
550A
13183
32002
32099
39111
39111
39112
39112
39112A
39112A
39114
59266
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022
92022
92027
92037
92049
92049
92066
92093
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 3
BOLT-FLANGED,6X12 130A 130G0612 2
BOLT-UPSET-WS-SMALL 183 183G0822 2
NUT-CASTLE 320 320H1000 1
PIN-COTTER,2.0X15 550 550D2015 4
PIN-COTTER,2.5X18 550A 550D2518 1
PLATE,EQUALIZER CASE 13183 13183-1148 1
FRAME-COMP 32002 32002-1957 1
CASE,EQUALIZER 32099 32099-1101 1
ROD-TIE 39111 39111-1076 2
RODEND-TIE 39112 39112-1063 2
RODEND-TIE 39112A 39112-1064 2
SHAFT-COMP-STRG 39114 39114-1065 1
JOINT-BALL 59266 59266-1066 1
NUT,LOCK,10MM 92015 92015-1460 2
NUT,LOCK,10MM 92015A 92015-1494 2
NUT,LOCK,FLANGED,10MM 92015B 92015-1717 4
WASHER,10.5X20X1 92022 92022-239 4
COLLAR,10X21.3X7 92027 92027-1817 1
CLAMP,STEERING SHAFT 92037 92037-1975 1
SEAL-OIL,SR7 25 34 7.8 NS 92049 92049-1278 2
PLUG 92066 92066-1220 1
SEAL,EQUALIZER CASE 92093 92093-1246 1
BOLT 92150 92150-1058 2
