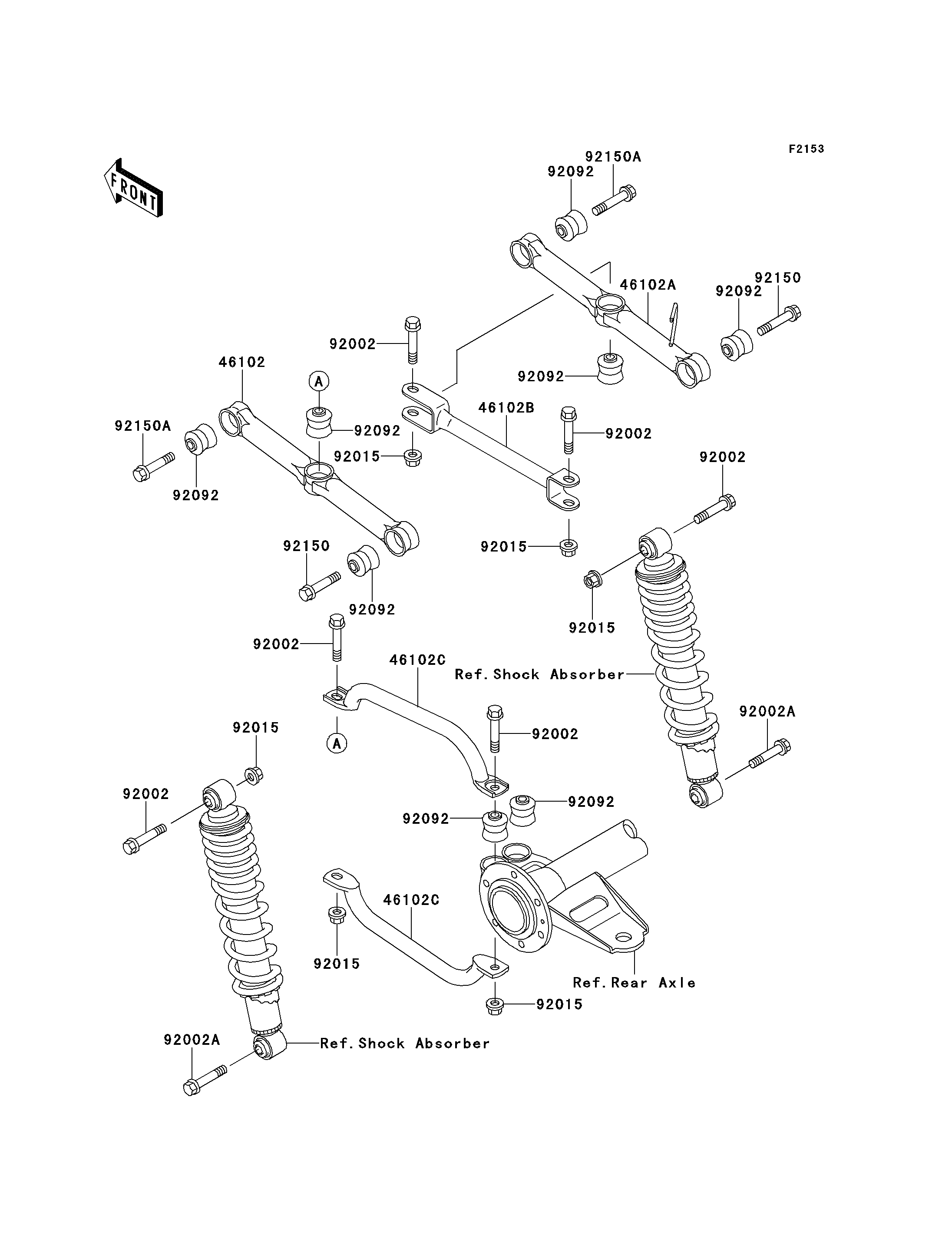

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD,SUSPENSION,RR,LH 46102 46102-1210 1
ROD,SUSPENSION,RR,RH 46102A 46102-1211 1
ROD,SUSPENSION,RIGHT CROSS 46102B 46102-1213 1
ROD,SUSPENSION,LEFT CROSS 46102C 46102-1330 2
BOLT,FLANGED,10X53.5 92002 92002-1529 6
BOLT,FLANGED,10X49 92002A 92002-1562 2
NUT,LOCK,10MM 92015 92015-1597 6
BUSHING-RUBBER 92092 92092-1064 8
BOLT,FLANGED,10X49 92150 92150-1048 2
BOLT,FLANGED,10X52 92150A 92150-1070 2
