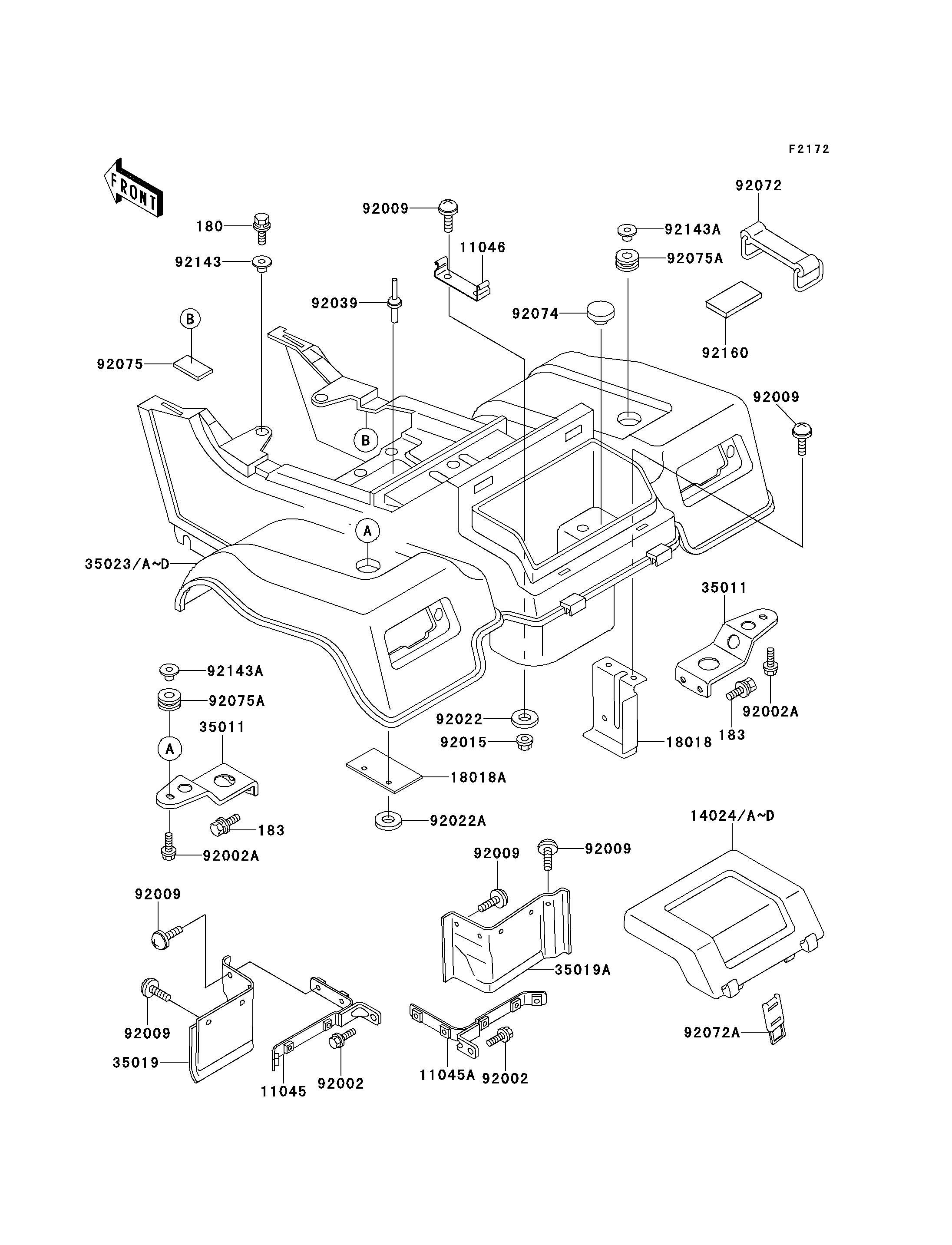

1996 Bayou 220 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
180
183
183
11045
11045A
11046
14024B
14024D
18018
18018A
35011
35011
35019
35019A
35023B
35023D
92002
92002
92002A
92002A
92009
92009
92009
92009
92009
92009
92015
92022
92022A
92039
92072
92072A
92074
92075
92075A
92075A
92143
92143A
92143A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180D0618 2
BOLT-UPSET-WS-SMALL 183 183J0814 4
BRACKET,REAR FLAP,LH 11045 11045-1731 1
BRACKET,REAR FLAP,RH 11045A 11045-1732 1
BRACKET,TOOL BAND 11046 11046-1451 1
COVER,REAR FENDER,F.GREEN 14024B 14024-1477-59 1
COVER,REAR FENDER,F.RED 14024D 14024-1477-6L 1
PLATE-HEAT GUARD 18018 18018-1075 1
PLATE-HEAT GUARD 18018A 18018-1079 1
STAY,REAR FENDER 35011 35011-1363 2
FLAP,RR,LH 35019 35019-1253 1
FLAP,RR,RH 35019A 35019-1254 1
FENDER-REAR,F.GREEN 35023B 35023-1196-59 1
FENDER-REAR,F.RED 35023D 35023-1196-6L 1
BOLT,6X14 92002 92002-1351 2
BOLT,FLANGED,8X25 92002A 92002-1591 2
SCREW,6X14 92009 92009-1288 14
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
WASHER,6.5X20X1.6 92022 92022-1804 2
WASHER 92022A 92022-4017 2
RIVET,POP 92039 92039-4006 2
BAND 92072 92072-1085 1
BAND 92072A 92072-1227 2
PLUG,11X3.2 92074 92074-038 1
DAMPER 92075 92075-1830 2
DAMPER 92075A 92075-1898 2
COLLAR,L=6.5 92143 92143-1025 2
COLLAR,MUFFLER FITTING 92143A 92143-1069 2
DAMPER,TOOL KIT 92160 92160-1076 1
