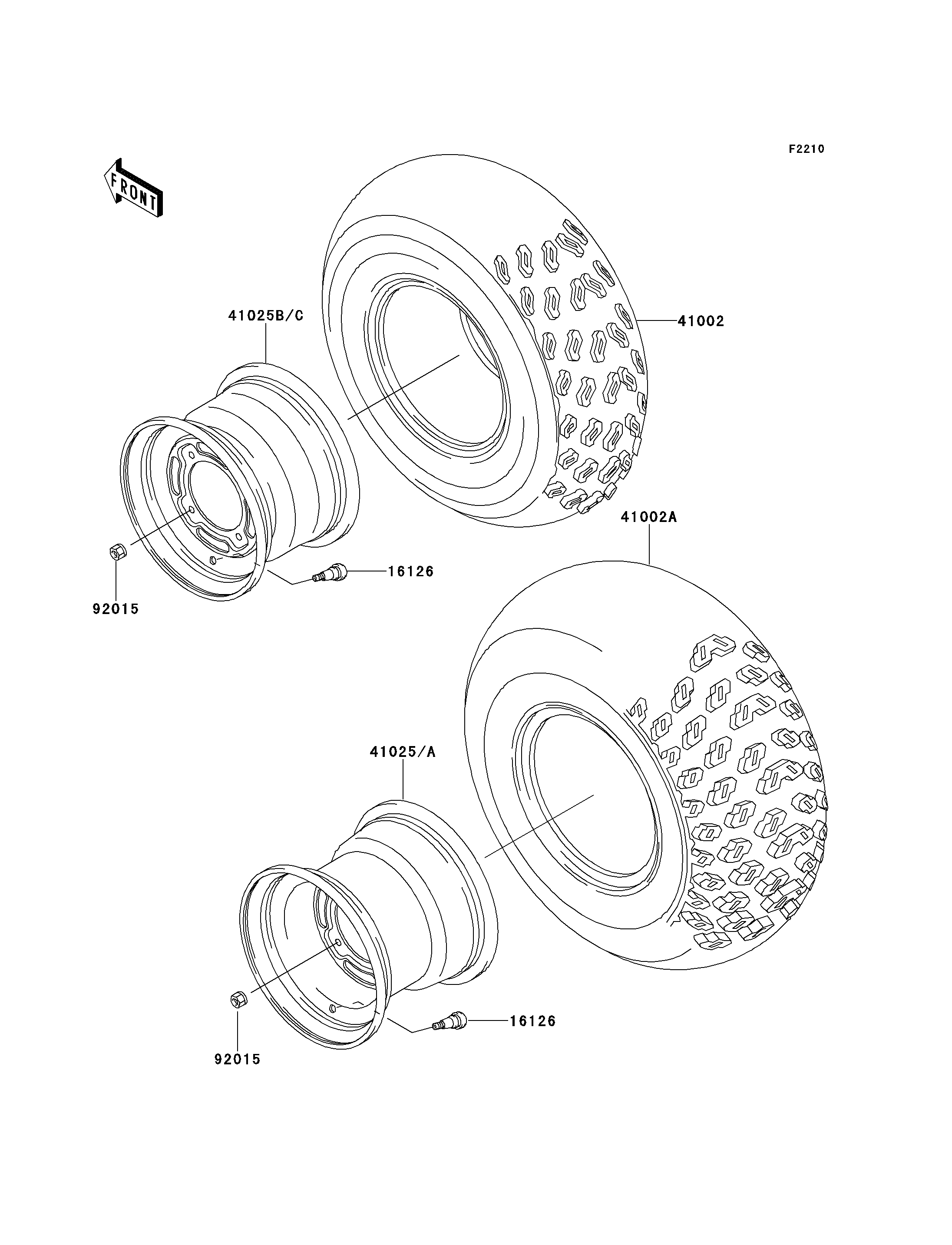

16126
16126
41002
41002A
41025
41025B
92015
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-4001 4
TIRE,FR,AT21X8-9,KT856(D) 41002 41002-1650 2
TIRE,RR,AT22X10-10,KT857(D) 41002A 41002-1651 2
RIM,RR,10X8.5,SILVER NO.40 41025 41025-1210-5A 2
RIM,FR,9X6.0,SILVER NO.40 41025B 41025-1211-5A 2
NUT,LOCK,10MM 92015 92015-1808 16
