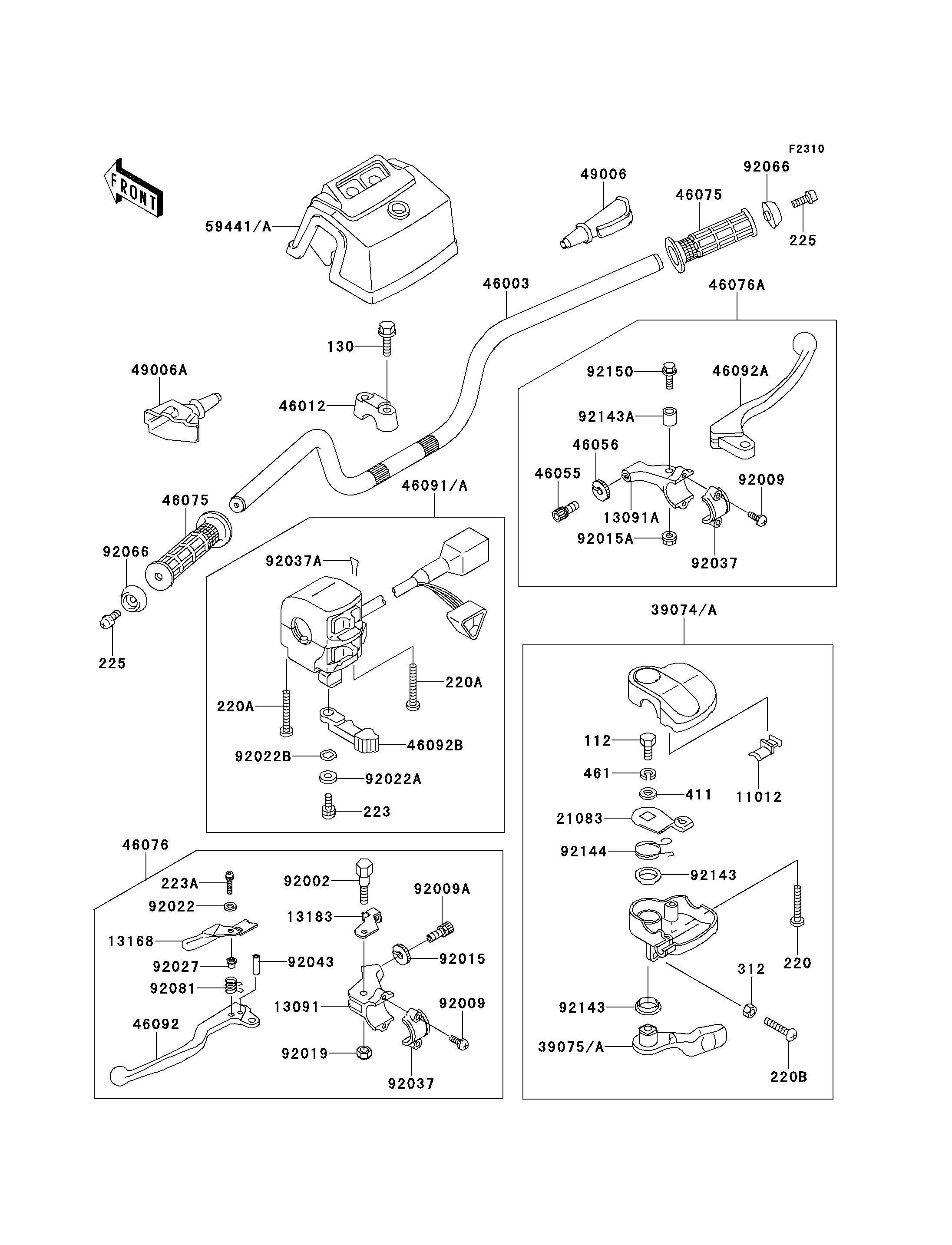

1993 Bayou 220 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
13091
13091
13091A
13091A
13168
13168
13183
13183
21083
21083
39074
39074
39075
39075
46003
46003
46012
46012
46055
46055
46056
46056
46075
46075
46075
46075
46076
46076
46076A
46076A
46091
46091
46092
46092
46092A
46092A
46092B
46092B
49006
49006
49006A
49006A
59441
59441
92002
92002
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92019
92019
92022
92022
92022A
92022A
92022B
92022B
92027
92027
92037
92037
92037
92037
92037A
92037A
92043
92043
92066
92066
92066
92066
112
112
130
130
220
220
220A
220A
220A
220A
220B
220B
223
223
223A
223A
225
225
225
225
312
312
411
411
461
461
92081
92081
92143
92143
92143
92143
92143A
92143A
92144
92144
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1425 1
HOLDER 13091 13091-1349 1
HOLDER,BRAKE LEVER,RH 13091A 13091-1541 1
LEVER,LOCK 13168 13168-1346 1
PLATE,LOCK 13183 13183-1076 1
ARM 21083 21083-1068 1
LEVER-ASSY-THROTTLE 39074 39074-1053 1
LEVER-THROTTLE 39075 39075-1056 1
HANDLE 46003 46003-1291 1
HOLDER-HANDLE 46012 46012-1168 2
SCREW,CABLE ADJUST,8MM 46055 46055-003 1
NUT,CABLE ADJUST LOCK 46056 46056-005 1
GRIP 46075 46075-4003 2
LEVER-ASSY-GRIP,LH 46076 46076-1143 1
LEVER-ASSY-GRIP,RH 46076A 46076-1157 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1450 1
LEVER-GRIP 46092 46092-1107 1
LEVER-GRIP,FRONT BRAKE 46092A 46092-1133 1
LEVER-GRIP,CHOKE 46092B 46092-1149 1
BOOT,LEVER HOLDER 49006 49006-1017 1
BOOT,CLUTCH LEVER 49006A 49006-1057 1
COVER-HANDLE,BLACK 59441 59441-1076-6D 1
BOLT,5MM 92002 92002-1447 1
SCREW,5X18 92009 92009-1367 4
SCREW,CABLE ADJUST,8MM 92009A 92009-1435 1
NUT,CABLE ADJUST LOCK 92015 92015-1596 1
NUT,LOCK,5MM 92015A 92015-1719 1
NUT,LOCK,5MM 92019 92019-014 1
WASHER,4MM 92022 92022-1647 1
WASHER,5MM 92022A 92022-1837 1
WASHER,WAVE,5MM 92022B 92022-1838 1
COLLAR,RETURN SPRING 92027 92027-1336 1
CLAMP,LEVER HOLDER 92037 92037-1621 2
CLAMP,CLIP 92037A 92037-1836 1
PIN,SPRING,3X16 92043 92043-1268 1
PLUG,HANDLE 92066 92066-1191 2
BOLT-UPSET 112 112D0614 1
BOLT-FLANGED,8X55 130 130G0855 4
SCREW-PAN-CROS 220 220C0525 2
SCREW-PAN-CROS 220A 220C0535 2
SCREW-PAN-CROS,6X30,BLACK 220B 220C0630 1
SCREW-PAN-WS-CROS 223 223C0512 1
SCREW-PAN-WS-CROS 223A 223D0420 1
SCREW-PAN-WSP-CROS,6X20 225 225C0620 2
NUT-HEX,6MM,BLACK 312 312C0600 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
SPRING,LOCK RETURN 92081 92081-1358 1
COLLAR 92143 92143-1138 2
COLLAR 92143A 92143-1216 1
SPRING 92144 92144-1176 1
BOLT,LEVER SET 92150 92150-1102 1
