Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

180
180
322
322
56040
56040A
92160
92160
92170
92170

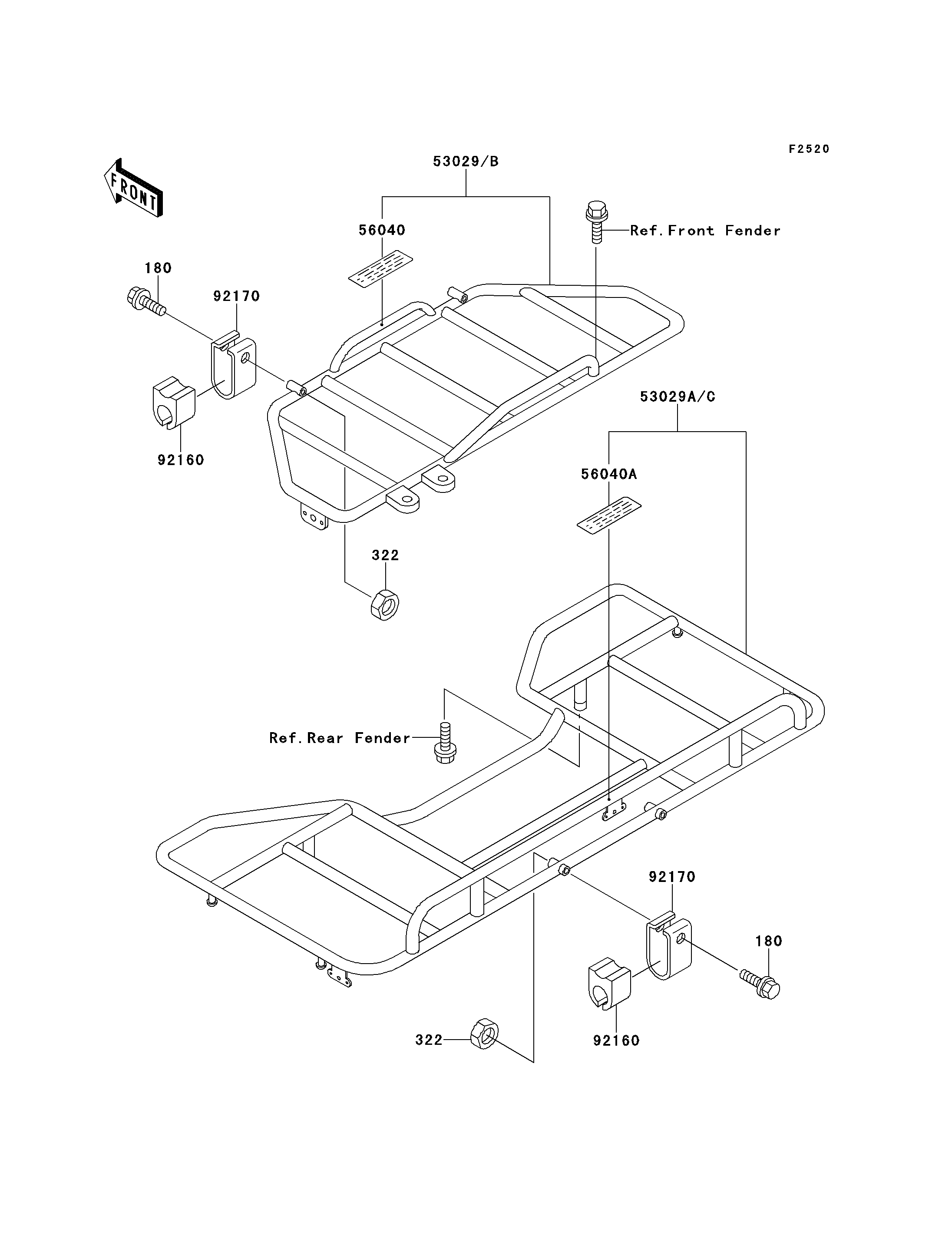

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180J0640 4
NUT-CAP,6MM,BLACK 322 322C0600 4
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1264 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1265 1
DAMPER 92160 92160-1112 4
CLAMP 92170 92170-1075 4
CARRIER,FR 53029 53029-1113 1 US
CARRIER,RR 53029A 53029-1114 1 US
CARRIER,FR 53029B 53029-1118 1 CN
CARRIER,RR 53029C 53029-1119 1 CN
