Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

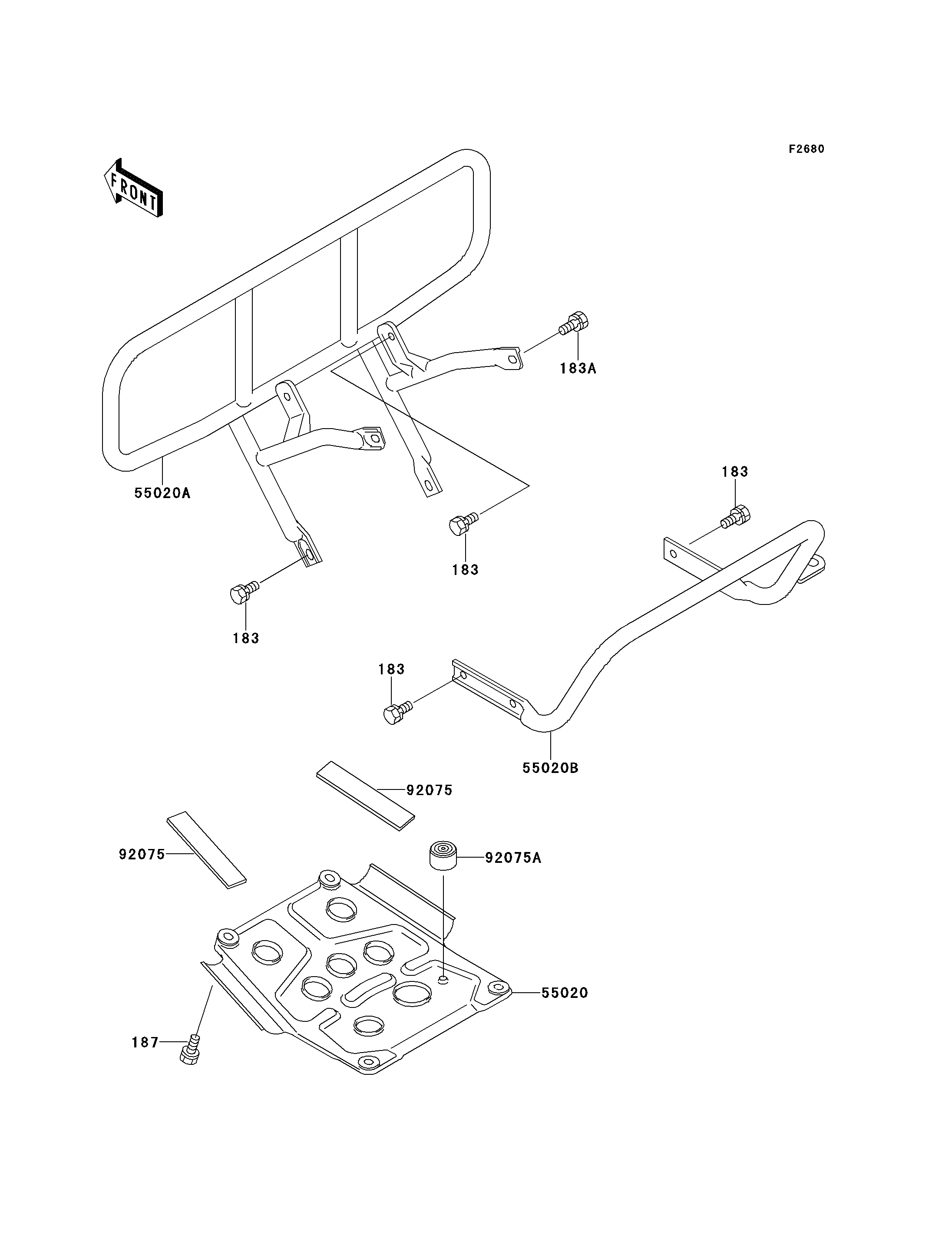

183
183
183
183
183A
187
55020
55020A
55020B
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS-SMALL 183 183J0814 7
BOLT-UPSET-WS-SMALL 183A 183J0818 2
BOLT-UPSET-WSP 187 187D0614 2
GUARD,ENGINE 55020 55020-1271 1
GUARD,FR 55020A 55020-1272 1
GUARD,RR 55020B 55020-1273 1
DAMPER 92075 92075-1829 2
DAMPER 92075A 92075-1896 1
