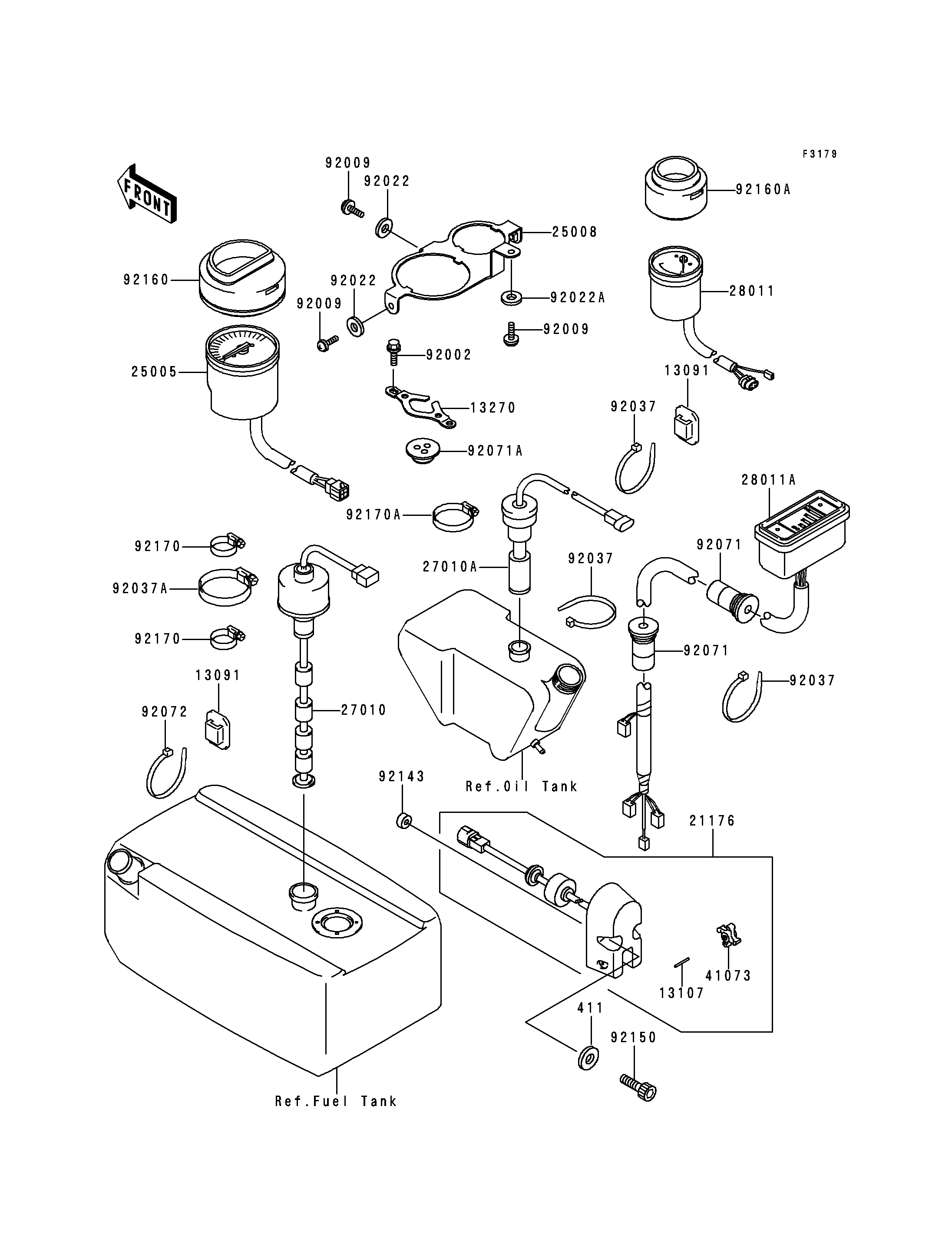

1998 900 STX - Meters

DOWNLOAD PDF
SELECT A NEW PART
411
13091
13091
13107
13270
21176
25005
25008
27010
27010A
28011
28011A
41073
92002
92009
92009
92009
92022
92022
92022A
92037
92037
92037
92037A
92071
92071
92071A
92072
92143
92150
92160
92160A
92170
92170
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 411 411S0600 2
HOLDER,BAND 13091 13091-3764 5
SHAFT 13107 13107-3754 1
PLATE,GROMMET 13270 13270-3737 1
SENSOR,SPEEDOMETER 21176 21176-3724 1
SPEEDOMETER 25005 25005-3702 1
BRACKET-METER,TACHO&TRIM 25008 25008-3710 1
SWITCH,FUEL LEVEL 27010 27010-3727 1
SWITCH,OIL LEVEL 27010A 27010-3748 1
METER,TRIM 28011 28011-3717 1
METER,FUEL 28011A 28011-3721 1
WHEEL-ASSY,PADDLE 41073 41073-3701 1
BOLT,6X20 92002 92002-3755 2
SCREW,6X18 92009 92009-3805 4
WASHER,6.5X16X1 92022 92022-1143 3
WASHER,6.5X20X1.5 92022A 92022-3710 1
CLAMP 92037 92037-1173 3
CLAMP 92037A 92037-3009 1
GROMMET 92071 92071-3795 2
GROMMET 92071A 92071-3797 1
BAND 92072 92072-3778 4
COLLAR,6.2X16X7.5 92143 92143-3769 2
BOLT,SOCKET,6X25 92150 92150-3823 2
DAMPER,TACHOMETER 92160 92160-3829 1
DAMPER,TRIM METER 92160A 92160-3830 1
CLAMP 92170 92170-3718 2
CLAMP 92170A 92170-3734 1
