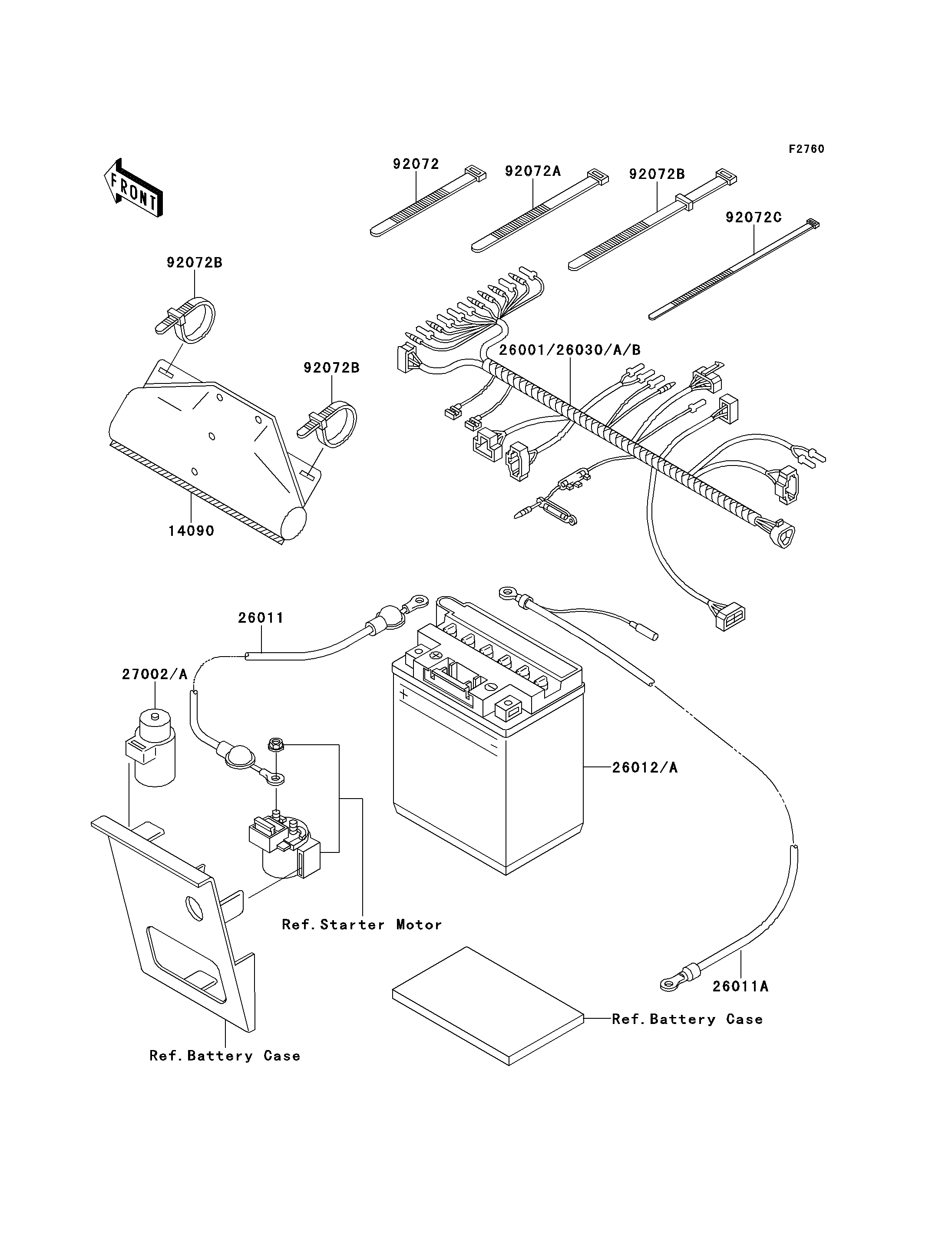

14090
26011
26011A
27002
92072A
92072B
92072B
92072B
92072C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,COUPLER 14090 14090-1611 1
WIRE-LEAD,BATTERY(+) 26011 26011-1398 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1558 1
RELAY-ASSY 27002 27002-1051 1
BAND,L=149 92072A 92072-031 2
BAND,L=186 92072B 92072-056 3
BAND,L=188 92072C 92072-1239 8
HARNESS,MAIN 26001 26001-1858 1 CN
BATTERY,12V 11AH,YB10A-A2 26012 26012-1229 1 US
BATTERY,YB14A-A2,12V 14AH 26012A 26012-1271 1 CN
HARNESS,MAIN 26030 26030-1061 1 US
BAND,L=123 92072 92072-030 2 CN
BAND,L=123 92072 92072-030 4 US
