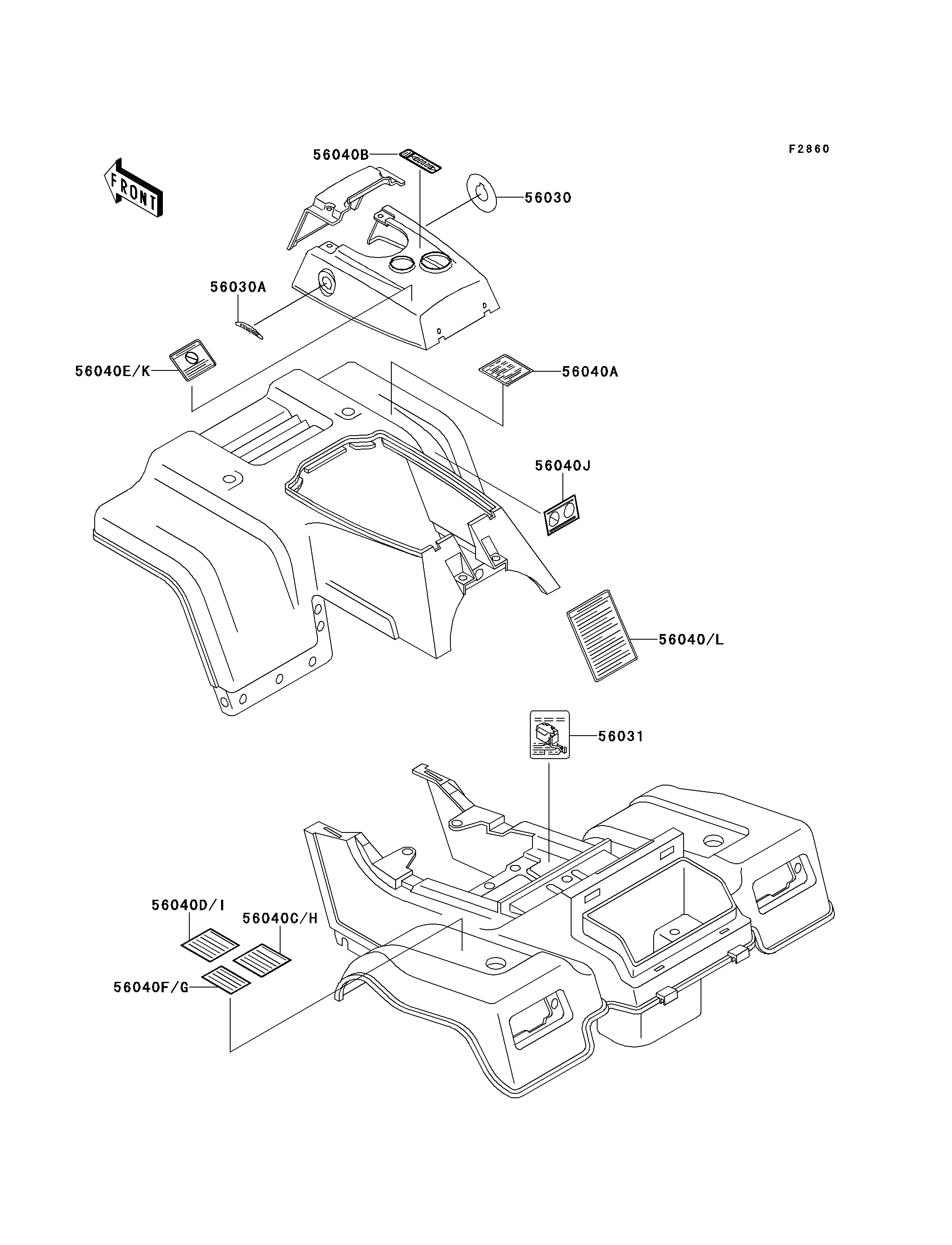

56030
56030A
56031
56040
56040A
56040B
56040C
56040D
56040E
56040F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,IGNITION SWITCH 56030 56030-1086 1
LABEL,REVERSE 56030A 56030-1102 1
LABEL-MANUAL,BATTERY VENT 56031 56031-1533 1
LABEL-WARNING,SERIOUS INJURY 56040 56040-1256 1
LABEL-WARNING,TRANSPORT 56040A 56040-1261 1
LABEL-WARNING,SHIFT PATTERN 56040B 56040-1262 1
LABEL-WARNING,TIRE PRESSURE 56040C 56040-1272 1
LABEL-WARNING,LOAD 56040D 56040-1273 1
LABEL-WARNING,UNDER 16 56040E 56040-1276 1
LABEL-WARNING,NO PASSENGER 56040F 56040-1277 1
LABEL-WARNING,NO PASSENGER 56040G 56040-1280 1 CN
LABEL-WARNING,TIRE PRESSURE 56040H 56040-1281 1 CN
LABEL-WARNING,LOAD CAPACITY 56040I 56040-1282 1 CN
LABEL-WARNING,TRANSPORT 56040J 56040-1283 1 CN
LABEL-WARNING,AGE 56040K 56040-1325 1 CN
LABEL-WARNING,GENERAL 56040L 56040-1326 1 CN
