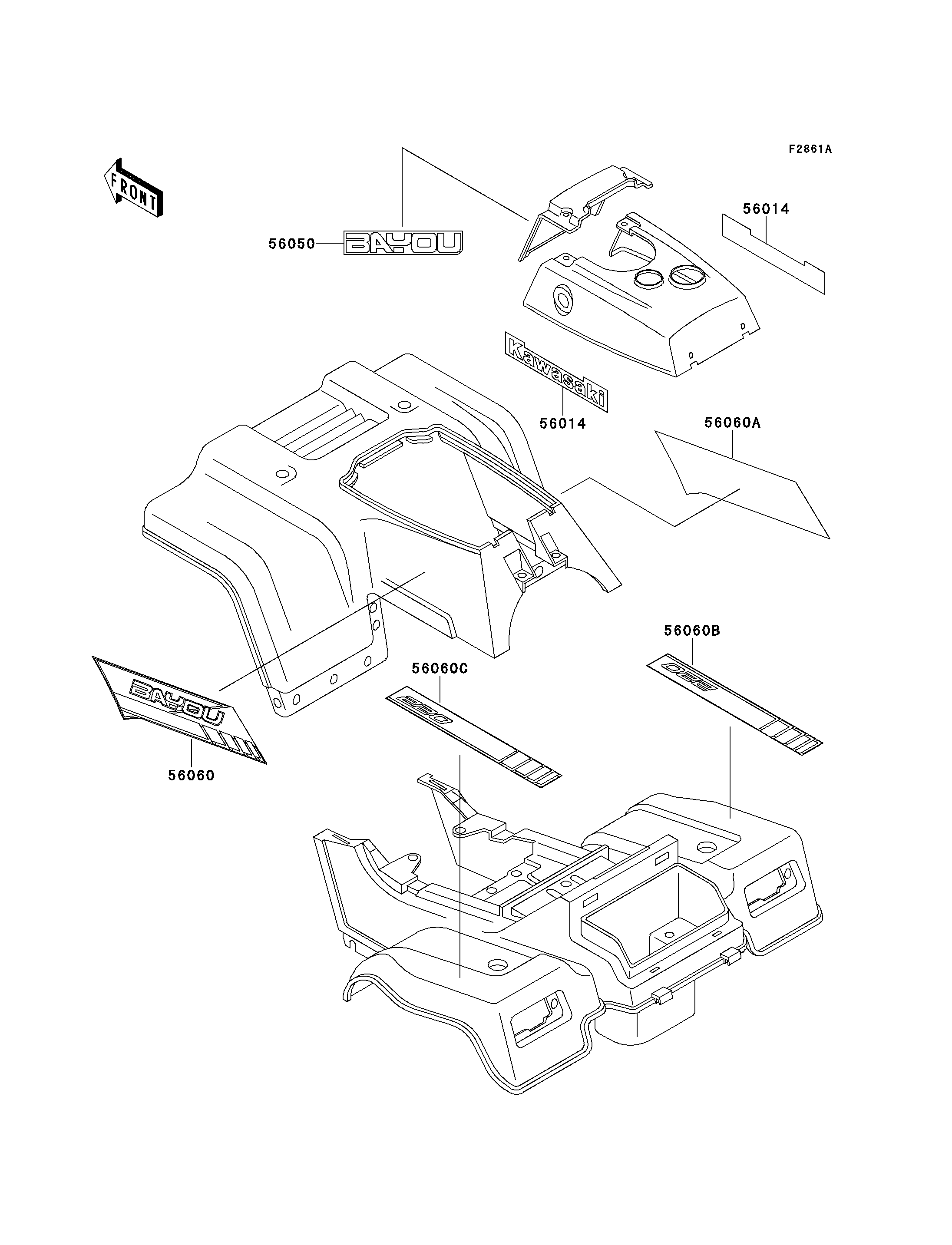

56014
56014
56050
56060
56060A
56060B
56060C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,KAWASAKI,FOR BLACK 56014 56014-1266 2
MARK,BAYOU 56050 56050-1861 1
PATTERN,FR FENDER,LH 56060 56060-1293 1
PATTERN,FR FENDER,RH 56060A 56060-1294 1
PATTERN,RR FENDER,RH 56060B 56060-1295 1
PATTERN,RR FENDER,LH 56060C 56060-1296 1
