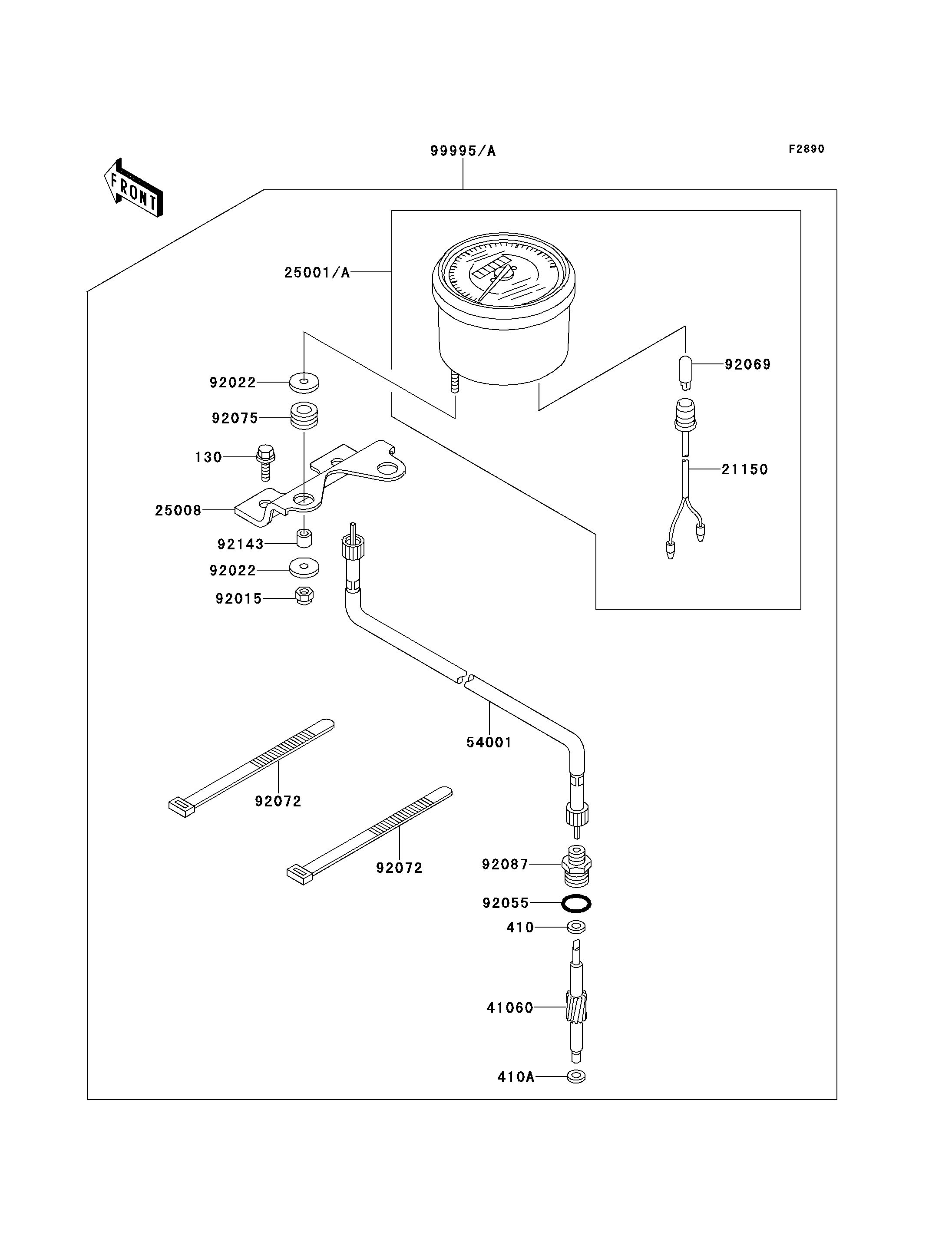

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130J0812 | 2 | ||
WASHER-PLAIN-SMALL,5MM | 410 | 410B0500 | 1 | ||
WASHER-PLAIN-SMALL,6MM | 410A | 410B0600 | 1 | ||
CORD-ASSY,SPEEDOMETER | 21150 | 21150-1054 | 1 | ||
BRACKET-METER | 25008 | 25008-1149 | 1 | ||
GEAR-METER SCREW | 41060 | 41060-1117 | 1 | ||
CABLE-SPEEDOMETER | 54001 | 54001-1139 | 1 | ||
NUT,LOCK,5MM | 92015 | 92015-1221 | 2 | ||
WASHER,5.5X20X1.2 | 92022 | 92022-1405 | 4 | ||
RING-O,ID=13.8 | 92055 | 92055-1141 | 1 | ||
BULB,12V 3.4W | 92069 | 92069-1007 | 1 | ||
BAND,L=123 | 92072 | 92072-030 | 2 | ||
DAMPER | 92075 | 92075-1409 | 2 | ||
BUSHING-METER GEAR | 92087 | 92087-1054 | 1 | ||
COLLAR,5.5X10X8.5 | 92143 | 92143-1235 | 2 | ||
METER-ASSY,SPEED,MPH | 25001 | 25001-1723 | 1 | US | |
METER-ASSY,SPEED,KPH | 25001A | 25001-1725 | 1 | CN | |
KIT.,METER,MPH | 99995 | 99995-1003 | 1 | US | |
KIT.,METER,KPH | 99995A | 99995-1004 | 1 | CN |
