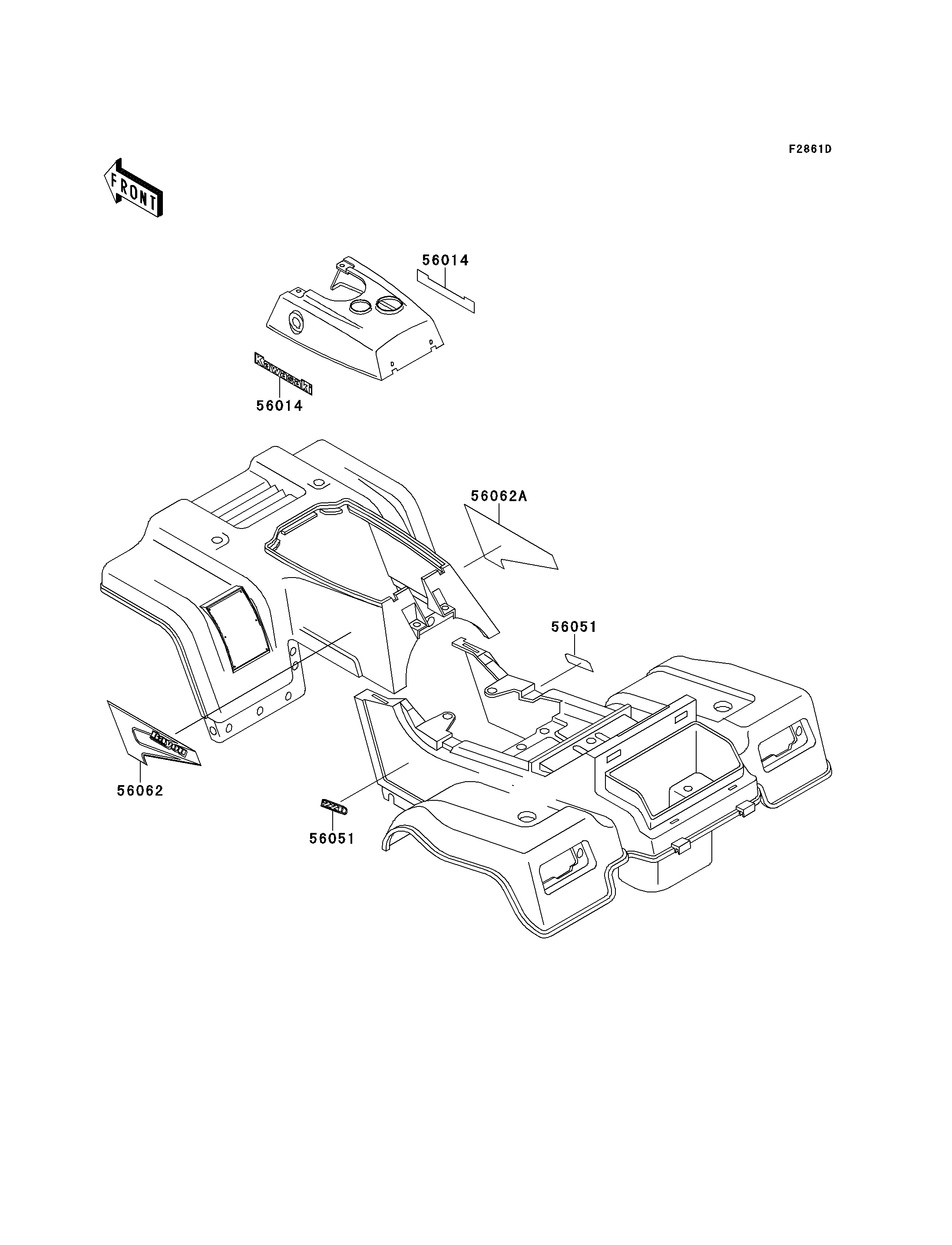

56014
56014
56051
56051
56062
56062A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FR FENDER COVER,KAWASAKI 56014 56014-1368 2
MARK,RR FENDER,220 56051 56051-1844 2
PATTERN,FR FENDER,LH 56062 56062-1481 1
PATTERN,FR FENDER,RH 56062A 56062-1482 1
