Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

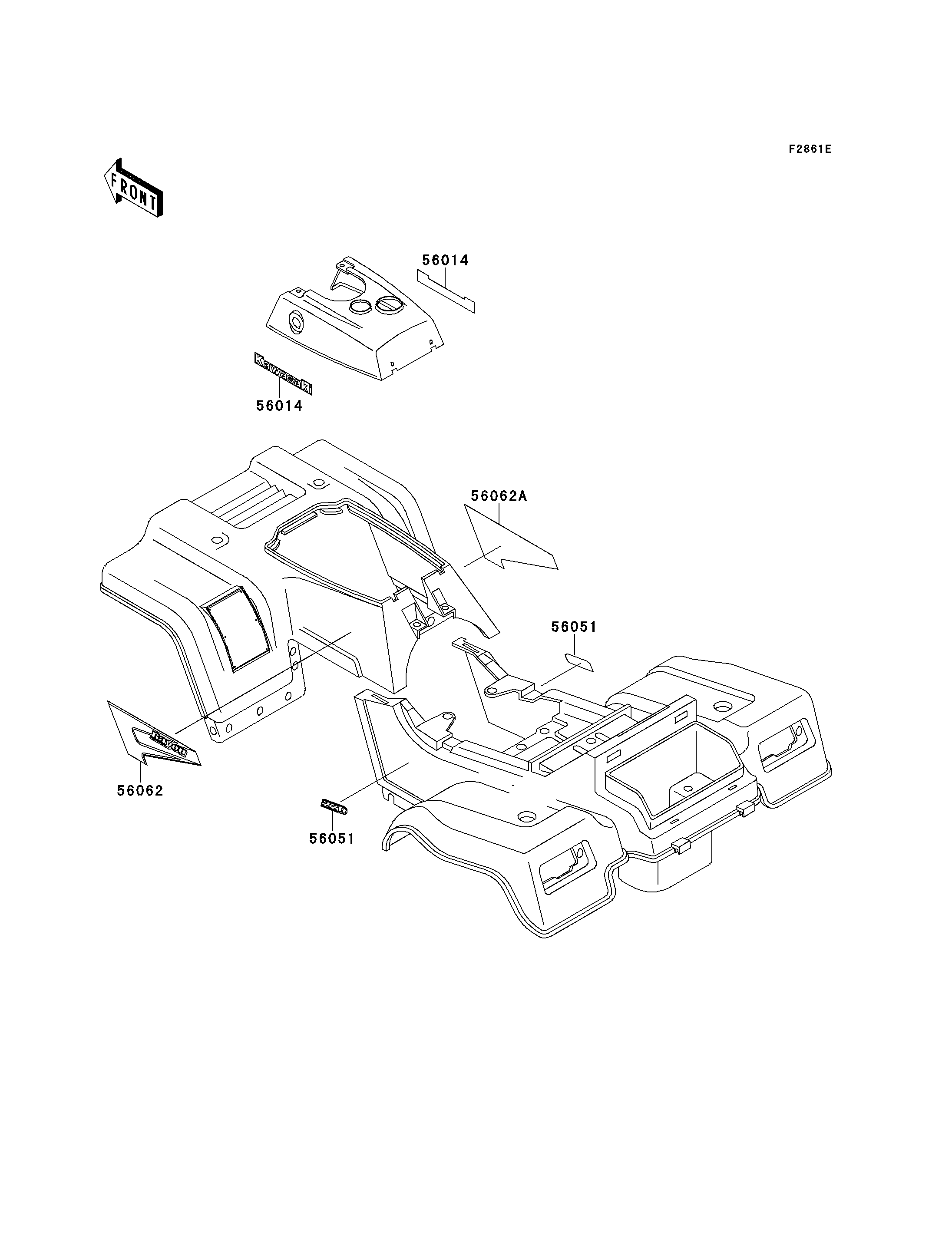

56014
56014
56051
56051
56062
56062A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FR FENDER COVER,KAWASAKI 56014 56014-1369 2
MARK,RR FENDER,220 56051 56051-1845 2
PATTERN,FR FENDER,LH 56062 56062-1483 1
PATTERN,FR FENDER,RH 56062A 56062-1484 1
