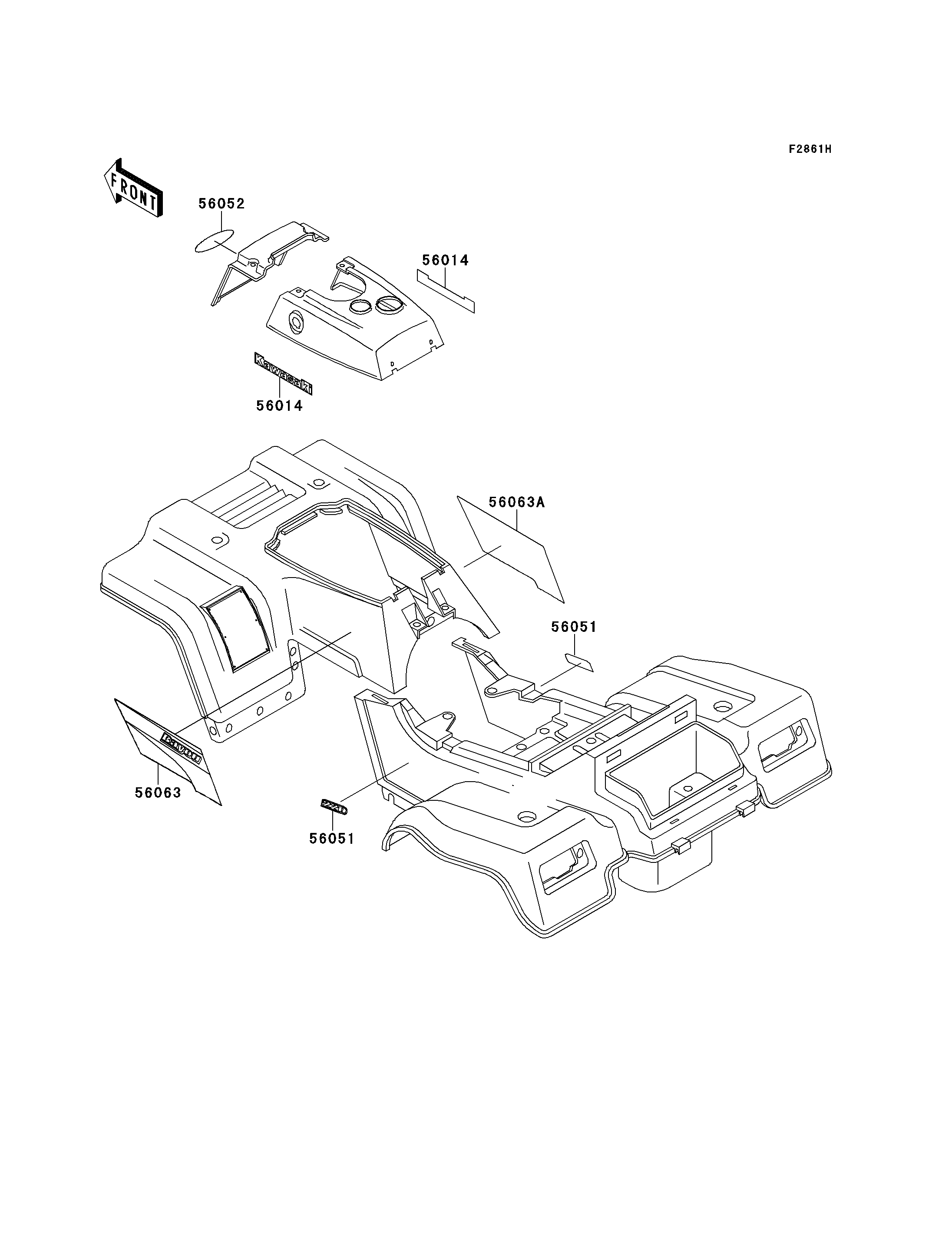

56014
56014
56051
56051
56052
56063
56063A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FR FENDER COVER,KAWASAKI 56014 56014-1368 2
MARK,RR FENDER,220 56051 56051-1844 2
MARK,KAWASAKI 56052 56052-1259 1
PATTERN,FR FENDER,LH 56063 56063-1781 1
PATTERN,FR FENDER,RH 56063A 56063-1782 1
