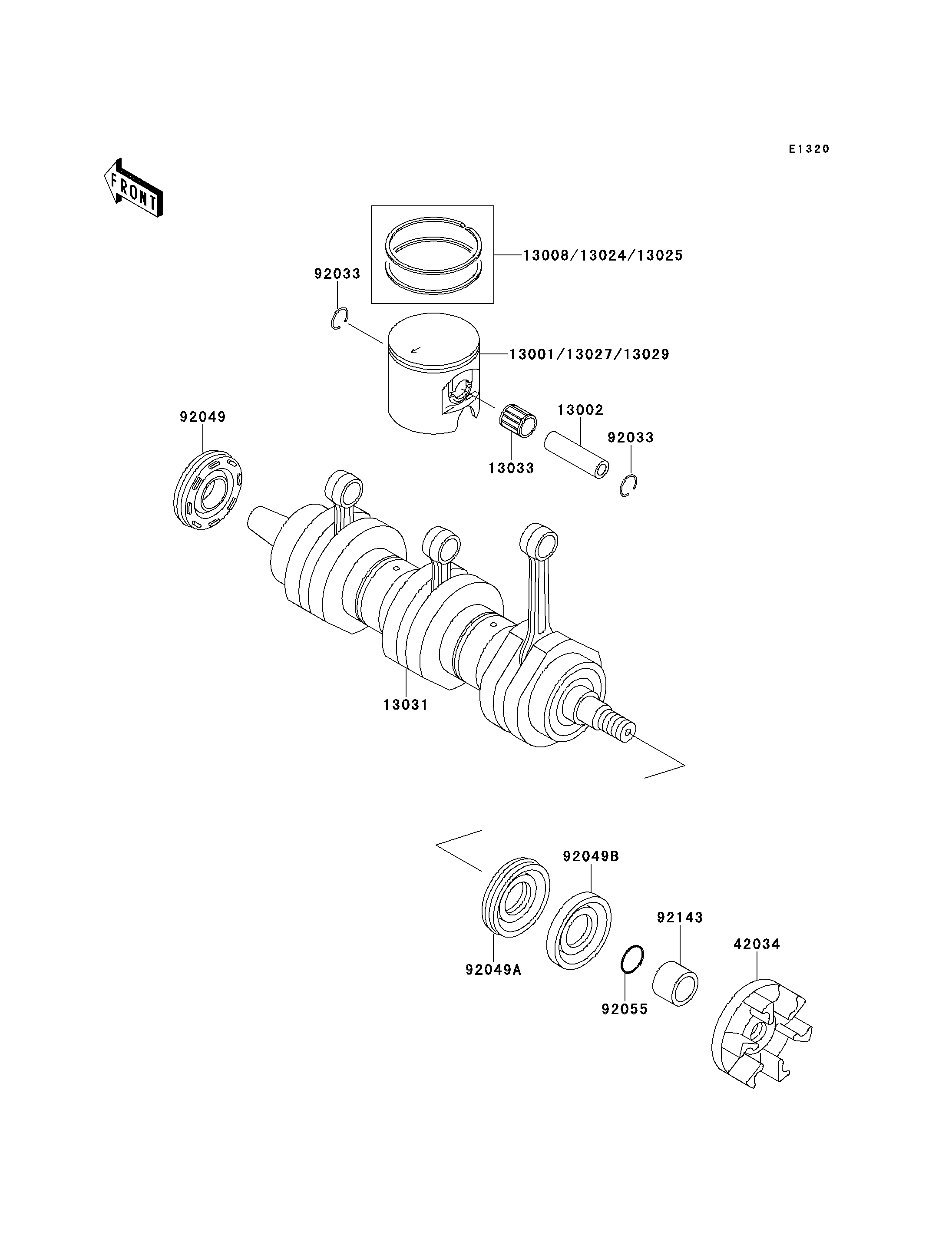

2000 900 STX - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
13001
13002
13008
13024
13025
13027
13029
13031
13033
42034
92033
92033
92049
92049A
92049B
92055
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-3720 3
PIN-PISTON 13002 13002-3705 3
RING-SET-PISTON,STD 13008 13008-3709 3
RING-SET-PISTON LL,O/S,1.00 13024 13024-3707 AR
RING-SET-PISTON L,O/S,0.50 13025 13025-3707 AR
PISTON-ENGINE LL,O/S,1.00 13027 13027-3712 AR
PISTON-ENGINE L,O/S,0.50 13029 13029-3712 AR
CRANKSHAFT-COMP 13031 13031-3732 1
BEARING-SMALL END 13033 13033-3702 3
COUPLING 42034 42034-3709 1
RING-SNAP 92033 92033-1207 6
SEAL-OIL,FWJ7307210ZS 92049 92049-3713 1
SEAL-OIL 92049A 92049-3715 1
SEAL-OIL 92049B 92049-3716 1
RING-O,20.8X2.4 92055 92055-3740 1
COLLAR 92143 92143-3745 1
